New Zealand (English)Main circuit protection in residential distribution systems
Sprache

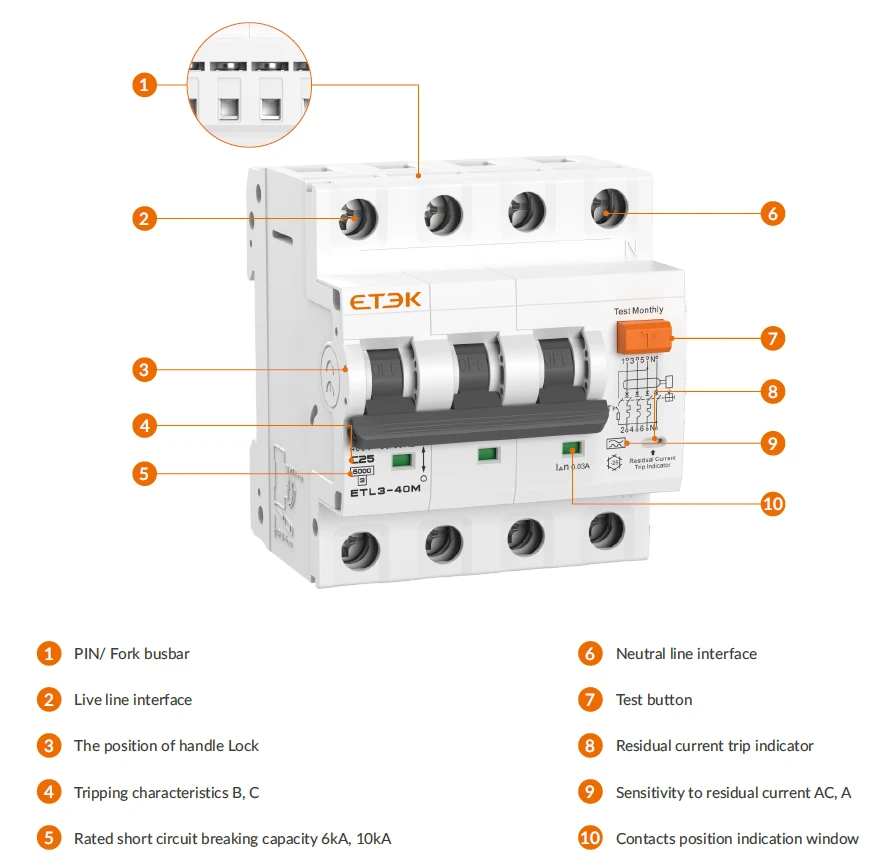

ETL3-40M Residual Current Circuit Breakers with Overcurrent Protection (RCBO) provide combined protection against overload, short-circuit and earth leakage faults. Designed for 400/415 V (3P+N) power systems with rated currents up to 40A, they are suitable for both residential and industrial installations.
The range offers breaking capacities of 6 kA and 10 kA and is equipped with a reliable electromagnetic trip unit for fast fault clearance.

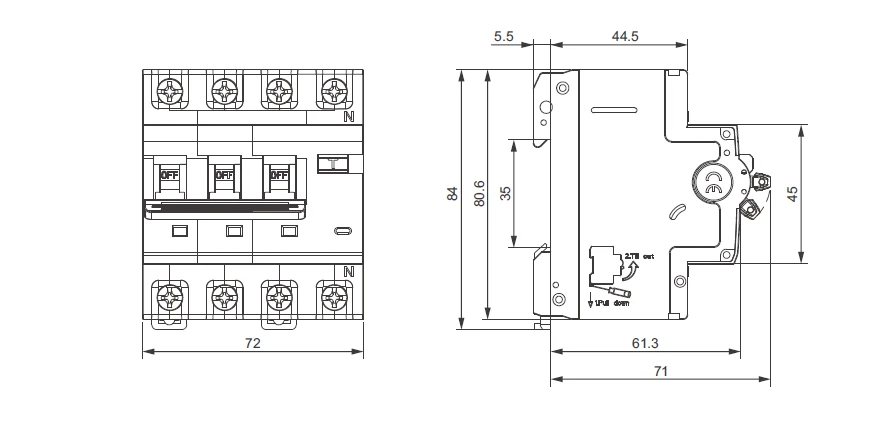

| Technical Data | |
| Standard | IEC/EN61009-1 |
| Type of trip | Electro-magnetic type |
| Residual current type | AC type-AC residual current |
| A type -residual AC and pulsating DC current | |
| No.of poles | 3P+N |
| Insulation voltage(Ui) | 500V |
| Rated voltage(Ue) | 400/415V |
| Rated currents(In) | 6,10,16,20,25,32,40A |
| Rated sensitivity currents(I△n) | 30,100,300mA |
| Residual curent off-time under(I△n) | <0.3s |
| Rated residual making and breaking capacity (I△m) | 500A |
| Rated frequency | 50/60Hz |
| Rated short-circuit capacity (lcn) | ETL3-40M:6kA |
| ETL3-40MH:10kA | |
| Energy limiting class | 3 |
| Rated impulse withstand voltage(Uimp)(1.2/50μs) | 4kV |
| Dielectric test voltage | 2KV (50/60Hz,1 min.) |
| Fire resistance (glow-wire test) | 960±15℃ (Enclosure) |
| 650±10℃ (Handle) | |
| Thermal tripping characteristics | 1.13In No tripping within an hour |
| 1.45In Tripping within an hour | |
| Instantaneous tripping characteristics | B:3In-5In; C:5In-10ln |
| Electrical life | 4,000 Cycles |
| Mechanical life | 8,000 Cycles |
| Contact position indicator | green OFF/red ON |
| Ground fault indicator | White:Normal |
| Blue:Leakage fault | |
| Protection degree | IP20 |
| Ambient temperature | -25℃~+55℃ |
| Storage temperature | -30℃~+70℃ |
| Terminal connection type | Cable/Pin-type/Fork-type busbar |
| Max.terminal size for cable | 16mm²flexible/25mm²rigid |
| Max.tightening torque | 2.5N.m |
| Installation | Mounting on 35mm DIN rail |
| Incoming method | Bi-directional |
