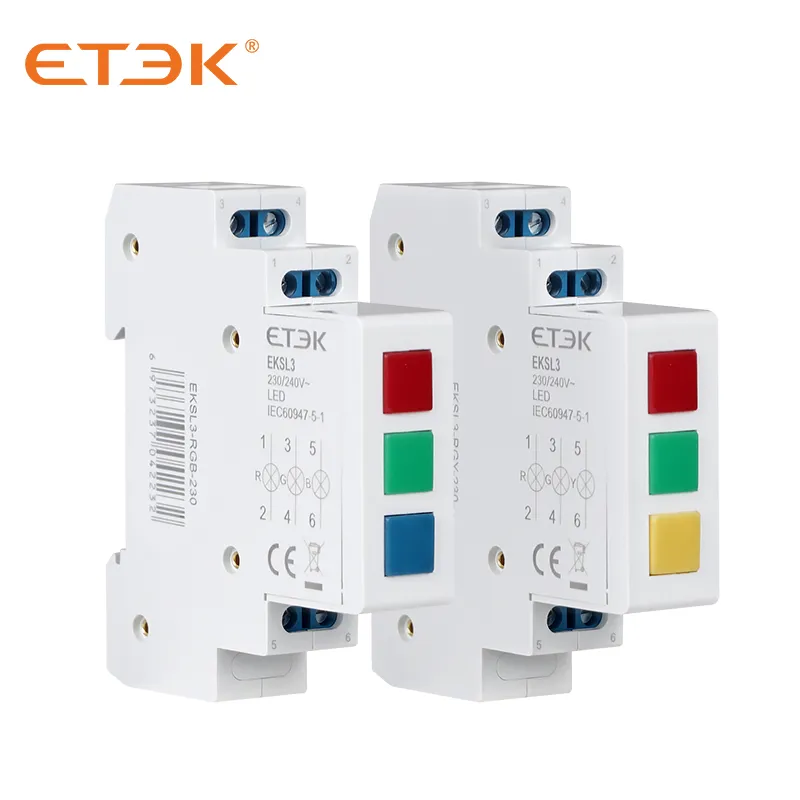

Die modulare Signallampe ist für Stromkreise mit einer Nennspannung von 230 V~ und einer Frequenz von 50/60 Hz zur visuellen Anzeige und Signalisierung geeignet.
Kurze Betriebsdauer, minimaler Stromverbrauch, kompaktes Design in modularer Größe, einfache Installation
Technische Daten | |
| Nennspannung | 230 V Wechselstrom, 100 V Wechselstrom, 48 V Wechsel-/Gleichstrom, 24 V Wechsel-/Gleichstrom |
| Nennfrequenz | 50/60 Hz |
| Farbe | EKSL1 Rot, Grün, Gelb |
| EKSL3 Rot/Grün/Gelb, Rot/Grün/Blau | |
| Anschlussklemme | Säulenanschluss mit Klemme |
| Verbindungskapazität | Starrer Leiter 1,5 mm |
| Installation | Auf symmetrischer DIN-Schiene 35 mm |
| Montageplatte | |
| Maximale Leistung | 0,6 W |
| Beleuchtung | LED |
| Servicedauer | 30.000 Stunden |
Schaltbild
 |
| EKSL1 |
 |
| EKSL3 |
| Type | Reference No. | Specification |
| Single Color | EKSL1-R-24 | Modular Signal Lamp Red 24VAC/DC |
| EKSL1-G-24 | Modular Signal Lamp Green 24VAC/DC | |
| EKSL1-Y-24 | Modular Signal Lamp Yellow 24VAC/DC | |
| EKSL1-B-24 | Modular Signal Lamp Blue 24VAC/DC | |
| EKSL1-W-24 | Modular Signal Lamp White 24VAC/DC | |
| EKSL1-R-48 | Modular Signal Lamp Red 48VAC/DC | |
| EKSL1-G-48 | Modular Signal Lamp Green 48VAC/DC | |
| EKSL1-Y-48 | Modular Signal Lamp Yellow 48VAC/DC | |
| EKSL1-B-48 | Modular Signal Lamp Blue 48VAC/DC | |
| EKSL1-W-48 | Modular Signal Lamp White 48VAC/DC | |
| EKSL1-R-110 | Modular Signal Lamp Red 110VAC | |
| EKSL1-G-110 | Modular Signal Lamp Green 110VAC | |
| EKSL1-Y-110 | Modular Signal Lamp Yellow 110VAC | |
| EKSL1-B-110 | Modular Signal Lamp Blue 110VAC | |
| EKSL1-W-110 | Modular Signal Lamp White 110VAC | |
| EKSL1-R-230 | Modular Signal Lamp Red 230VAC | |
| EKSL1-G-230 | Modular Signal Lamp Green 230VAC | |
| EKSL1-Y-230 | Modular Signal Lamp Yellow 230VAC | |
| EKSL1-B-230 | Modular Signal Lamp Blue 230VAC | |
| EKSL1-W-230 | Modular Signal Lamp White 230VAC | |
|
Tri-color |
EKSL3-RGY-24 | Modular Signal Lamp Red/Green/Yellow 24VAC/DC |
| EKSL3-RGY-48 | Modular Signal Lamp Red/Green/Yellow 48VAC/DC | |
| EKSL3-RGY-110 | Modular Signal Lamp Red/Green/Yellow 110VAC | |
| EKSL3-RGY-230 | Modular Signal Lamp Red/Green/Yellow 230VAC | |
| EKSL3-RGB-24 | Modular Signal Lamp Red/Green/Blue 24VAC/DC | |
| EKSL3-RGB-48 | Modular Signal Lamp Red/Green/Blue 48VAC/DC | |
| EKSL3-RGB-110 | Modular Signal Lamp Red/Green/Blue 110VAC | |
| EKSL3-RGB-230 | Modular Signal Lamp Red/Green/Blue 230VAC | |
| EKSL3-RYB-24 | Modular Signal Lamp Red/Yellow/Blue 24VAC/DC | |
| EKSL3-RYB-48 | Modular Signal Lamp Red/Yellow/Blue 48VAC/DC | |
| EKSL3-RYB-110 | Modular Signal Lamp Red/Yellow/Blue 110VAC | |
| EKSL3-RYB-230 | Modular Signal Lamp Red/Yellow/Blue 230VAC |
