Über- und Unterspannungsauslösung

Protects the circuit by tripping the breaker when the voltage either exceeds a set upper limit (overvoltage) or falls below a preset lower limit (undervoltage).

Typical Applications：

Ensures the safety of voltage-sensitive equipment in unstable power supply conditions.

Rated voltage: 230 VAC
Standard: IEC/EN 60947-5-1
Overvoltage trip: 280V ±5%
Undervoltage trip: 170V ±5%
Mechanical status indicator
Ensures safe operation under unstable power supply conditions

Jetzt anfragen

Produktmerkmale

Circuit breaker body
ETM-TZ mechanical interlock
ETM-MV+MN over-undervoltage release
ETM-MN undervoltage release
ETM-MV overvoltage release
ETM-MNs voltage loss release
ETM-MX+OF shunt release and auxiliary contact
ETM-MX shunt release
ETM-OF auxiliary contact
ETM-FB auxiliary and alarm contact

Produktmerkmale

Installation

Wiring Diagram

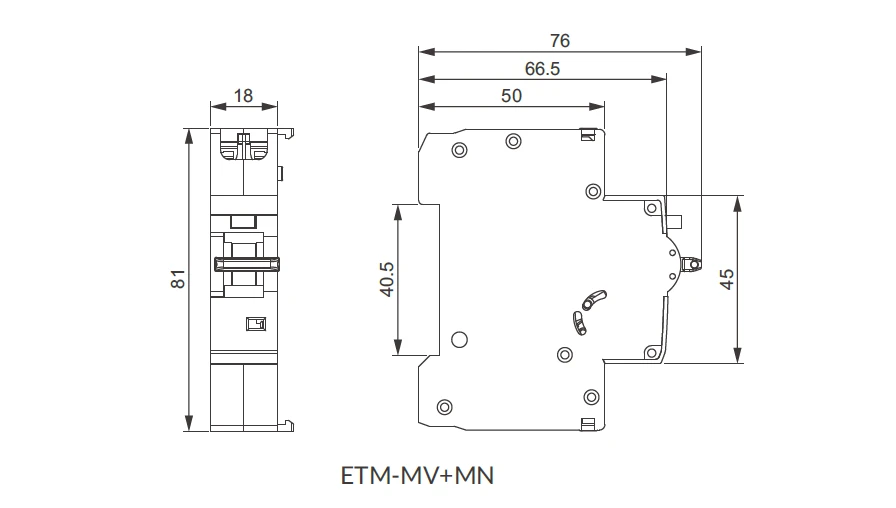

Dimension (mm)

Technische Daten

Technical Data
Model	ETM-MV+MN
Standard	IEC/EN 60947-5-1
Rated voltage (Ue)	230VAC
Operating frequency	50/60Hz
Rated working trip overvoltage	280V±5%
Rated working trip undervoltage	170V±5%
Rated insulation voltage (Ui)	400V
Rated impulse withstand voltage (Uimp)	2.5kV
Pollution degree	2
Mechanical state indicator	Yes
Terminal type	Lug type
Terminal capacity	Up to 2.5mm²
Tightening torque	0.8 N.m
Ambient temperature	-5℃~+40℃
Storage temperature	-25℃~+70℃
Product width	18mm
Compatible product	T Series MCB,RCBO
