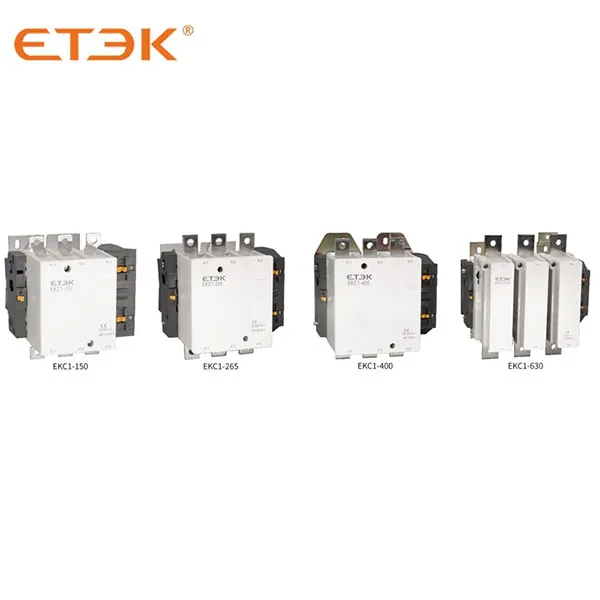

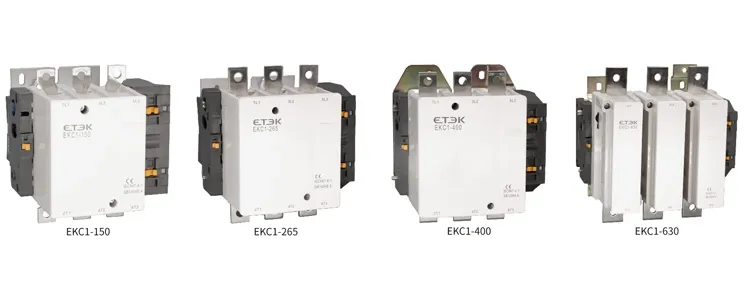

ETEK EKCC Schütze zum Schalten von Kondensatoren, Kondensatorlastschütz
Anfragen
| Anwendung | ferngesteuertes Herstellen und Unterbrechen von Stromkreisen |
| Schützen Sie den Stromkreis vor Überlastung, wenn Sie ihn mit einem thermischen Überlastrelais zusammenbauen | |
| häufiges Anlaufen und Steuern des AC-Schützes | |
| Elektrischer Wert | AC50/60Hz, 690V, bis zu 1000A |
| Nutzungskategorie | AC-3, AC-4 |
| Höhe | ≤2000m |
| Umgebungstemperatur | -5℃~+40℃ |
| Montagekategorie | Ⅲ |
| Einbaubedingungen | Die Neigung zwischen der Montageebene und der vertikalen Ebene sollte ±5° nicht überschreiten |
| Standard | IEC/EN 60947-4-1 |
Wechselstromspulenbetrieb | Volt (VAC) | 24 | 36 | 42 | 48 | 110 | 127 | 220 | 230 | 240 | 380 | 415 | 440 | 480 | 500 | 600 | |
| Code | 50Hz | B5 | C5 | D5 | E5 | F5 | G5 | M5 | P5 | U5 | Q5 | N5 | R5 | - | S5 | Y5 | |
| 60Hz | B6 | - | D6 | E6 | F6 | G6 | M6 | 0 | U6 | Q6 | 0 | R6 | T6 | - | - | ||
| 50/60Hz | B7 | - | D7 | E7 | F7 | - | M7 | - | F7 | R7 | - | - | - | ||||
Gleichstromspulenbetrieb | Volt (VDC) | 12 | 24 | 36 | 48 | 110 | 220 |
| Code | JD | BD | CD | Ed | FD | MD |
| EK | C | 1 | 115 | 4 | Z |
Firmencode | Schütz | Designsequenz NR. | Grundlegende Spezifikation, ausgedrückt durch den Bemessungsbetriebsstrom (380V/400V, AC3) | 4: Hauptstromkreis 4P Leer: Hauptstromkreis 3P | Z: Gleichstrombetrieb Leer: AC-Betrieb |
| Standard | IEC/EN60947-4-1 | ||||||||||||
| Modell Nr. | EKC1-115 | EKC1-150 | EKC1-185 | EKC1-225 | EKC1-265 | EKC1-330 | EKC1-400 | EKC1-500 | EKC1-630 | EKC1-780 | EKC1-800 | EKC1-1000 | |
| Bewertet als konventionell Heizstrom | Ith (A) | 200 | 200 | 275 | 275 | 315 | 380 | 460 | 580 | 850 | 1200 | 850 | 1200 |
| Nennspannung Ui(V) | Ui(V) | 690 | |||||||||||
| Nennbetriebsstrom Ue=380/415V | AC-3 Ie(A) | 115 | 150 | 185 | 225 | 265 | 330 | 400 | 500 | 630 | 780 | 800 | 1000 |
| AC-4 Ie(A) | 52 | 60 | 79 | 86 | 105 | 117 | 138 | 147 | 188 | 240 | 195 | 320 | |
| Leistungsgesteuert 3ph Käfig Motor AC-3 | 380/415V KW | 55 | 75 | 90 | 110 | 132 | 160 | 200 | 250 | 335 | 400 | 400 | 500 |
| 660/690V KW | 80 | 100 | 110 | 129 | 160 | 220 | 280 | 335 | 450 | 475 | 475 | 560 | |
| Elektrisches Leben (x103-Operationen) | AC-3 | 600 | 600 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 200 | 200 | 200 |
| AC-4 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 50 | 50 | 50 | |
| Mechanische Lebensdauer (x106-Operationen) | 6 | 6 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 2 | 3 | 2 | |
| Passende Sicherung | Größe | RT16-1 | RT16-2 | RT16-2 | RT16-2 | RT16-2 | RT16-3 | RT16-3 | RT16-4 | RT16-4 | RT16-4 | RT16-4 | RT16-4 |
| A | 200 | 225 | 315 | 315 | 355 | 450 | 500 | 630 | 800 | 1250 | 800 | 1250 | |
| Hauptstromkreis | 3P oder 4P | ||||||||||||
| Modell | Kabelquerschnitt (Cu) | Schraubengröße | Anzugsmoment (Nm) | ||
| Stückzahl | Kabelquerschnitt (mm2) | Cu-Sammelschiene Querschnitt (mm2) | |||
| EKC1-115 | 1 | 70~90 | - | 3 | M6 |
| EKC1-150 | 1 | 70~90 | - | 6 | M8 |
| EKC1-185 | 1 | 95~150 | - | 6 | M8 |
| EKC1-225 | 1 | 95~150 | - | 10 | M10 |
| EKC1-265 | 1 | 120~185 | - | 10 | M10 |
| EKC1-330 | 1 | 185~240 | - | 10 | M10 |
| EKC1-400 | 1(2) | 240(150) | 30×5 | 10 | M10 |
| EKC1-500 | 2 | 150~185 | 40×5 | 10 | M10 |
| EKC1-630 | 2 | 185~240 | 50×5 | 14 | M12 |
| EKC1-800 | 2 | 185~240 | 50×5 | 14 | M12 |

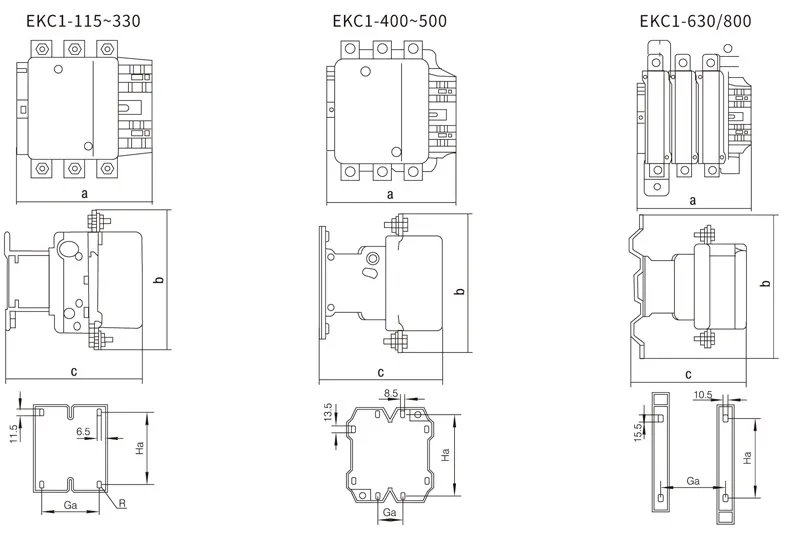

| Modell | Ein max | B max | C max |  |
| EKC1-115 | 163,5 | 162 | 171 | |
| EKC1-150 | 163,5 | 170 | 171 | |
| EKC1-185 | 168.5 | 174 | 181 | |
| EKC1-225 | 168.5 | 197 | 181 | |
| EKC1-265 | 201.5 | 203 | 213 | |
| EKC1-330 | 213 | 206 | 219 | |
| EKC1-400 | 213 | 206 | 219 | |
| EKC1-500 | 233 | 238 | 232 | |
| EKC1-630/800 | 309 | 304 | 255 |
| Referenznummer. | Spezifikation |
| EKC1-115-110 | Schütz 55KW AC3 115A 3P Spule 110VAC |
| EKC1-115-220 | Schütz 55KW AC3 115A 3P Spule 220VAC |
| EKC1-115-230 | Schütz 55KW AC3 115A 3P Spule 230VAC |
| EKC1-115-240 | Schütz 55KW AC3 115A 3P Spule 240VAC |
| EKC1-115-380 | Schütz 55KW AC3 115A 3P Spule 380VAC |
| EKC1-115-415 | Schütz 55KW AC3 115A 3P Spule 415VAC |
| EKC1-150-110 | Schütz 60KW AC3 150A 3P Spule 110VAC |
| EKC1-150-220 | Schütz 75KW AC3 150A 3P Spule 220VAC |
| EKC1-150-230 | Schütz 75KW AC3 150A 3P Spule 230VAC |
| EKC1-150-240 | Schütz 75KW AC3 150A 3P Spule 240VAC |
| EKC1-150-380 | Schütz 75KW AC3 150A 3P Spule 380VAC |
| EKC1-150-415 | Schütz 75KW AC3 150A 3P Spule 415VAC |
| EKC1-185-110 | Schütz 90KW AC3 185A 3P Spule 110VAC |
| EKC1-185-220 | Schütz 90KW AC3 185A 3P Spule 220VAC |
| EKC1-185-230 | Schütz 90KW AC3 185A 3P Spule 230VAC |
| EKC1-185-240 | Schütz 90KW AC3 185A 3P Spule 240VAC |
| EKC1-185-380 | Schütz 90KW AC3 185A 3P Spule 380VAC |
| EKC1-185-415 | Schütz 90KW AC3 185A 3P Spule 415VAC |
| EKC1-225-110 | Schütz 110KW AC3 225A 3P Spule 110VAC |
| EKC1-225-220 | Schütz 110KW AC3 225A 3P Spule 220VAC |
| EKC1-225-230 | Schütz 110KW AC3 225A 3P Spule 230VAC |
| EKC1-225-240 | Schütz 110KW AC3 225A 3P Spule 240VAC |
| EKC1-225-380 | Schütz 110KW AC3 225A 3P Spule 380VAC |
| EKC1-225-415 | Schütz 110KW AC3 225A 3P Spule 415VAC |
| EKC1-265-110 | Schütz 132KW AC3 265A 3P Spule 110VAC |
| EKC1-265-220 | Schütz 132KW AC3 265A 3P Spule 220VAC |
| EKC1-265-230 | Schütz 132KW AC3 265A 3P Spule 230VAC |
| EKC1-265-240 | Schütz 132KW AC3 265A 3P Spule 240VAC |
| EKC1-265-380 | Schütz 132KW AC3 265A 3P Spule 380VAC |
| EKC1-265-415 | Schütz 132KW AC3 265A 3P Spule 415VAC |
| EKC1-330-110 | Schütz 160KW AC3 330A 3P Spule 110VAC |
| EKC1-330-220 | Schütz 160KW AC3 330A 3P Spule 220VAC |
| EKC1-330-230 | Schütz 160KW AC3 330A 3P Spule 230VAC |
| EKC1-330-240 | Schütz 160KW AC3 330A 3P Spule 240VAC |
| EKC1-330-380 | Schütz 160KW AC3 330A 3P Spule 380VAC |
| EKC1-330-415 | Schütz 160KW AC3 330A 3P Spule 415VAC |
| EKC1-400-110 | Schütz 200KW AC3 400A 3P Spule 110VAC |
| EKC1-400-220 | Schütz 200KW AC3 400A 3P Spule 220VAC |
| EKC1-400-230 | Schütz 200KW AC3 400A 3P Spule 230VAC |
| EKC1-400-240 | Schütz 200KW AC3 400A 3P Spule 240VAC |
| EKC1-400-380 | Schütz 200KW AC3 400A 3P Spule 380VAC |
| EKC1-400-415 | Schütz 200KW AC3 400A 3P Spule 415VAC |
| EKC1-500-110 | Schütz 250KW AC3 500A 3P Spule 110VAC |
| EKC1-500-220 | Schütz 250KW AC3 500A 3P Spule 220VAC |
| EKC1-500-230 | Schütz 250KW AC3 500A 3P Spule 230VAC |
| EKC1-500-240 | Schütz 250KW AC3 500A 3P Spule 240VAC |
| EKC1-500-380 | Schütz 250KW AC3 500A 3P Spule 380VAC |
| EKC1-500-415 | Schütz 250KW AC3 500A 3P Spule 415VAC |
| EKC1-630-110 | Schütz 335KW AC3 630A 3P Spule 110VAC |
| EKC1-630-220 | Schütz 335KW AC3 630A 3P Spule 220VAC |
| EKC1-630-230 | Schütz 335KW AC3 630A 3P Spule 230VAC |
| EKC1-630-240 | Schütz 335KW AC3 630A 3P Spule 240VAC |
| EKC1-630-380 | Schütz 335KW AC3 630A 3P Spule 380VAC |
| EKC1-630-415 | Schütz 335KW AC3 630A 3P Spule 415VAC |
| EKC1-780-110 | Schütz 400KW AC3 780A 3P Spule 110VAC |
| EKC1-780-220 | Schütz 400KW AC3 780A 3P Spule 220VAC |
| EKC1-780-230 | Schütz 400KW AC3 780A 3P Spule 230VAC |
| EKC1-780-240 | Schütz 400KW AC3 780A 3P Spule 240VAC |
| EKC1-780-380 | Schütz 400KW AC3 780A 3P Spule 380VAC |
| EKC1-780-415 | Schütz 400KW AC3 780A 3P Spule 415VAC |
| EKC1-800-110 | Schütz 400KW AC3 800A 3P Spule 110VAC |
| EKC1-800-220 | Schütz 400KW AC3 800A 3P Spule 220VAC |
| EKC1-800-230 | Schütz 400KW AC3 800A 3P Spule 230VAC |
| EKC1-800-240 | Schütz 400KW AC3 800A 3P Spule 240VAC |
| EKC1-800-380 | Schütz 400KW AC3 800A 3P Spule 380VAC |
| EKC1-800-415 | Schütz 400KW AC3 800A 3P Spule 415VAC |
| EKC1-1000-110 | Schütz 500KW AC3 1000A 3P Spule 110VAC |
| EKC1-1000-220 | Schütz 500KW AC3 1000A 3P Spule 220VAC |
| EKC1-1000-230 | Schütz 500KW AC3 1000A 3P Spule 230VAC |
| EKC1-1000-240 | Schütz 500KW AC3 1000A 3P Spule 240VAC |
| EKC1-1000-380 | Schütz 500KW AC3 1000A 3P Spule 380VAC |
| EKC1-1000-415 | Schütz 500KW AC3 1000A 3P Spule 415VAC |
| EKC1-11504-110 | Schütz 55KW AC3 115A 4P Spule 110VAC |
| EKC1-11504-220 | Schütz 55KW AC3 115A 4P Spule 220VAC |
| EKC1-11504-230 | Schütz 55KW AC3 115A 4P Spule 230VAC |
| EKC1-11504-240 | Schütz 55KW AC3 115A 4P Spule 240VAC |
| EKC1-11504-380 | Schütz 55KW AC3 115A 4P Spule 380VAC |
| EKC1-11504-415 | Schütz 55KW AC3 115A 4P Spule 415VAC |
| EKC1-15004-110 | Schütz 75KW AC3 150A 4P Spule 110VAC |
| EKC1-15004-220 | Schütz 75KW AC3 150A 4P Spule 220VAC |
| EKC1-15004-230 | Schütz 75KW AC3 150A 4P Spule 230VAC |
| EKC1-15004-240 | Schütz 75KW AC3 150A 4P Spule 240VAC |
| EKC1-15004-380 | Schütz 75KW AC3 150A 4P Spule 380VAC |
| EKC1-15004-415 | Schütz 75KW AC3 150A 4P Spule 415VAC |
| EKC1-18504-110 | Schütz 90KW AC3 185A 4P Spule 110VAC |
| EKC1-18504-220 | Schütz 90KW AC3 185A 4P Spule 220VAC |
| EKC1-18504-230 | Schütz 90KW AC3 185A 4P Spule 230VAC |
| EKC1-18504-240 | Schütz 90KW AC3 185A 4P Spule 240VAC |
| EKC1-18504-380 | Schütz 90KW AC3 185A 4P Spule 380VAC |
| EKC1-18504-415 | Schütz 90KW AC3 185A 4P Spule 415VAC |
| EKC1-22504-110 | Schütz 110KW AC3 225A 4P Spule 110VAC |
| EKC1-22504-220 | Schütz 110KW AC3 225A 4P Spule 220VAC |
| EKC1-22504-230 | Schütz 110KW AC3 225A 4P Spule 230VAC |
| EKC1-22504-240 | Schütz 110KW AC3 225A 4P Spule 240VAC |
| EKC1-22504-380 | Schütz 110KW AC3 225A 4P Spule 380VAC |
| EKC1-22504-415 | Schütz 110KW AC3 225A 4P Spule 415VAC |
| EKC1-26504-110 | Schütz 132KW AC3 265A 4P Spule 110VAC |
| EKC1-26504-220 | Schütz 132KW AC3 265A 4P Spule 220VAC |
| EKC1-26504-230 | Schütz 132KW AC3 265A 4P Spule 230VAC |
| EKC1-26504-240 | Schütz 132KW AC3 265A 4P Spule 240VAC |
| EKC1-26504-380 | Schütz 132KW AC3 265A 4P Spule 380VAC |
| EKC1-26504-415 | Schütz 132KW AC3 265A 4P Spule 415VAC |
| EKC1-33004-110 | Schütz 160KW AC3 330A 4P Spule 110VAC |
| EKC1-33004-220 | Schütz 160KW AC3 330A 4P Spule 220VAC |
| EKC1-33004-230 | Schütz 160KW AC3 330A 4P Spule 230VAC |
| EKC1-33004-240 | Schütz 160KW AC3 330A 4P Spule 240VAC |
| EKC1-33004-380 | Schütz 160KW AC3 330A 4P Spule 380VAC |
| EKC1-33004-415 | Schütz 160KW AC3 330A 4P Spule 415VAC |
| EKC1-40004-110 | Schütz 200KW AC3 400A 4P Spule 110VAC |
| EKC1-40004-220 | Schütz 200KW AC3 400A 4P Spule 220VAC |
| EKC1-40004-230 | Schütz 200KW AC3 400A 4P Spule 230VAC |
| EKC1-40004-240 | Schütz 200KW AC3 400A 4P Spule 240VAC |
| EKC1-40004-380 | Schütz 200KW AC3 400A 4P Spule 380VAC |
| EKC1-40004-415 | Schütz 200KW AC3 400A 4P Spule 415VAC |
| EKC1-50004-110 | Schütz 250KW AC3 500A 4P Spule 110VAC |
| EKC1-50004-220 | Schütz 250KW AC3 500A 4P Spule 220VAC |
| EKC1-50004-230 | Schütz 250KW AC3 500A 4P Spule 230VAC |
| EKC1-50004-240 | Schütz 250KW AC3 500A 4P Spule 240VAC |
| EKC1-50004-380 | Schütz 250KW AC3 500A 4P Spule 380VAC |
| EKC1-50004-415 | Schütz 250KW AC3 500A 4P Spule 415VAC |
| EKC1-63004-110 | Schütz 335KW AC3 630A 4P Spule 110VAC |
| EKC1-63004-220 | Schütz 335KW AC3 630A 4P Spule 220VAC |
| EKC1-63004-230 | Schütz 335KW AC3 630A 4P Spule 230VAC |
| EKC1-63004-240 | Schütz 335KW AC3 630A 4P Spule 240VAC |
| EKC1-63004-380 | Schütz 335KW AC3 630A 4P Spule 380VAC |
| EKC1-63004-415 | Schütz 335KW AC3 630A 4P Spule 415VAC |
| EKC1-78004-110 | Schütz 400KW AC3 780A 4P Spule 110VAC |
| EKC1-78004-220 | Schütz 400KW AC3 780A 4P Spule 220VAC |
| EKC1-78004-230 | Schütz 400KW AC3 780A 4P Spule 230VAC |
| EKC1-78004-240 | Schütz 400KW AC3 780A 4P Spule 240VAC |
| EKC1-78004-380 | Schütz 400KW AC3 780A 4P Spule 380VAC |
| EKC1-78004-415 | Schütz 400KW AC3 780A 4P Spule 415VAC |
| EKC1-80004-110 | Schütz 400KW AC3 800A 4P Spule 110VAC |
| EKC1-80004-220 | Schütz 400KW AC3 800A 4P Spule 220VAC |
| EKC1-80004-230 | Schütz 400KW AC3 800A 4P Spule 230VAC |
| EKC1-80004-240 | Schütz 400KW AC3 800A 4P Spule 240VAC |
| EKC1-80004-380 | Schütz 400KW AC3 800A 4P Spule 380VAC |
| EKC1-80004-415 | Schütz 400KW AC3 800A 4P Spule 415VAC |
