Wechselstromschütze werden zum Ein- und Ausschalten von Leitungen und häufig zur Steuerung von Motoren und anderen Geräten eingesetzt. Sie steuern hohe Ströme mit niedrigen Strömen und spielen in Verbindung mit thermischen Relais eine Rolle beim Überlastschutz.
| Anwendung | Fernsteuerung zum Ein- und Ausschalten von Stromkreisen |
| Beim Zusammenbau mit einem thermischen Überlastrelais den Stromkreis vor Überlastung schützen. | |
| häufiges Ein- und Ausschalten sowie Steuerung des Wechselstromschützes | |
| Elektrischer Wert | Wechselstrom 50/60 Hz, 690 V, bis zu 95 A |
| Nutzungskategorie | AC-3, AC-4 |
| Höhe | ≤2000 m |
| Umgebungstemperatur | -5℃~+40℃ |
| Montagekategorie | III |
| Montagebedingungen | Die Neigung zwischen der Montageebene und der Vertikalen sollte ±5° nicht überschreiten. |
| Standard | IEC/EN 60947-4-1. IEC/EN 60947-5-1. |
| Betrieb der Wechselstromspule | ||||||||||||||||
| Volt (Wechselstrom) | 24 | 36 | 42 | 48 | 110 | 127 | 220 | 230 | 240 | 380 | 415 | 440 | 480 | 500 | 600 | |
| Code | 50 Hz | B5 | C5 | D5 | E5 | F5 | G5 | M5 | P5 | U5 | Q5 | N5 | R5 | - | S5 | Y5 |
| 60 Hz | B6 | - | D6 | E6 | F6 | G6 | M6 | 0 | U6 | Q6 | 0 | R6 | T6 | - | - | |
| 50/60 Hz | B7 | - | D7 | E7 | F7 | - | M7 | - | Q7 | R7 | - | - | - | |||
| Betrieb der Gleichstromspule | ||||||||||||||||
| Volt (VDC) | 12 | 24 | 36 | 48 | 110 | 220 | ||||||||||
| Code | JD | BD | CD | ED | FD | MD | ||||||||||
| EK | C | 1 | 09 | 11 | Z |
Firmencode | Schütz | Entwurfsfolge Nr. | Grundlegende Spezifikation, angegeben mit dem Nennbetriebsstrom (380 V/400 V, AC3) | Anzahl der Kontakte 10: 3 Öffner-Hauptkontakte + 1 Öffner-Hilfskontakt (9A, 12A, 18A, 25A, 32A) 01: 3 Öffner-Hauptkontakte + 1 Schließer-Hilfskontakt (9A, 12A, 18A, 25A, 32A) 11: 3 Öffner-Hauptkontakte + 1 Öffner- und 1 Schließer-Hilfskontakt (9A, 12A, 18A, 25A, 32A, 40A, 50A, 65A, 80A, 95A) 04: 4 Schließer-Hauptkontakte (9A, 12A, 25A, 40A, 50A, 65A, 80A, 95A) 08: 2 Öffner und 2 Schließer Hauptkontakte (9A, 12A, 25A, 40A, 50A, 65A, 80A, 95A) | Z: Gleichstrombetrieb Leer: Wechselstrombetrieb |
| Standard | IEC/EN60947-4-1 IEC/EN60947-5-1 | ||||||||||
| Modellnr. | EKC1-09 | EKC1-12 | EKC1-18 | EKC1-25 | EKC1-32 | EKC1-40 | EKC1-50 | EKC1-65 | EKC1-80 | EKC1-95 | |
| Bemessungsheizstrom | Ith(A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 100 | 125 |
| Bemessungsspannung Ui(V) | Ui(V) | 690 | |||||||||
| Bemessungsbetriebsstrom Ue=380/415V | AC-3 Ie(A) | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC-4 Ie(A) | 3,5 | 5 | 7,7 | 8,5 | 12 | 18,5 | 24 | 28 | 37 | 44 | |
| Leistungsgesteuerter 3-Phasen-Wechselstrom Käfigmotor AC-3 | 220/240 V kW | 2.2 | 3 | 4 | 5,5 | 7,5 | 11 | 15 | 18,5 | 22 | 25 |
| 380/415 V kW | 4 | 5,5 | 7,5 | 11 | 15 | 18,5 | 22 | 30 | 37 | 45 | |
| 660/690V kW | 5,5 | 7,5 | 10 | 15 | 18,5 | 30 | 33 | 37 | 45 | 45 | |
| AC-3 | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 600 | 600 | 600 | 600 | |

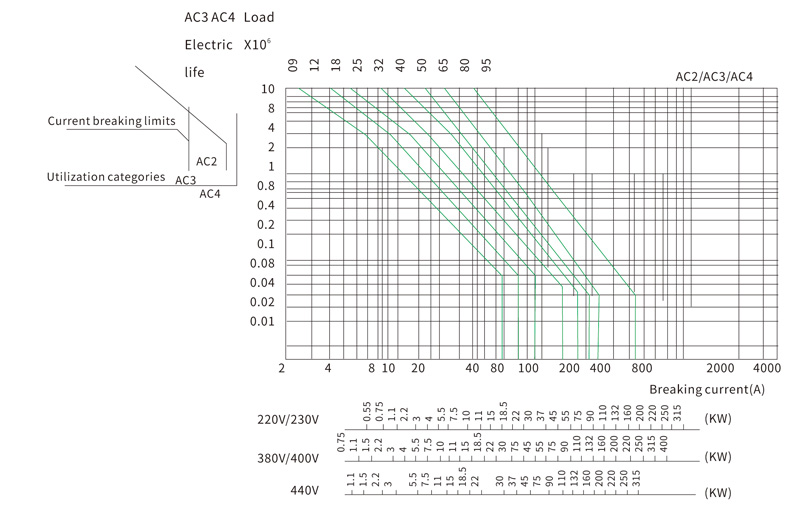

| Elektrische Lebensdauer (x10³ Schaltvorgänge) | AC-4 | 200 | 200 | 200 | 200 | 200 | 150 | 150 | 150 | 100 | 100 |
| Mechanische Lebensdauer (x10⁶ Operationen) | 10 | 10 | 10 | 10 | 8 | 8 | 8 | 8 | 6 | 6 | |
| Passende Sicherung | Größe | RT16-00 | |||||||||
| A | 20 | 20 | 32 | 40 | 50 | 63 | 80 | 80 | 100 | 125 | |
| Hauptstromkreis | 3P oder 4P | ||||||||||
| Hilfsstromkreis Kat.:AC-15, Ue=415V Ie=0,95A Ith=10A | 1Öffner / 1Negativschalter / 1Öffner + 1Negativschalter | ||||||||||
| Modell | Kabelquerschnitt (Cu) | Schraubengröße | Anzugsmoment (Nm) | |||
| Anzahl der Teile: | Flexibles Kabel mit kaltgepresster Buchse (mm2) | Flexibles Kabel ohne kaltgepresste Buchse (mm2) | Unflexibles Kabel (mm2) | |||
| EKC1-09 | 1–2 | 2,5 | 4 | 4 | M3.5 | 0,8 |
| EKC1-12 | 1–2 | 2,5 | 4 | 4 | M3.5 | 0,8 |
| EKC1-18 | 1–2 | 4 | 6 | 6 | M3.5 | 0,8 |
| EKC1-25 | 1 | 4 | 10 | 6 | M4 | 1.2 |
| 2 | 4 | 6 | 6 | M4 | 1.2 | |
| EKC1-32 | 1 | 4 | 10 | 6 | M4 | 1.2 |
| 2 | 4 | 6 | 6 | M4 | 1.2 | |
| EKC1-40 | 1 | 10 | 16 | 10 | M4 | 3,5 |
| 2 | 10 | 10 | 10 | M8 | 3,5 | |
| EKC1-50 | 1 | 16 | 25 | 25 | M8 | 3,5 |
| 2 | 16 | 16 | - | M8 | 3,5 | |
| EKC1-65 | 1 | 16 | 25 | 25 | M8 | 3,5 |
| 2 | 16 | 16 | - | M8 | 3,5 | |
| EKC1-80 | 1 | 50 | 50 | 50 | M8 | 3,5 |
| 2 | 25 | 35 | - | M10 | 4 | |
| EKC1-95 | 1 | 50 | 50 | 50 | M10 | 4 |
| 2 | 25 | 35 | - | M10 | 4 | |

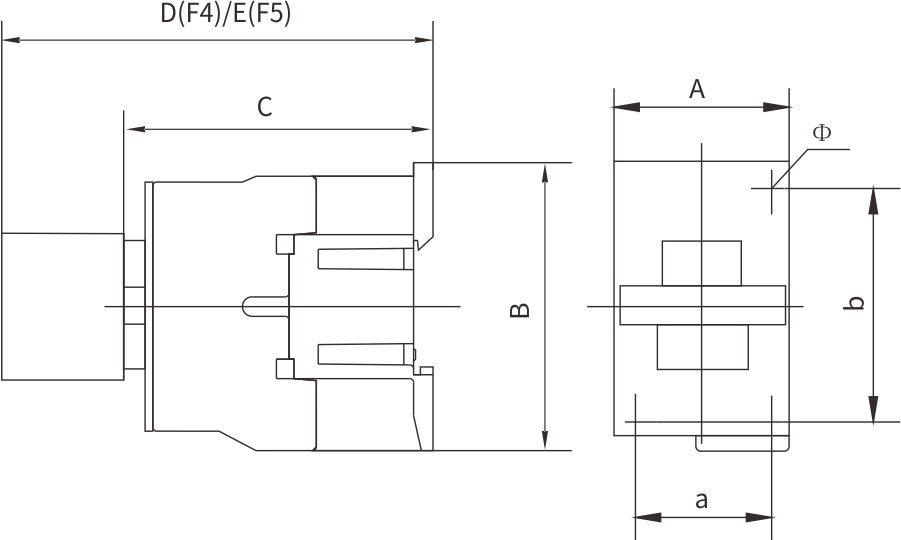

| EKC1-09~32 | ||||||||||
 | ||||||||||

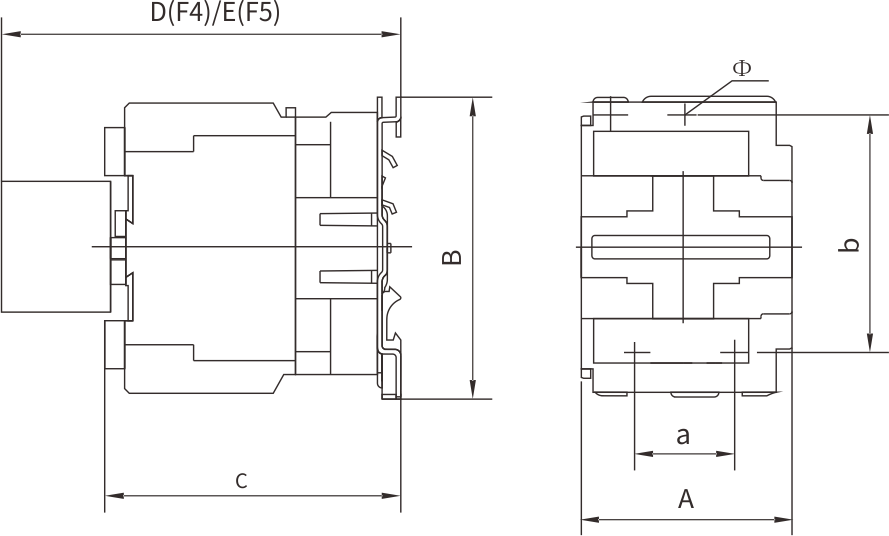

| EKC1-40~95 | ||||||||||
 | ||||||||||

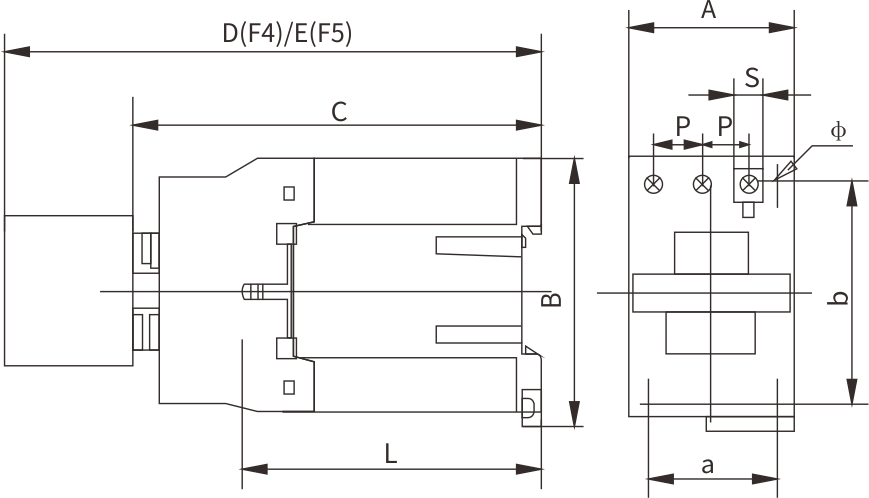

| EKC1-09Z~32Z | ||||||||||
 | ||||||||||

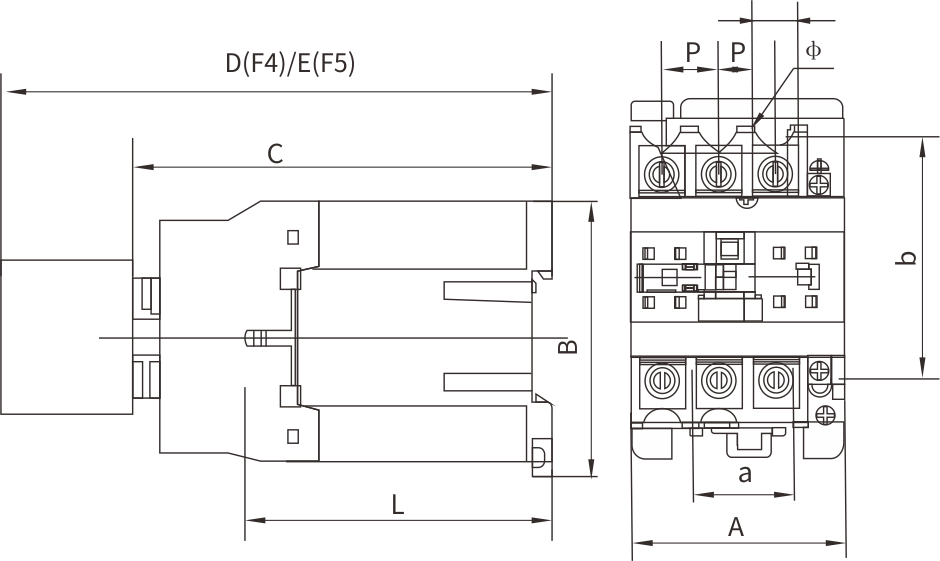

| EKC1-40Z~95Z | ||||||||||
 |
| Ein Maximum | B max | C max | D max | E max | Und | B | Φ | L | P | S | |
| EKC1-09(Z)~12(Z) | 47 | 76 | 82(116) | 125,5 (160,5) | 140,5 (174,5) | 34/35 | 50/60 | 4,5 | 60(95) | 10,5 | 8.6 |
| EKC1-18(Z) | 47 | 76 | 87(122) | 120,5 (154,5) | 145,5 (180,5) | 34/35 | 50/60 | 4,5 | 61(96) | 11.3 | 10.4 |
| EKC1-25(Z) | 57 | 86 | 95(131) | 133,5 (169,5) | 153,5 (189,5) | 40 | 48 | 4,5 | 70(107) | 13.2 | 11.7 |
| EKC1-32(Z) | 57 | 86 | 100(138) | 138,5 (176,5) | 158,5 (196,5) | 40 | 48 | 4,5 | 71.6(120) | 14,5 | 13 |
| EKC1-4011(Z)~6511(Z) | 77 | 129 | 116(173) | 154,5(211,5) | 174,5(231,5) | 40 | 100/110 | 6,5 | 78(135) | 20 | 8.6 |
| EKC1-4004/4008(Z) ~6504/6508(Z) | 84 | 129 | 116(173) | 154,5(211,5) | 174,5(231,5) | 40 | 100/110 | 6,5 | 78(135) | 20 | 8.6 |
| EKC1-8011(Z)~9511(Z) | 87 | 129 | 127(183) | 165,5 (226,5) | 185,5 (246,5) | 40 | 100/110 | 6,5 | 83(140) | 23,5 | 12 |
| EKC1-8004/8008(Z) ~9504/9508(Z) | 96 | 129 | 127(183) | 160,5 (221,5) | 180,5 (241,5) | 40 | 100/110 | 6,5 | 83(140) | 23,5 | 12 |
Notiz:
1. L: im Hauptstromkreis der Abstand zwischen Klemmen und Platte;
2. P: im Hauptstromkreis der Abstand zwischen zwei Phasen;
3. S: Im Hauptstromkreis die Breite der Kontaktplatte
| Reference No. | Specification |
| AC Coil | |
| EKC1-0910-24 | Contactor 4KW AC3 9A 3P+1NO Coil 24VAC |
| EKC1-0910-42 | Contactor 4KW AC3 9A 3P+1NO Coil 42VAC |
| EKC1-0910-48 | Contactor 4KW AC3 9A 3P+1NO Coil 48VAC |
| EKC1-0910-110 | Contactor 4KW AC3 9A 3P+1NO Coil 110VAC |
| EKC1-0910-120 | Contactor 4KW AC3 9A 3P+1NO Coil 120VAC |
| EKC1-0910-220 | Contactor 4KW AC3 9A 3P+1NO Coil 220VAC |
| EKC1-0910-230 | Contactor 4KW AC3 9A 3P+1NO Coil 230VAC |
| EKC1-0910-240 | Contactor 4KW AC3 9A 3P+1NO Coil 240VAC |
| EKC1-0910-380 | Contactor 4KW AC3 9A 3P+1NO Coil 380VAC |
| EKC1-0910-415 | Contactor 4KW AC3 9A 3P+1NO Coil 415VAC |
| EKC1-0901-24 | Contactor 4KW AC3 9A 3P+1NC Coil 24VAC |
| EKC1-0901-42 | Contactor 4KW AC3 9A 3P+1NC Coil 42VAC |
| EKC1-0901-48 | Contactor 4KW AC3 9A 3P+1NC Coil 48VAC |
| EKC1-0901-110 | Contactor 4KW AC3 9A 3P+1NC Coil 110VAC |
| EKC1-0901-120 | Contactor 4KW AC3 9A 3P+1NC Coil 120VAC |
| EKC1-0901-220 | Contactor 4KW AC3 9A 3P+1NC Coil 220VAC |
| EKC1-0901-230 | Contactor 4KW AC3 9A 3P+1NC Coil 230VAC |
| EKC1-0901-240 | Contactor 4KW AC3 9A 3P+1NC Coil 240VAC |
| EKC1-0901-380 | Contactor 4KW AC3 9A 3P+1NC Coil 380VAC |
| EKC1-0901-415 | Contactor 4KW AC3 9A 3P+1NC Coil 415VAC |
| EKC1-0911-24 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 24VAC |
| EKC1-0911-42 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 42VAC |
| EKC1-0911-48 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 48VAC |
| EKC1-0911-110 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 110VAC |
| EKC1-0911-120 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 120VAC |
| EKC1-0911-220 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 220VAC |
| EKC1-0911-230 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 230VAC |
| EKC1-0911-240 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 240VAC |
| EKC1-0911-380 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 380VAC |
| EKC1-0911-415 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 415VAC |
| EKC1-1210-24 | Contactor 5.5KW AC3 12A 3P+1NO Coil 24VAC |
| EKC1-1210-42 | Contactor 5.5KW AC3 12A 3P+1NO Coil 42VAC |
| EKC1-1210-48 | Contactor 5.5KW AC3 12A 3P+1NO Coil 48VAC |
| EKC1-1210-110 | Contactor 5.5KW AC3 12A 3P+1NO Coil 110VAC |
| EKC1-1210-120 | Contactor 5.5KW AC3 12A 3P+1NO Coil 120VAC |
| EKC1-1210-220 | Contactor 5.5KW AC3 12A 3P+1NO Coil 220VAC |
| EKC1-1210-230 | Contactor 5.5KW AC3 12A 3P+1NO Coil 230VAC |
| EKC1-1210-240 | Contactor 5.5KW AC3 12A 3P+1NO Coil 240VAC |
| EKC1-1210-380 | Contactor 5.5KW AC3 12A 3P+1NO Coil 380VAC |
| EKC1-1210-415 | Contactor 5.5KW AC3 12A 3P+1NO Coil 415VAC |
| EKC1-1201-24 | Contactor 5.5KW AC3 12A 3P+1NC Coil 24VAC |
| EKC1-1201-42 | Contactor 5.5KW AC3 12A 3P+1NC Coil 42VAC |
| EKC1-1201-48 | Contactor 5.5KW AC3 12A 3P+1NC Coil 48VAC |
| EKC1-1201-110 | Contactor 5.5KW AC3 12A 3P+1NC Coil 110VAC |
| EKC1-1201-120 | Contactor 5.5KW AC3 12A 3P+1NC Coil 120VAC |
| EKC1-1201-220 | Contactor 5.5KW AC3 12A 3P+1NC Coil 220VAC |
| EKC1-1201-230 | Contactor 5.5KW AC3 12A 3P+1NC Coil 230VAC |
| EKC1-1201-240 | Contactor 5.5KW AC3 12A 3P+1NC Coil 240VAC |
| EKC1-1201-380 | Contactor 5.5KW AC3 12A 3P+1NC Coil 380VAC |
| EKC1-1201-415 | Contactor 5.5KW AC3 12A 3P+1NC Coil 415VAC |
| EKC1-1211-24 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 24VAC |
| EKC1-1211-42 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 42VAC |
| EKC1-1211-48 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 48VAC |
| EKC1-1211-110 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 110VAC |
| EKC1-1211-120 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 120VAC |
| EKC1-1211-220 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 220VAC |
| EKC1-1211-230 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 230VAC |
| EKC1-1211-240 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 240VAC |
| EKC1-1211-380 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 380VAC |
| EKC1-1211-415 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 415VAC |
| EKC1-1810-24 | Contactor 7.5KW AC3 18A 3P+1NO Coil 24VAC |
| EKC1-1810-42 | Contactor 7.5KW AC3 18A 3P+1NO Coil 42VAC |
| EKC1-1810-48 | Contactor 7.5KW AC3 18A 3P+1NO Coil 48VAC |
| EKC1-1810-110 | Contactor 7.5KW AC3 18A 3P+1NO Coil 110VAC |
| EKC1-1810-120 | Contactor 7.5KW AC3 18A 3P+1NO Coil 120VAC |
| EKC1-1810-220 | Contactor 7.5KW AC3 18A 3P+1NO Coil 220VAC |
| EKC1-1810-230 | Contactor 7.5KW AC3 18A 3P+1NO Coil 230VAC |
| EKC1-1810-240 | Contactor 7.5KW AC3 18A 3P+1NO Coil 240VAC |
| EKC1-1810-380 | Contactor 7.5KW AC3 18A 3P+1NO Coil 380VAC |
| EKC1-1810-415 | Contactor 7.5KW AC3 18A 3P+1NO Coil 415VAC |
| EKC1-1801-24 | Contactor 7.5KW AC3 18A 3P+1NC Coil 24VAC |
| EKC1-1801-42 | Contactor 7.5KW AC3 18A 3P+1NC Coil 42VAC |
| EKC1-1801-48 | Contactor 7.5KW AC3 18A 3P+1NC Coil 48VAC |
| EKC1-1801-110 | Contactor 7.5KW AC3 18A 3P+1NC Coil 110VAC |
| EKC1-1801-120 | Contactor 7.5KW AC3 18A 3P+1NC Coil 120VAC |
| EKC1-1801-220 | Contactor 7.5KW AC3 18A 3P+1NC Coil 220VAC |
| EKC1-1801-230 | Contactor 7.5KW AC3 18A 3P+1NC Coil 230VAC |
| EKC1-1801-240 | Contactor 7.5KW AC3 18A 3P+1NC Coil 240VAC |
| EKC1-1801-380 | Contactor 7.5KW AC3 18A 3P+1NC Coil 380VAC |
| EKC1-1801-415 | Contactor 7.5KW AC3 18A 3P+1NC Coil 415VAC |
| EKC1-1811-24 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 24VAC |
| EKC1-1811-42 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 42VAC |
| EKC1-1811-48 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 48VAC |
| EKC1-1811-110 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 110VAC |
| EKC1-1811-120 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 120VAC |
| EKC1-1811-220 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 220VAC |
| EKC1-1811-230 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 230VAC |
| EKC1-1811-240 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 240VAC |
| EKC1-1811-380 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 380VAC |
| EKC1-1811-415 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 415VAC |
| EKC1-2510-24 | Contactor 11KW AC3 25A 3P+1NO Coil 24VAC |
| EKC1-2510-42 | Contactor 11KW AC3 25A 3P+1NO Coil 42VAC |
| EKC1-2510-48 | Contactor 11KW AC3 25A 3P+1NO Coil 48VAC |
| EKC1-2510-110 | Contactor 11KW AC3 25A 3P+1NO Coil 110VAC |
| EKC1-2510-120 | Contactor 11KW AC3 25A 3P+1NO Coil 120VAC |
| EKC1-2510-220 | Contactor 11KW AC3 25A 3P+1NO Coil 220VAC |
| EKC1-2510-230 | Contactor 11KW AC3 25A 3P+1NO Coil 230VAC |
| EKC1-2510-240 | Contactor 11KW AC3 25A 3P+1NO Coil 240VAC |
| EKC1-2510-380 | Contactor 11KW AC3 25A 3P+1NO Coil 380VAC |
| EKC1-2510-415 | Contactor 11KW AC3 25A 3P+1NO Coil 415VAC |
| EKC1-2501-24 | Contactor 11KW AC3 25A 3P+1NC Coil 24VAC |
| EKC1-2501-42 | Contactor 11KW AC3 25A 3P+1NC Coil 42VAC |
| EKC1-2501-48 | Contactor 11KW AC3 25A 3P+1NC Coil 48VAC |
| EKC1-2501-110 | Contactor 11KW AC3 25A 3P+1NC Coil 110VAC |
| EKC1-2501-120 | Contactor 11KW AC3 25A 3P+1NC Coil 120VAC |
| EKC1-2501-220 | Contactor 11KW AC3 25A 3P+1NC Coil 220VAC |
| EKC1-2501-230 | Contactor 11KW AC3 25A 3P+1NC Coil 230VAC |
| EKC1-2501-240 | Contactor 11KW AC3 25A 3P+1NC Coil 240VAC |
| EKC1-2501-380 | Contactor 11KW AC3 25A 3P+1NC Coil 380VAC |
| EKC1-2501-415 | Contactor 11KW AC3 25A 3P+1NC Coil 415VAC |
| EKC1-2511-24 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 24VAC |
| EKC1-2511-42 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 42VAC |
| EKC1-2511-48 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 48VAC |
| EKC1-2511-110 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 110VAC |
| EKC1-2511-120 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 120VAC |
| EKC1-2511-220 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 220VAC |
| EKC1-2511-230 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 230VAC |
| EKC1-2511-240 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 240VAC |
| EKC1-2511-380 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 380VAC |
| EKC1-2511-415 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 415VAC |
| EKC1-3210-24 | Contactor 15KW AC3 32A 3P+1NO Coil 24VAC |
| EKC1-3210-42 | Contactor 15KW AC3 32A 3P+1NO Coil 42VAC |
| EKC1-3210-48 | Contactor 15KW AC3 32A 3P+1NO Coil 48VAC |
| EKC1-3210-110 | Contactor 15KW AC3 32A 3P+1NO Coil 110VAC |
| EKC1-3210-120 | Contactor 15KW AC3 32A 3P+1NO Coil 120VAC |
| EKC1-3210-220 | Contactor 15KW AC3 32A 3P+1NO Coil 220VAC |
| EKC1-3210-230 | Contactor 15KW AC3 32A 3P+1NO Coil 230VAC |
| EKC1-3210-240 | Contactor 15KW AC3 32A 3P+1NO Coil 240VAC |
| EKC1-3210-380 | Contactor 15KW AC3 32A 3P+1NO Coil 380VAC |
| EKC1-3210-415 | Contactor 15KW AC3 32A 3P+1NO Coil 415VAC |
| EKC1-3201-24 | Contactor 15KW AC3 32A 3P+1NC Coil 24VAC |
| EKC1-3201-42 | Contactor 15KW AC3 32A 3P+1NC Coil 42VAC |
| EKC1-3201-48 | Contactor 15KW AC3 32A 3P+1NC Coil 48VAC |
| EKC1-3201-110 | Contactor 15KW AC3 32A 3P+1NC Coil 110VAC |
| EKC1-3201-120 | Contactor 15KW AC3 32A 3P+1NC Coil 120VAC |
| EKC1-3201-220 | Contactor 15KW AC3 32A 3P+1NC Coil 220VAC |
| EKC1-3201-230 | Contactor 15KW AC3 32A 3P+1NC Coil 230VAC |
| EKC1-3201-240 | Contactor 15KW AC3 32A 3P+1NC Coil 240VAC |
| EKC1-3201-380 | Contactor 15KW AC3 32A 3P+1NC Coil 380VAC |
| EKC1-3201-415 | Contactor 15KW AC3 32A 3P+1NC Coil 415VAC |
| EKC1-3211-24 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 24VAC |
| EKC1-3211-42 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 42VAC |
| EKC1-3211-48 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 48VAC |
| EKC1-3211-110 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 110VAC |
| EKC1-3211-120 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 120VAC |
| EKC1-3211-220 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 220VAC |
| EKC1-3211-230 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 230VAC |
| EKC1-3211-240 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 240VAC |
| EKC1-3211-380 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 380VAC |
| EKC1-3211-415 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 415VAC |
| EKC1-4011-24 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 24VAC |
| EKC1-4011-42 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 42VAC |
| EKC1-4011-48 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 48VAC |
| EKC1-4011-110 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 110VAC |
| EKC1-4011-120 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 120VAC |
| EKC1-4011-220 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 220VAC |
| EKC1-4011-230 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 230VAC |
| EKC1-4011-240 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 240VAC |
| EKC1-4011-380 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 380VAC |
| EKC1-4011-415 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 415VAC |
| EKC1-5011-24 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 24VAC |
| EKC1-5011-42 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 42VAC |
| EKC1-5011-48 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 48VAC |
| EKC1-5011-110 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 110VAC |
| EKC1-5011-120 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 120VAC |
| EKC1-5011-220 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 220VAC |
| EKC1-5011-230 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 230VAC |
| EKC1-5011-240 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 240VAC |
| EKC1-5011-380 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 380VAC |
| EKC1-5011-415 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 415VAC |
| EKC1-6511-24 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 24VAC |
| EKC1-6511-42 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 42VAC |
| EKC1-6511-48 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 48VAC |
| EKC1-6511-110 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 110VAC |
| EKC1-6511-120 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 120VAC |
| EKC1-6511-220 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 220VAC |
| EKC1-6511-230 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 230VAC |
| EKC1-6511-240 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 240VAC |
| EKC1-6511-380 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 380VAC |
| EKC1-6511-415 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 415VAC |
| EKC1-8011-24 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 24VAC |
| EKC1-8011-42 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 42VAC |
| EKC1-8011-48 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 48VAC |
| EKC1-8011-110 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 110VAC |
| EKC1-8011-120 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 120VAC |
| EKC1-8011-220 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 220VAC |
| EKC1-8011-230 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 230VAC |
| EKC1-8011-240 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 240VAC |
| EKC1-8011-380 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 380VAC |
| EKC1-8011-415 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 415VAC |
| EKC1-9511-24 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 24VAC |
| EKC1-9511-42 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 42VAC |
| EKC1-9511-48 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 48VAC |
| EKC1-9511-110 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 110VAC |
| EKC1-9511-120 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 120VAC |
| EKC1-9511-220 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 220VAC |
| EKC1-9511-230 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 230VAC |
| EKC1-9511-240 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 240VAC |
| EKC1-9511-380 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 380VAC |
| EKC1-9511-415 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 415VAC |
| EKC1-0904-24 | Contactor 4KW AC3 9A 4P 4NO Coil 24VAC |
| EKC1-0904-42 | Contactor 4KW AC3 9A 4P 4NO Coil 42VAC |
| EKC1-0904-48 | Contactor 4KW AC3 9A 4P 4NO Coil 48VAC |
| EKC1-0904-110 | Contactor 4KW AC3 9A 4P 4NO Coil 110VAC |
| EKC1-0904-120 | Contactor 4KW AC3 9A 4P 4NO Coil 120VAC |
| EKC1-0904-220 | Contactor 4KW AC3 9A 4P 4NO Coil 220VAC |
| EKC1-0904-230 | Contactor 4KW AC3 9A 4P 4NO Coil 230VAC |
| EKC1-0904-240 | Contactor 4KW AC3 9A 4P 4NO Coil 240VAC |
| EKC1-0904-380 | Contactor 4KW AC3 9A 4P 4NO Coil 380VAC |
| EKC1-0904-415 | Contactor 4KW AC3 9A 4P 4NO Coil 415VAC |
| EKC1-0908-24 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 24VAC |
| EKC1-0908-42 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 42VAC |
| EKC1-0908-48 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 48VAC |
| EKC1-0908-110 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 110VAC |
| EKC1-0908-120 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 120VAC |
| EKC1-0908-220 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 220VAC |
| EKC1-0908-230 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 230VAC |
| EKC1-0908-240 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 240VAC |
| EKC1-0908-380 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 380VAC |
| EKC1-0908-415 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 415VAC |
| EKC1-1204-24 | Contactor 5.5KW AC3 12A 4P 4NO Coil 24VAC |
| EKC1-1204-42 | Contactor 5.5KW AC3 12A 4P 4NO Coil 42VAC |
| EKC1-1204-48 | Contactor 5.5KW AC3 12A 4P 4NO Coil 48VAC |
| EKC1-1204-110 | Contactor 5.5KW AC3 12A 4P 4NO Coil 110VAC |
| EKC1-1204-120 | Contactor 5.5KW AC3 12A 4P 4NO Coil 120VAC |
| EKC1-1204-220 | Contactor 5.5KW AC3 12A 4P 4NO Coil 220VAC |
| EKC1-1204-230 | Contactor 5.5KW AC3 12A 4P 4NO Coil 230VAC |
| EKC1-1204-240 | Contactor 5.5KW AC3 12A 4P 4NO Coil 240VAC |
| EKC1-1204-380 | Contactor 5.5KW AC3 12A 4P 4NO Coil 380VAC |
| EKC1-1204-415 | Contactor 5.5KW AC3 12A 4P 4NO Coil 415VAC |
| EKC1-1208-24 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 24VAC |
| EKC1-1208-42 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 42VAC |
| EKC1-1208-48 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 48VAC |
| EKC1-1208-110 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 110VAC |
| EKC1-1208-120 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 120VAC |
| EKC1-1208-220 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 220VAC |
| EKC1-1208-230 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 230VAC |
| EKC1-1208-240 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 240VAC |
| EKC1-1208-380 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 380VAC |
| EKC1-1208-415 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 415VAC |
| EKC1-2504-24 | Contactor 11KW AC3 25A 4P 4NO Coil 24VAC |
| EKC1-2504-42 | Contactor 11KW AC3 25A 4P 4NO Coil 42VAC |
| EKC1-2504-48 | Contactor 11KW AC3 25A 4P 4NO Coil 48VAC |
| EKC1-2504-110 | Contactor 11KW AC3 25A 4P 4NO Coil 110VAC |
| EKC1-2504-120 | Contactor 11KW AC3 25A 4P 4NO Coil 120VAC |
| EKC1-2504-220 | Contactor 11KW AC3 25A 4P 4NO Coil 220VAC |
| EKC1-2504-230 | Contactor 11KW AC3 25A 4P 4NO Coil 230VAC |
| EKC1-2504-240 | Contactor 11KW AC3 25A 4P 4NO Coil 240VAC |
| EKC1-2504-380 | Contactor 11KW AC3 25A 4P 4NO Coil 380VAC |
| EKC1-2504-415 | Contactor 11KW AC3 25A 4P 4NO Coil 415VAC |
| EKC1-2508-24 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 24VAC |
| EKC1-2508-42 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 42VAC |
| EKC1-2508-48 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 48VAC |
| EKC1-2508-110 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 110VAC |
| EKC1-2508-120 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 120VAC |
| EKC1-2508-220 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 220VAC |
| EKC1-2508-230 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 230VAC |
| EKC1-2508-240 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 240VAC |
| EKC1-2508-380 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 380VAC |
| EKC1-2508-415 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 415VAC |
| EKC1-4004-24 | Contactor 18.5KW AC3 40A 4P 4NO Coil 24VAC |
| EKC1-4004-42 | Contactor 18.5KW AC3 40A 4P 4NO Coil 42VAC |
| EKC1-4004-48 | Contactor 18.5KW AC3 40A 4P 4NO Coil 48VAC |
| EKC1-4004-110 | Contactor 18.5KW AC3 40A 4P 4NO Coil 110VAC |
| EKC1-4004-120 | Contactor 18.5KW AC3 40A 4P 4NO Coil 120VAC |
| EKC1-4004-220 | Contactor 18.5KW AC3 40A 4P 4NO Coil 220VAC |
| EKC1-4004-230 | Contactor 18.5KW AC3 40A 4P 4NO Coil 230VAC |
| EKC1-4004-240 | Contactor 18.5KW AC3 40A 4P 4NO Coil 240VAC |
| EKC1-4004-380 | Contactor 18.5KW AC3 40A 4P 4NO Coil 380VAC |
| EKC1-4004-415 | Contactor 18.5KW AC3 40A 4P 4NO Coil 415VAC |
| EKC1-4008-24 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 24VAC |
| EKC1-4008-42 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 42VAC |
| EKC1-4008-48 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 48VAC |
| EKC1-4008-110 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 110VAC |
| EKC1-4008-120 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 120VAC |
| EKC1-4008-220 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 220VAC |
| EKC1-4008-230 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 230VAC |
| EKC1-4008-240 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 240VAC |
| EKC1-4008-380 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 380VAC |
| EKC1-4008-415 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 415VAC |
| EKC1-5004-24 | Contactor 22KW AC3 50A 4P 4NO Coil 24VAC |
| EKC1-5004-42 | Contactor 22KW AC3 50A 4P 4NO Coil 42VAC |
| EKC1-5004-48 | Contactor 22KW AC3 50A 4P 4NO Coil 48VAC |
| EKC1-5004-110 | Contactor 22KW AC3 50A 4P 4NO Coil 110VAC |
| EKC1-5004-120 | Contactor 22KW AC3 50A 4P 4NO Coil 120VAC |
| EKC1-5004-220 | Contactor 22KW AC3 50A 4P 4NO Coil 220VAC |
| EKC1-5004-230 | Contactor 22KW AC3 50A 4P 4NO Coil 230VAC |
| EKC1-5004-240 | Contactor 22KW AC3 50A 4P 4NO Coil 240VAC |
| EKC1-5004-380 | Contactor 22KW AC3 50A 4P 4NO Coil 380VAC |
| EKC1-5004-415 | Contactor 22KW AC3 50A 4P 4NO Coil 415VAC |
| EKC1-5008-24 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 24VAC |
| EKC1-5008-42 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 42VAC |
| EKC1-5008-48 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 48VAC |
| EKC1-5008-110 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 110VAC |
| EKC1-5008-120 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 120VAC |
| EKC1-5008-220 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 220VAC |
| EKC1-5008-230 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 230VAC |
| EKC1-5008-240 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 240VAC |
| EKC1-5008-380 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 380VAC |
| EKC1-5008-415 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 415VAC |
| EKC1-6504-24 | Contactor 30KW AC3 65A 4P 4NO Coil 24VAC |
| EKC1-6504-42 | Contactor 30KW AC3 65A 4P 4NO Coil 42VAC |
| EKC1-6504-48 | Contactor 30KW AC3 65A 4P 4NO Coil 48VAC |
| EKC1-6504-110 | Contactor 30KW AC3 65A 4P 4NO Coil 110VAC |
| EKC1-6504-120 | Contactor 30KW AC3 65A 4P 4NO Coil 120VAC |
| EKC1-6504-220 | Contactor 30KW AC3 65A 4P 4NO Coil 220VAC |
| EKC1-6504-230 | Contactor 30KW AC3 65A 4P 4NO Coil 230VAC |
| EKC1-6504-240 | Contactor 30KW AC3 65A 4P 4NO Coil 240VAC |
| EKC1-6504-380 | Contactor 30KW AC3 65A 4P 4NO Coil 380VAC |
| EKC1-6504-415 | Contactor 30KW AC3 65A 4P 4NO Coil 415VAC |
| EKC1-6508-24 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 24VAC |
| EKC1-6508-42 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 42VAC |
| EKC1-6508-48 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 48VAC |
| EKC1-6508-110 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 110VAC |
| EKC1-6508-120 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 120VAC |
| EKC1-6508-220 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 220VAC |
| EKC1-6508-230 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 230VAC |
| EKC1-6508-240 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 240VAC |
| EKC1-6508-380 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 380VAC |
| EKC1-6508-415 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 415VAC |
| EKC1-8004-24 | Contactor 37KW AC3 80A 4P 4NO Coil 24VAC |
| EKC1-8004-42 | Contactor 37KW AC3 80A 4P 4NO Coil 42VAC |
| EKC1-8004-48 | Contactor 37KW AC3 80A 4P 4NO Coil 48VAC |
| EKC1-8004-110 | Contactor 37KW AC3 80A 4P 4NO Coil 110VAC |
| EKC1-8004-120 | Contactor 37KW AC3 80A 4P 4NO Coil 120VAC |
| EKC1-8004-220 | Contactor 37KW AC3 80A 4P 4NO Coil 220VAC |
| EKC1-8004-230 | Contactor 37KW AC3 80A 4P 4NO Coil 230VAC |
| EKC1-8004-240 | Contactor 37KW AC3 80A 4P 4NO Coil 240VAC |
| EKC1-8004-380 | Contactor 37KW AC3 80A 4P 4NO Coil 380VAC |
| EKC1-8004-415 | Contactor 37KW AC3 80A 4P 4NO Coil 415VAC |
| EKC1-8008-24 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 24VAC |
| EKC1-8008-42 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 42VAC |
| EKC1-8008-48 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 48VAC |
| EKC1-8008-110 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 110VAC |
| EKC1-8008-120 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 120VAC |
| EKC1-8008-220 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 220VAC |
| EKC1-8008-230 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 230VAC |
| EKC1-8008-240 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 240VAC |
| EKC1-8008-380 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 380VAC |
| EKC1-8008-415 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 415VAC |
| EKC1-9504-24 | Contactor 45KW AC3 95A 4P 4NO Coil 24VAC |
| EKC1-9504-42 | Contactor 45KW AC3 95A 4P 4NO Coil 42VAC |
| EKC1-9504-48 | Contactor 45KW AC3 95A 4P 4NO Coil 48VAC |
| EKC1-9504-110 | Contactor 45KW AC3 95A 4P 4NO Coil 110VAC |
| EKC1-9504-120 | Contactor 45KW AC3 95A 4P 4NO Coil 120VAC |
| EKC1-9504-220 | Contactor 45KW AC3 95A 4P 4NO Coil 220VAC |
| EKC1-9504-230 | Contactor 45KW AC3 95A 4P 4NO Coil 230VAC |
| EKC1-9504-240 | Contactor 45KW AC3 95A 4P 4NO Coil 240VAC |
| EKC1-9504-380 | Contactor 45KW AC3 95A 4P 4NO Coil 380VAC |
| EKC1-9504-415 | Contactor 45KW AC3 95A 4P 4NO Coil 415VAC |
| EKC1-9508-24 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 24VAC |
| EKC1-9508-42 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 42VAC |
| EKC1-9508-48 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 48VAC |
| EKC1-9508-110 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 110VAC |
| EKC1-9508-120 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 120VAC |
| EKC1-9508-220 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 220VAC |
| EKC1-9508-230 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 230VAC |
| EKC1-9508-240 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 240VAC |
| EKC1-9508-380 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 380VAC |
| EKC1-9508-415 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 415VAC |
| DC Coil | |
| EKC1-0910Z-12 | Contactor 4KW AC3 9A 3P+1NO Coil 12VDC |
| EKC1-0910Z-24 | Contactor 4KW AC3 9A 3P+1NO Coil 24VDC |
| EKC1-0910Z-36 | Contactor 4KW AC3 9A 3P+1NO Coil 36VDC |
| EKC1-0910Z-48 | Contactor 4KW AC3 9A 3P+1NO Coil 48VDC |
| EKC1-0910Z-110 | Contactor 4KW AC3 9A 3P+1NO Coil 110VDC |
| EKC1-0910Z-120 | Contactor 4KW AC3 9A 3P+1NO Coil 120VDC |
| EKC1-0910Z-220 | Contactor 4KW AC3 9A 3P+1NO Coil 220VDC |
| EKC1-0901Z-12 | Contactor 4KW AC3 9A 3P+1NC Coil 12VDC |
| EKC1-0901Z-24 | Contactor 4KW AC3 9A 3P+1NC Coil 24VDC |
| EKC1-0901Z-36 | Contactor 4KW AC3 9A 3P+1NC Coil 36VDC |
| EKC1-0901Z-48 | Contactor 4KW AC3 9A 3P+1NC Coil 48VDC |
| EKC1-0901Z-110 | Contactor 4KW AC3 9A 3P+1NC Coil 110VDC |
| EKC1-0901Z-120 | Contactor 4KW AC3 9A 3P+1NC Coil 120VDC |
| EKC1-0901Z-220 | Contactor 4KW AC3 9A 3P+1NC Coil 220VDC |
| EKC1-1210Z-12 | Contactor 5.5KA AC3 12A 3P+1NO Coil 12VDC |
| EKC1-1210Z-24 | Contactor 5.5KA AC3 12A 3P+1NO Coil 24VDC |
| EKC1-1210Z-36 | Contactor 5.5KA AC3 12A 3P+1NO Coil 36VDC |
| EKC1-1210Z-48 | Contactor 5.5KA AC3 12A 3P+1NO Coil 48VDC |
| EKC1-1210Z-110 | Contactor 5.5KA AC3 12A 3P+1NO Coil 110VDC |
| EKC1-1210Z-120 | Contactor 5.5KA AC3 12A 3P+1NO Coil 120VDC |
| EKC1-1210Z-220 | Contactor 5.5KA AC3 12A 3P+1NO Coil 220VDC |
| EKC1-1201Z-12 | Contactor 5.5KA AC3 12A 3P+1NC Coil 12VDC |
| EKC1-1201Z-24 | Contactor 5.5KA AC3 12A 3P+1NC Coil 24VDC |
| EKC1-1201Z-36 | Contactor 5.5KA AC3 12A 3P+1NC Coil 36VDC |
| EKC1-1201Z-48 | Contactor 5.5KA AC3 12A 3P+1NC Coil 48VDC |
| EKC1-1201Z-110 | Contactor 5.5KA AC3 12A 3P+1NC Coil 110VDC |
| EKC1-1201Z-120 | Contactor 5.5KA AC3 12A 3P+1NC Coil 120VDC |
| EKC1-1201Z-220 | Contactor 5.5KA AC3 12A 3P+1NC Coil 220VDC |
| EKC1-1810Z-12 | Contactor 7.5KA AC3 18A 3P+1NO Coil 12VDC |
| EKC1-1810Z-24 | Contactor 7.5KA AC3 18A 3P+1NO Coil 24VDC |
| EKC1-1810Z-36 | Contactor 7.5KA AC3 18A 3P+1NO Coil 36VDC |
| EKC1-1810Z-48 | Contactor 7.5KA AC3 18A 3P+1NO Coil 48VDC |
| EKC1-1810Z-110 | Contactor 7.5KA AC3 18A 3P+1NO Coil 110VDC |
| EKC1-1810Z-120 | Contactor 7.5KA AC3 18A 3P+1NO Coil 120VDC |
| EKC1-1810Z-220 | Contactor 7.5KA AC3 18A 3P+1NO Coil 220VDC |
| EKC1-1801Z-12 | Contactor 7.5KA AC3 18A 3P+1NC Coil 12VDC |
| EKC1-1801Z-24 | Contactor 7.5KA AC3 18A 3P+1NC Coil 24VDC |
| EKC1-1801Z-36 | Contactor 7.5KA AC3 18A 3P+1NC Coil 36VDC |
| EKC1-1801Z-48 | Contactor 7.5KA AC3 18A 3P+1NC Coil 48VDC |
| EKC1-1801Z-110 | Contactor 7.5KA AC3 18A 3P+1NC Coil 110VDC |
| EKC1-1801Z-120 | Contactor 7.5KA AC3 18A 3P+1NC Coil 120VDC |
| EKC1-1801Z-220 | Contactor 7.5KW AC3 18A 3P+1NC Coil 220VDC |
| EKC1-2510Z-12 | Contactor 11KA AC3 25A 3P+1NO Coil 12VDC |
| EKC1-2510Z-24 | Contactor 11KA AC3 25A 3P+1NO Coil 24VDC |
| EKC1-2510Z-36 | Contactor 11KA AC3 25A 3P+1NO Coil 36VDC |
| EKC1-2510Z-48 | Contactor 11KA AC3 25A 3P+1NO Coil 48VDC |
| EKC1-2510Z-110 | Contactor 11KA AC3 25A 3P+1NO Coil 110VDC |
| EKC1-2510Z-120 | Contactor 11KA AC3 25A 3P+1NO Coil 120VDC |
| EKC1-2510Z-220 | Contactor 11KA AC3 25A 3P+1NO Coil 220VDC |
| EKC1-2501Z-12 | Contactor 11KA AC3 25A 3P+1NC Coil 12VDC |
| EKC1-2501Z-24 | Contactor 11KA AC3 25A 3P+1NC Coil 24VDC |
| EKC1-2501Z-36 | Contactor 11KA AC3 25A 3P+1NC Coil 36VDC |
| EKC1-2501Z-48 | Contactor 11KA AC3 25A 3P+1NC Coil 48VDC |
| EKC1-2501Z-110 | Contactor 11KA AC3 25A 3P+1NC Coil 110VDC |
| EKC1-2501Z-120 | Contactor 11KA AC3 25A 3P+1NC Coil 120VDC |
| EKC1-2501Z-220 | Contactor 11KA AC3 25A 3P+1NC Coil 220VDC |
| EKC1-3210Z-12 | Contactor 15KA AC3 32A 3P+1NO Coil 12VDC |
| EKC1-3210Z-24 | Contactor 15KA AC3 32A 3P+1NO Coil 24VDC |
| EKC1-3210Z-36 | Contactor 15KA AC3 32A 3P+1NO Coil 36VDC |
| EKC1-3210Z-48 | Contactor 15KA AC3 32A 3P+1NO Coil 48VDC |
| EKC1-3210Z-110 | Contactor 15KA AC3 32A 3P+1NO Coil 110VDC |
| EKC1-3210Z-120 | Contactor 15KA AC3 32A 3P+1NO Coil 120VDC |
| EKC1-3210Z-220 | Contactor 15KA AC3 32A 3P+1NO Coil 220VDC |
| EKC1-3201Z-12 | Contactor 15KA AC3 32A 3P+1NC Coil 12VDC |
| EKC1-3201Z-24 | Contactor 15KA AC3 32A 3P+1NC Coil 24VDC |
| EKC1-3201Z-36 | Contactor 15KA AC3 32A 3P+1NC Coil 36VDC |
| EKC1-3201Z-48 | Contactor 15KA AC3 32A 3P+1NC Coil 48VDC |
| EKC1-3201Z-110 | Contactor 15KA AC3 32A 3P+1NC Coil 110VDC |
| EKC1-3201Z-120 | Contactor 15KA AC3 32A 3P+1NC Coil 120VDC |
| EKC1-3201Z-220 | Contactor 15KA AC3 32A 3P+1NC Coil 220VDC |
| EKC1-4011Z-12 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 12VDC |
| EKC1-4011Z-24 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 24VDC |
| EKC1-4011Z-36 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 36VDC |
| EKC1-4011Z-48 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 48VDC |
| EKC1-4011Z-110 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 110VDC |
| EKC1-4011Z-120 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 120VDC |
| EKC1-4011Z-220 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 220VDC |
| EKC1-5011Z-12 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 12VDC |
| EKC1-5011Z-24 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 24VDC |
| EKC1-5011Z-36 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 36VDC |
| EKC1-5011Z-48 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 48VDC |
| EKC1-5011Z-110 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 110VDC |
| EKC1-5011Z-120 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 120VDC |
| EKC1-5011Z-220 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 220VDC |
| EKC1-6511Z-12 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 12VDC |
| EKC1-6511Z-24 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 24VDC |
| EKC1-6511Z-36 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 36VDC |
| EKC1-6511Z-48 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 48VDC |
| EKC1-6511Z-110 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 110VDC |
| EKC1-6511Z-120 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 120VDC |
| EKC1-6511Z-220 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 220VDC |
| EKC1-8011Z-12 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 12VDC |
| EKC1-8011Z-24 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 24VDC |
| EKC1-8011Z-36 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 36VDC |
| EKC1-8011Z-48 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 48VDC |
| EKC1-8011Z-110 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 110VDC |
| EKC1-8011Z-120 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 120VDC |
| EKC1-8011Z-220 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 220VDC |
| EKC1-9511Z-12 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 12VDC |
| EKC1-9511Z-24 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 24VDC |
| EKC1-9511Z-36 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 36VDC |
| EKC1-9511Z-48 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 48VDC |
| EKC1-9511Z-110 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 110VDC |
| EKC1-9511Z-120 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 120VDC |
| EKC1-9511Z-220 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 220VDC |
United States (English)
Russia (Pусский)
France (Français)
China (中文)
Spain (Español)
Germany (Deutsch)
Portugal (Português)
Slovakia (slovenský jazyk)
Australia (English)
New Zealand (English)
