Beschreibung

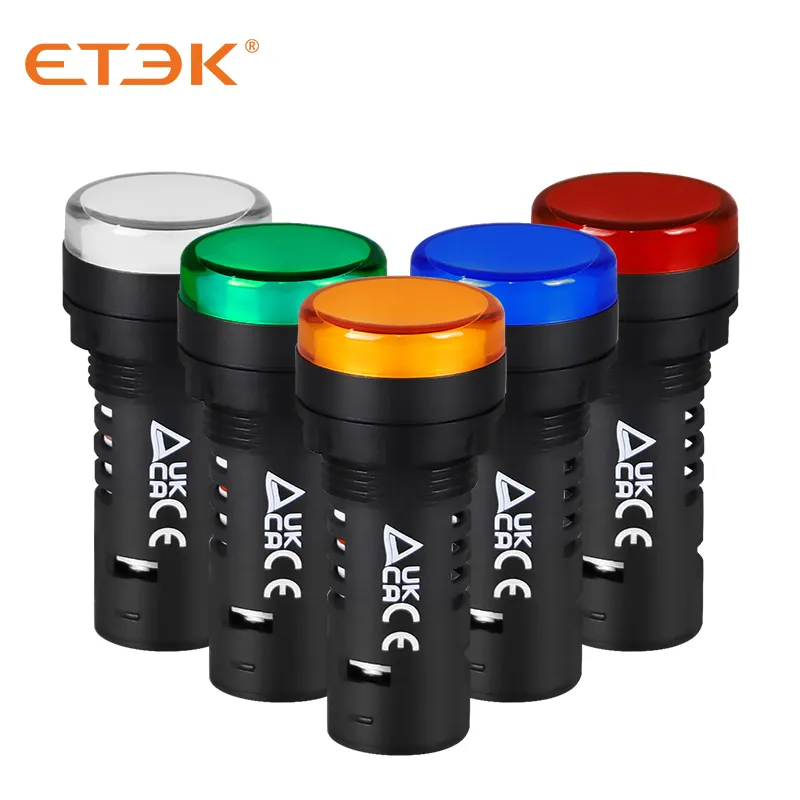

Die experimentelle Kontrollleuchte der Serie EKLD22 verwendet einen hochhellen, einfarbigen LED-Leuchtchip als Lichtquelle und zeichnet sich durch lange Lebensdauer, geringen Energieverbrauch, kleine Abmessungen, geringes Gewicht, hohe Helligkeit, gute Zuverlässigkeit, ansprechendes Aussehen und hochwertige Verarbeitung aus. Sie eignet sich für Anwendungen in der Energiewirtschaft, Telekommunikation, Werkzeugmaschinen, Schifffahrt, Textilindustrie, Druckindustrie, Bergbaumaschinen und anderen Bereichen und wird als Anzeigesignal, Warnsignal, Unfallsignal und anderes Signal verwendet.
1. Lochgröße: φ22,5 mm, die Durchmesser φ25 mm und φ30 mm können durch Auswahl des Reduzierrings realisiert werden;

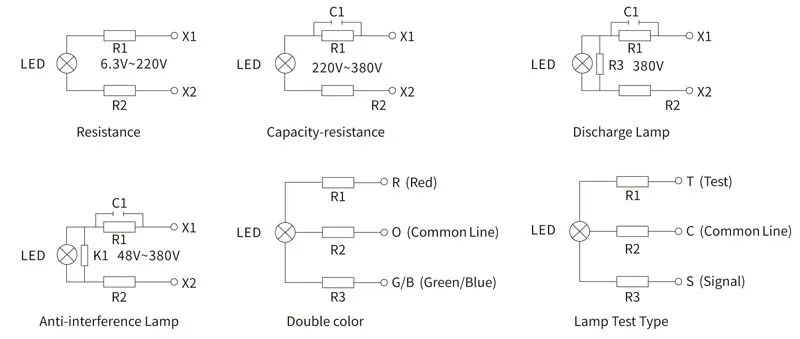

2. Durch die Steuerung verschiedener Leuchtformen über unterschiedliche Anschlüsse können unterschiedliche Betriebszustände deutlich angezeigt werden.
3. Die Teile bestehen aus importierten Materialien, die langlebig und verschleißfest sind;
4. Eingebaute Schraubverkabelung für mehr Sicherheit und Komfort.
| Betriebstemperatur: -5℃~+40℃ | Netzfrequenz-Stehspannung: min. 2500 V | ||||||||
| Betriebsfeuchtigkeit: 45 % bis 85 % | Installationsgrad: III | ||||||||
| Verschmutzungsgrad: 3 | Schutzart: IP65 | ||||||||
| Bemessungsbetriebsspannung | (Ue) | Wechselstrom/Gleichstrom | Wechselstrom/Gleichstrom | Wechselstrom/Gleichstrom | Wechselstrom/Gleichstrom | Wechselstrom/Gleichstrom | Wechselstrom/Gleichstrom | Klimaanlage | |
| 6,3 V | 12 V | 12 V | 24 V | 48 V | 110 V | 220 V | 380 V | ||
| Bemessungsbetriebsstrom | (Ie)≤80mA ≤20mA | ||||||||
| Grundfarbe | Grün Gelb Rot Blau Weiß | ||||||||
| Elektrische Lebensdauer (h) | ≥3000 | ||||||||
| Helligkeit | ≥60 | ||||||||
| Reference No. | Specification |

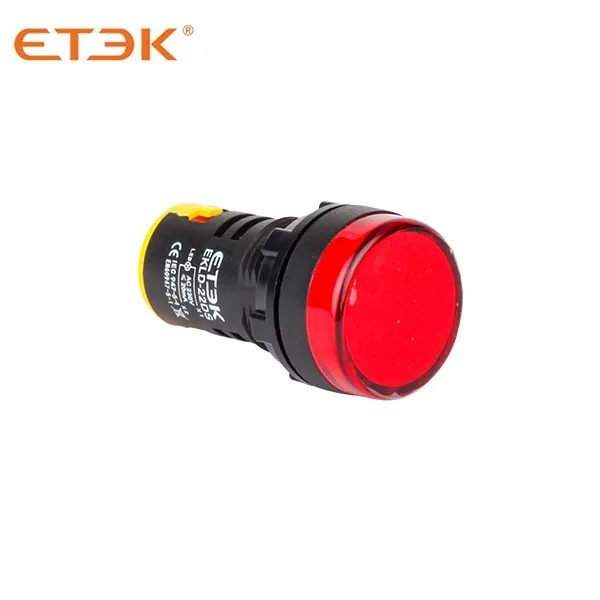

| EKLD-22DS-R-12 | LED Indicator General type 22mm Red 12VAC/DC |
| EKLD-22DS-R-24 | LED Indicator General type 22mm Red 24VAC/DC |
| EKLD-22DS-R-48 | LED Indicator General type 22mm Red 48VAC/DC |
| EKLD-22DS-R-110 | LED Indicator General type 22mm Red 110VAC/DC |
| EKLD-22DS-R-220 | LED Indicator General type 22mm Red 220VAC |
| EKLD-22DS-R-220D | LED Indicator General type 22mm Red 220VDC |
| EKLD-22DS-R-230 | LED Indicator General type 22mm Red 230VAC |
| EKLD-22DS-R-380 | LED Indicator General type 22mm Red 380VAC |

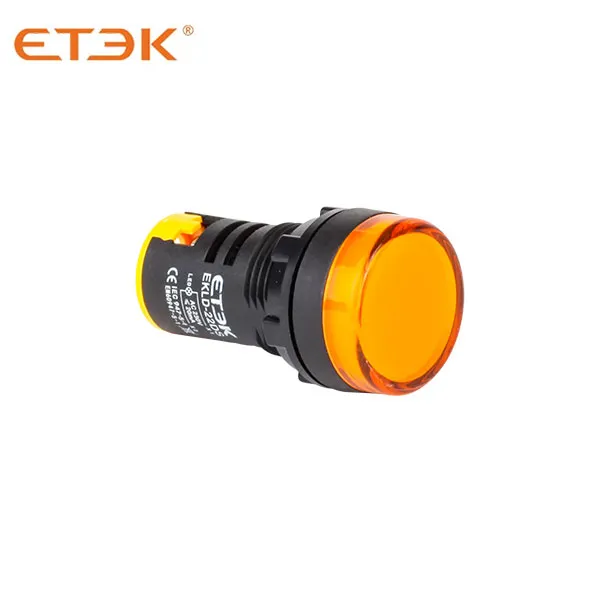

| EKLD-22DS-Y-12 | LED Indicator General type 22mm Yellow 12VAC/DC |
| EKLD-22DS-Y-24 | LED Indicator General type 22mm Yellow 24VAC/DC |
| EKLD-22DS-Y-48 | LED Indicator General type 22mm Yellow 48VAC/DC |
| EKLD-22DS-Y-110 | LED Indicator General type 22mm Yellow 110VAC/DC |
| EKLD-22DS-Y-220 | LED Indicator General type 22mm Yellow 220VAC |
| EKLD-22DS-Y-220D | LED Indicator General type 22mm Yellow 220VDC |
| EKLD-22DS-Y-230 | LED Indicator General type 22mm Yellow 230VAC |
| EKLD-22DS-Y-380 | LED Indicator General type 22mm Yellow 380VAC |
| EKLD-22DS-G-12 | LED Indicator General type 22mm Green 12VAC/DC |
| EKLD-22DS-G-24 | LED Indicator General type 22mm Green 24VAC/DC |
| EKLD-22DS-G-48 | LED Indicator General type 22mm Green 48VAC/DC |
| EKLD-22DS-G-110 | LED Indicator General type 22mm Green 110VAC/DC |
| EKLD-22DS-G-220 | LED Indicator General type 22mm Green 220VAC |
| EKLD-22DS-G-220D | LED Indicator General type 22mm Green 220VDC |
| EKLD-22DS-G-230 | LED Indicator General type 22mm Green 230VAC |
| EKLD-22DS-G-380 | LED Indicator General type 22mm Green 380VAC |

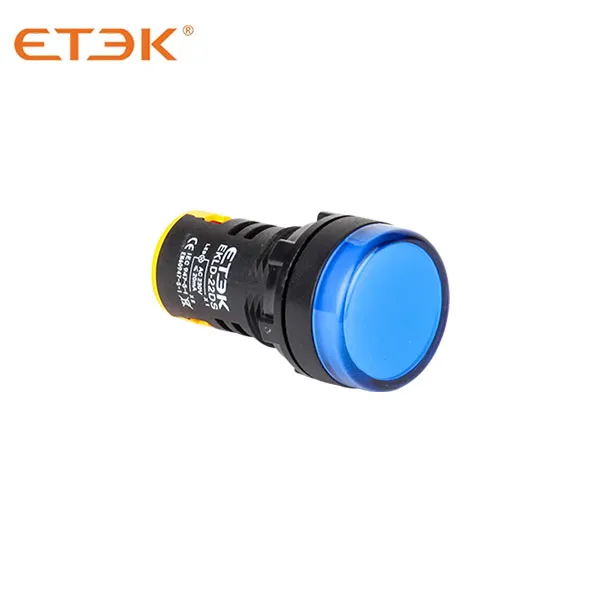

| EKLD-22DS-B-12 | LED Indicator General type 22mm Blue 12VAC/DC |
| EKLD-22DS-B-24 | LED Indicator General type 22mm Blue 24VAC/DC |
| EKLD-22DS-B-48 | LED Indicator General type 22mm Blue 48VAC/DC |
| EKLD-22DS-B-110 | LED Indicator General type 22mm Blue 110VAC/DC |
| EKLD-22DS-B-220 | LED Indicator General type 22mm Blue 220VAC |
| EKLD-22DS-B-220D | LED Indicator General type 22mm Blue 220VDC |
| EKLD-22DS-B-230 | LED Indicator General type 22mm Blue 230VAC |
| EKLD-22DS-B-380 | LED Indicator General type 22mm Blue 380VAC |

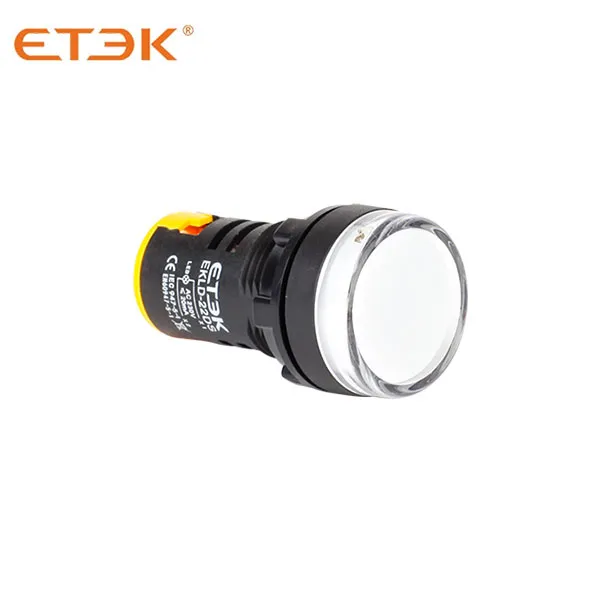

| EKLD-22DS-W-12 | LED Indicator General type 22mm White 12VAC/DC |
| EKLD-22DS-W-24 | LED Indicator General type 22mm White 24VAC/DC |
| EKLD-22DS-W-48 | LED Indicator General type 22mm White 48VAC/DC |
| EKLD-22DS-W-110 | LED Indicator General type 22mm White 110VAC/DC |
| EKLD-22DS-W-220 | LED Indicator General type 22mm White 220VAC |
| EKLD-22DS-W-220D | LED Indicator General type 22mm White 220VDC |
| EKLD-22DS-W-230 | LED Indicator General type 22mm White 230VAC |
| EKLD-22DS-W-380 | LED Indicator General type 22mm White 380VAC |
| EKLD-22DKS-R-12 | LED Indicator Anti-interference type 22mm Red 12VAC/DC |
| EKLD-22DKS-R-24 | LED Indicator Anti-interference type 22mm Red 24VAC/DC |
| EKLD-22DKS-R-48 | LED Indicator Anti-interference type 22mm Red 48VAC/DC |
| EKLD-22DKS-R-110 | LED Indicator Anti-interference type 22mm Red 110VAC/DC |
| EKLD-22DKS-R-220 | LED Indicator Anti-interference type 22mm Red 220VAC |
| EKLD-22DKS-R-220D | LED Indicator Anti-interference type 22mm Red 220VDC |
| EKLD-22DKS-R-230 | LED Indicator Anti-interference type 22mm Red 230VAC |
| EKLD-22DKS-R-380 | LED Indicator Anti-interference type 22mm Red 380VAC |
| EKLD-22DKS-Y-12 | LED Indicator Anti-interference type 22mm Yellow 12VAC/DC |
| EKLD-22DKS-Y-24 | LED Indicator Anti-interference type 22mm Yellow 24VAC/DC |
| EKLD-22DKS-Y-48 | LED Indicator Anti-interference type 22mm Yellow 48VAC/DC |
| EKLD-22DKS-Y-110 | LED Indicator Anti-interference type 22mm Yellow 110VAC/DC |
| EKLD-22DKS-Y-220 | LED Indicator Anti-interference type 22mm Yellow 220VAC |
| EKLD-22DKS-Y-220D | LED Indicator Anti-interference type 22mm Yellow 220VDC |
| EKLD-22DKS-Y-230 | LED Indicator Anti-interference type 22mm Yellow 230VAC |
| EKLD-22DKS-Y-380 | LED Indicator Anti-interference type 22mm Yellow 380VAC |
| EKLD-22DKS-G-12 | LED Indicator Anti-interference type 22mm Green 12VAC/DC |
| EKLD-22DKS-G-24 | LED Indicator Anti-interference type 22mm Green 24VAC/DC |
| EKLD-22DKS-G-48 | LED Indicator Anti-interference type 22mm Green 48VAC/DC |
| EKLD-22DKS-G-110 | LED Indicator Anti-interference type 22mm Green 110VAC/DC |
| EKLD-22DKS-G-220 | LED Indicator Anti-interference type 22mm Green 220VAC |
| EKLD-22DKS-G-220D | LED Indicator Anti-interference type 22mm Green 220VDC |
| EKLD-22DKS-G-230 | LED Indicator Anti-interference type 22mm Green 230VAC |
| EKLD-22DKS-G-380 | LED Indicator Anti-interference type 22mm Green 380VAC |
| EKLD-22DKS-B-12 | LED Indicator Anti-interference type 22mm Blue 12VAC/DC |
| EKLD-22DKS-B-24 | LED Indicator Anti-interference type 22mm Blue 24VAC/DC |
| EKLD-22DKS-B-48 | LED Indicator Anti-interference type 22mm Blue 48VAC/DC |
| EKLD-22DKS-B-110 | LED Indicator Anti-interference type 22mm Blue 110VAC/DC |
| EKLD-22DKS-B-220 | LED Indicator Anti-interference type 22mm Blue 220VAC |
| EKLD-22DKS-B-220D | LED Indicator Anti-interference type 22mm Blue 220VDC |
| EKLD-22DKS-B-230 | LED Indicator Anti-interference type 22mm Blue 230VAC |
| EKLD-22DKS-B-380 | LED Indicator Anti-interference type 22mm Blue 380VAC |
| EKLD-22DKS-W-12 | LED Indicator Anti-interference type 22mm White 12VAC/DC |
| EKLD-22DKS-W-24 | LED Indicator Anti-interference type 22mm White 24VAC/DC |
| EKLD-22DKS-W-48 | LED Indicator Anti-interference type 22mm White 48VAC/DC |
| EKLD-22DKS-W-110 | LED Indicator Anti-interference type 22mm White 110VAC/DC |
| EKLD-22DKS-W-220 | LED Indicator Anti-interference type 22mm White 220VAC |
| EKLD-22DKS-W-220D | LED Indicator Anti-interference type 22mm White 220VDC |
| EKLD-22DKS-W-230 | LED Indicator Anti-interference type 22mm White 230VAC |
| EKLD-22DKS-W-380 | LED Indicator Anti-interference type 22mm White 380VAC |
| EKLD-22DFS-R-12 | LED Indicator Discharge type 22mm Red 12VAC/DC |
| EKLD-22DFS-R-24 | LED Indicator Discharge type 22mm Red 24VAC/DC |
| EKLD-22DFS-R-48 | LED Indicator Discharge type 22mm Red 48VAC/DC |
| EKLD-22DFS-R-110 | LED Indicator Discharge type 22mm Red 110VAC/DC |
| EKLD-22DFS-R-220 | LED Indicator Discharge type 22mm Red 220VAC |
| EKLD-22DFS-R-220D | LED Indicator Discharge type 22mm Red 220VDC |
| EKLD-22DFS-R-230 | LED Indicator Discharge type 22mm Red 230VAC |
| EKLD-22DFS-R-380 | LED Indicator Discharge type 22mm Red 380VAC |
| EKLD-22DFS-Y-12 | LED Indicator Discharge type 22mm Yellow 12VAC/DC |
| EKLD-22DFS-Y-24 | LED Indicator Discharge type 22mm Yellow 24VAC/DC |
| EKLD-22DFS-Y-48 | LED Indicator Discharge type 22mm Yellow 48VAC/DC |
| EKLD-22DFS-Y-110 | LED Indicator Discharge type 22mm Yellow 110VAC/DC |
| EKLD-22DFS-Y-220 | LED Indicator Discharge type 22mm Yellow 220VAC |
| EKLD-22DFS-Y-220D | LED Indicator Discharge type 22mm Yellow 220VDC |
| EKLD-22DFS-Y-230 | LED Indicator Discharge type 22mm Yellow 230VAC |
| EKLD-22DFS-Y-380 | LED Indicator Discharge type 22mm Yellow 380VAC |
| EKLD-22DFS-G-12 | LED Indicator Discharge type 22mm Green 12VAC/DC |
| EKLD-22DFS-G-24 | LED Indicator Discharge type 22mm Green 24VAC/DC |
| EKLD-22DFS-G-48 | LED Indicator Discharge type 22mm Green 48VAC/DC |
| EKLD-22DFS-G-110 | LED Indicator Discharge type 22mm Green 110VAC/DC |
| EKLD-22DFS-G-220 | LED Indicator Discharge type 22mm Green 220VAC |
| EKLD-22DFS-G-220D | LED Indicator Discharge type 22mm Green 220VDC |
| EKLD-22DFS-G-230 | LED Indicator Discharge type 22mm Green 230VAC |
| EKLD-22DFS-G-380 | LED Indicator Discharge type 22mm Green 380VAC |
| EKLD-22DFS-B-12 | LED Indicator Discharge type 22mm Blue 12VAC/DC |
| EKLD-22DFS-B-24 | LED Indicator Discharge type 22mm Blue 24VAC/DC |
| EKLD-22DFS-B-48 | LED Indicator Discharge type 22mm Blue 48VAC/DC |
| EKLD-22DFS-B-110 | LED Indicator Discharge type 22mm Blue 110VAC/DC |
| EKLD-22DFS-B-220 | LED Indicator Discharge type 22mm Blue 220VAC |
| EKLD-22DFS-B-220D | LED Indicator Discharge type 22mm Blue 220VDC |
| EKLD-22DFS-B-230 | LED Indicator Discharge type 22mm Blue 230VAC |
| EKLD-22DFS-B-380 | LED Indicator Discharge type 22mm Blue 380VAC |
| EKLD-22DFS-W-12 | LED Indicator Discharge type 22mm White 12VAC/DC |
| EKLD-22DFS-W-24 | LED Indicator Discharge type 22mm White 24VAC/DC |
| EKLD-22DFS-W-48 | LED Indicator Discharge type 22mm White 48VAC/DC |
| EKLD-22DFS-W-110 | LED Indicator Discharge type 22mm White 110VAC/DC |
| EKLD-22DFS-W-220 | LED Indicator Discharge type 22mm White 220VAC |
| EKLD-22DFS-W-220D | LED Indicator Discharge type 22mm White 220VDC |
| EKLD-22DFS-W-230 | LED Indicator Discharge type 22mm White 230VAC |
| EKLD-22DFS-W-380 | LED Indicator Discharge type 22mm White 380VAC |
| EKLD-22DRG-12 | LED Indicator Double Colour type 22mm Red/Green 12VAC/DC |
| EKLD-22DRG-24 | LED Indicator Double Colour type 22mm Red/Green 24VAC/DC |
| EKLD-22DRG-48 | LED Indicator Double Colour type 22mm Red/Green 48VAC/DC |
| EKLD-22DRG-110 | LED Indicator Double Colour type 22mm Red/Green 110VAC/DC |
| EKLD-22DRG-220 | LED Indicator Double Colour type 22mm Red/Green 220VAC |
| EKLD-22DRG-220D | LED Indicator Double Colour type 22mm Red/Green 220VDC |
| EKLD-22DRG-230 | LED Indicator Double Colour type 22mm Red/Green 230VAC |
| EKLD-22DRG-380 | LED Indicator Double Colour type 22mm Red/Green 380VAC |
| EKLD-22DRB-12 | LED Indicator Double Colour type 22mm Red/Blue 12VAC/DC |
| EKLD-22DRB-24 | LED Indicator Double Colour type 22mm Red/Blue 24VAC/DC |
| EKLD-22DRB-48 | LED Indicator Double Colour type 22mm Red/Blue 48VAC/DC |
| EKLD-22DRB-110 | LED Indicator Double Colour type 22mm Red/Blue 110VAC/DC |
| EKLD-22DRB-220 | LED Indicator Double Colour type 22mm Red/Blue 220VAC |
| EKLD-22DRB-220D | LED Indicator Double Colour type 22mm Red/Blue 220VDC |
| EKLD-22DRB-230 | LED Indicator Double Colour type 22mm Red/Blue 230VAC |
| EKLD-22DRB-380 | LED Indicator Double Colour type 22mm Red/Blue 380VAC |
| EKLD-22MSD-R-12 | LED Indicator Flash Buzzer type 22mm Red 12VAC/DC |
| EKLD-22MSD-R-24 | LED Indicator Flash Buzzer type 22mm Red 24VAC/DC |
| EKLD-22MSD-R-48 | LED Indicator Flash Buzzer type 22mm Red 48VAC/DC |
| EKLD-22MSD-R-110 | LED Indicator Flash Buzzer type 22mm Red 110VAC/DC |
| EKLD-22MSD-R-220 | LED Indicator Flash Buzzer type 22mm Red 220VAC |
| EKLD-22MSD-R-220D | LED Indicator Flash Buzzer type 22mm Red 220VDC |
| EKLD-22MSD-R-230 | LED Indicator Flash Buzzer type 22mm Red 230VAC |
| EKLD-22MSD-R-380 | LED Indicator Flash Buzzer type 22mm Red 380VAC |
| EKLD-22MFD-B-12 | LED Indicator Buzzer type 22mm Black 12VAC/DC |
| EKLD-22MFD-B-24 | LED Indicator Buzzer type 22mm Black 24VAC/DC |
| EKLD-22MFD-B-48 | LED Indicator Buzzer type 22mm Black 48VAC/DC |
| EKLD-22MFD-B-110 | LED Indicator Buzzer type 22mm Black 110VAC/DC |
| EKLD-22MFD-B-220 | LED Indicator Buzzer type 22mm Black 220VAC |
| EKLD-22MFD-B-220D | LED Indicator Buzzer type 22mm Black 220VDC |
| EKLD-22MFD-B-230 | LED Indicator Buzzer type 22mm Black 230VAC |
| EKLD-22MFD-B-380 | LED Indicator Buzzer type 22mm Black 380VAC |
| EKLD-22DLT-R-12 | LED Indicator Lamp Test type 22mm Red 12VAC/DC |
| EKLD-22DLT-R-24 | LED Indicator Lamp Test type 22mm Red 24VAC/DC |
| EKLD-22DLT-R-48 | LED Indicator Lamp Test type 22mm Red 48VAC/DC |
| EKLD-22DLT-R-110 | LED Indicator Lamp Test type 22mm Red 110VAC/DC |
| EKLD-22DLT-R-220 | LED Indicator Lamp Test type 22mm Red 220VAC |
| EKLD-22DLT-R-220D | LED Indicator Lamp Test type 22mm Red 220VDC |
| EKLD-22DLT-R-230 | LED Indicator Lamp Test type 22mm Red 230VAC |
| EKLD-22DLT-R-380 | LED Indicator Lamp Test type 22mm Red 380VAC |
| EKLD-22DLT-Y-12 | LED Indicator Lamp Test type 22mm Yellow 12VAC/DC |
| EKLD-22DLT-Y-24 | LED Indicator Lamp Test type 22mm Yellow 24VAC/DC |
| EKLD-22DLT-Y-48 | LED Indicator Lamp Test type 22mm Yellow 48VAC/DC |
| EKLD-22DLT-Y-110 | LED Indicator Lamp Test type 22mm Yellow 110VAC/DC |
| EKLD-22DLT-Y-220 | LED Indicator Lamp Test type 22mm Yellow 220VAC |
| EKLD-22DLT-Y-220D | LED Indicator Lamp Test type 22mm Yellow 220VDC |
| EKLD-22DLT-Y-230 | LED Indicator Lamp Test type 22mm Yellow 230VAC |
| EKLD-22DLT-Y-380 | LED Indicator Lamp Test type 22mm Yellow 380VAC |
| EKLD-22DLT-G-12 | LED Indicator Lamp Test type 22mm Green 12VAC/DC |
| EKLD-22DLT-G-24 | LED Indicator Lamp Test type 22mm Green 24VAC/DC |
| EKLD-22DLT-G-48 | LED Indicator Lamp Test type 22mm Green 48VAC/DC |
| EKLD-22DLT-G-110 | LED Indicator Lamp Test type 22mm Green 110VAC/DC |
| EKLD-22DLT-G-220 | LED Indicator Lamp Test type 22mm Green 220VAC |
| EKLD-22DLT-G-220D | LED Indicator Lamp Test type 22mm Green 220VDC |
| EKLD-22DLT-G-230 | LED Indicator Lamp Test type 22mm Green 230VAC |
| EKLD-22DLT-G-380 | LED Indicator Lamp Test type 22mm Green 380VAC |
| EKLD-22DLT-B-12 | LED Indicator Lamp Test type 22mm Blue 12VAC/DC |
| EKLD-22DLT-B-24 | LED Indicator Lamp Test type 22mm Blue 24VAC/DC |
| EKLD-22DLT-B-48 | LED Indicator Lamp Test type 22mm Blue 48VAC/DC |
| EKLD-22DLT-B-110 | LED Indicator Lamp Test type 22mm Blue 110VAC/DC |
| EKLD-22DLT-B-220 | LED Indicator Lamp Test type 22mm Blue 220VAC |
| EKLD-22DLT-B-220D | LED Indicator Lamp Test type 22mm Blue 220VDC |
| EKLD-22DLT-B-230 | LED Indicator Lamp Test type 22mm Blue 230VAC |
| EKLD-22DLT-B-380 | LED Indicator Lamp Test type 22mm Blue 380VAC |
| EKLD-22DLT-W-12 | LED Indicator Lamp Test type 22mm White 12VAC/DC |
| EKLD-22DLT-W-24 | LED Indicator Lamp Test type 22mm White 24VAC/DC |
| EKLD-22DLT-W-48 | LED Indicator Lamp Test type 22mm White 48VAC/DC |
| EKLD-22DLT-W-110 | LED Indicator Lamp Test type 22mm White 110VAC/DC |
| EKLD-22DLT-W-220 | LED Indicator Lamp Test type 22mm White 220VAC |
| EKLD-22DLT-W-220D | LED Indicator Lamp Test type 22mm White 220VDC |
| EKLD-22DLT-W-230 | LED Indicator Lamp Test type 22mm White 230VAC |
| EKLD-22DLT-W-380 | LED Indicator Lamp Test type 22mm White 380VAC |
United States (English)
Russia (Pусский)
France (Français)
China (中文)
Spain (Español)
Germany (Deutsch)
Portugal (Português)
Slovakia (slovenský jazyk)
Australia (English)
New Zealand (English)
