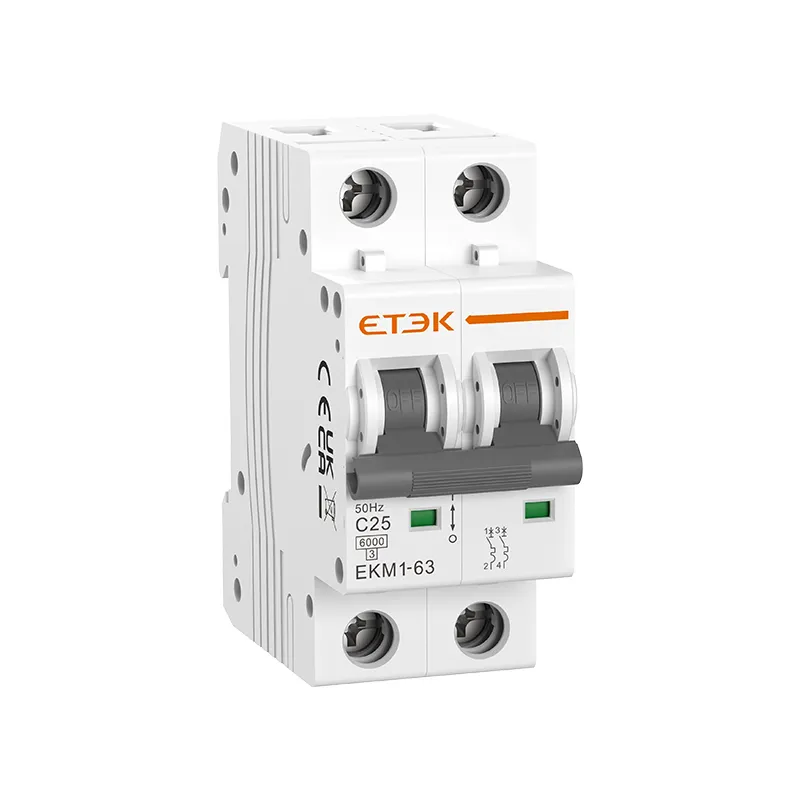

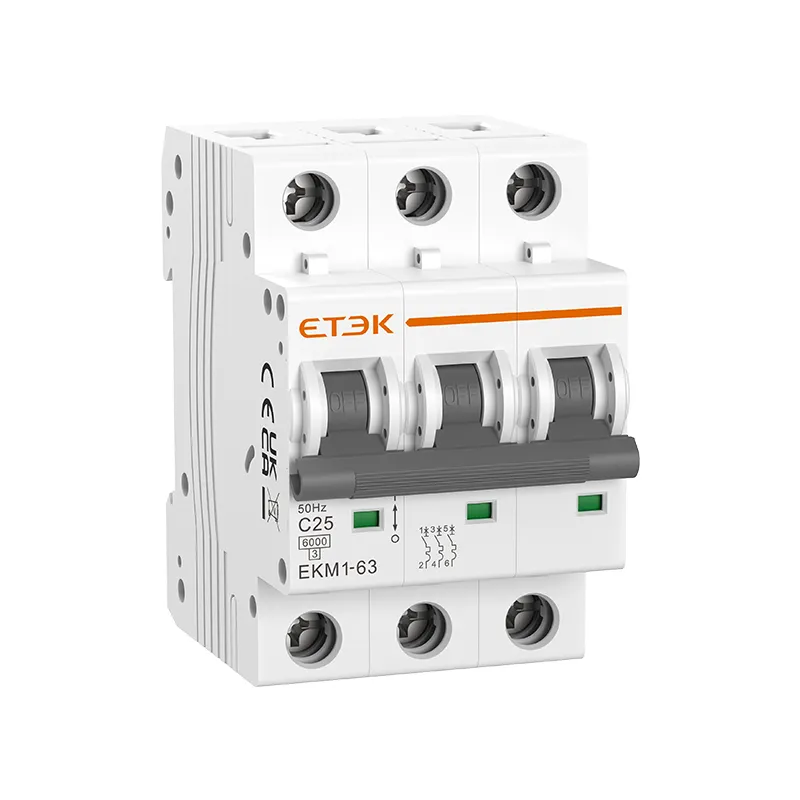

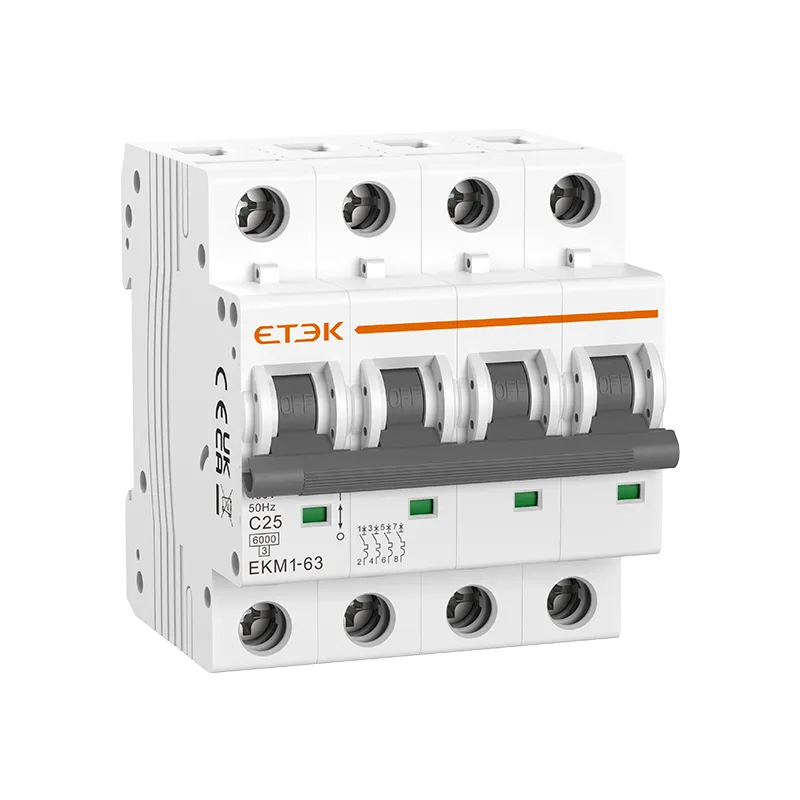

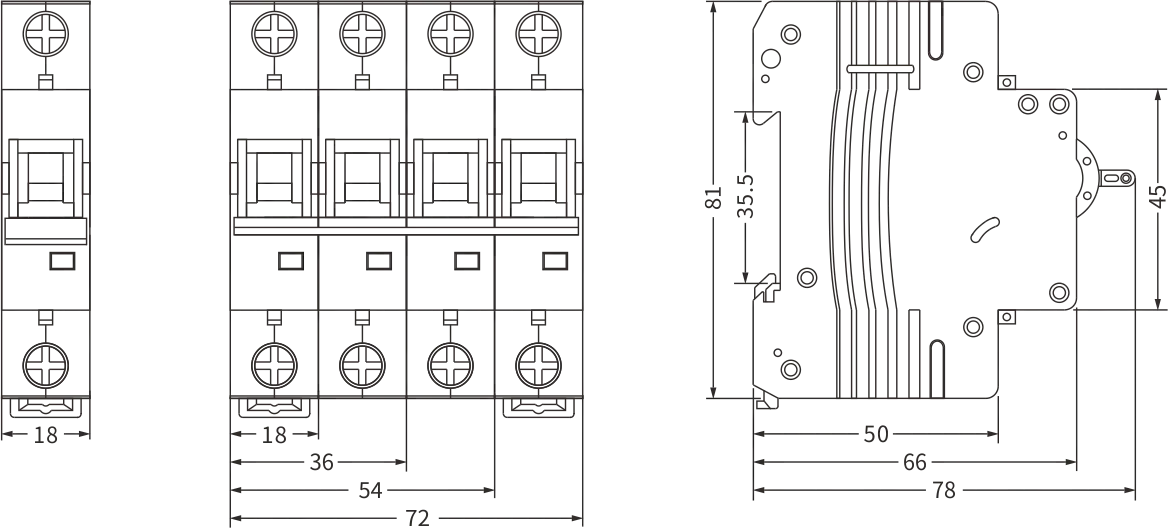

EKM2-63 6kA Leitungsschutzschalter MCB
Anfragen
EKM1-63 MCB hat eine viel längere Lebensdauer dank Energiespeicherantrieb; Gehäuse- und Funktionsteile aus importierten Kunststoffen mit flammhemmenden, hitzebeständigen und impulsfesten Eigenschaften; Höhere Strombegrenzungskapazität gewährleistet eine kostengünstige Produktpalette.
| Standard | IEC60898-1 |
| Schutz | Überstrom und Kurzschluss |
| Art der Reise | Thermomagnetisch |
| Nennstrom | 1,2,3,4,5,6,10,16,20,25,32,40,50,63A |
| Stangen | 1P, 1P+N, 2P, 3P, 3P+N, 4P |
| Nennspannung Ue | 240/415V |
| Isolationsspannung Ui | 500 V |
| Nennfrequenz | 50/60Hz |
| Nennausschaltvermögen | 6.000A |
| Energiebegrenzungsklasse | 3 |
| Bemessungsstoßspannungsfestigkeit (1,5/50) Uimp | 4.000 V |
| Dielektrische Prüfspannung bei ind. Freq. für 1 min | 2 kV |
| Verschmutzungsgrad | 2 |
| Thermische Auslösecharakteristik | (1,13-1,45) x Zoll |
| Magnetische Auslösecharakteristik | B: (3-5) x Ein, C: (5-10) x Ein, D: (10-20) x Ein |
| Elektrisches Leben | 4.000 Zyklen |
| Mechanische Lebensdauer | 10.000 Zyklen |
| Kontaktstellungsanzeige | Ja |
| Schutzgrad | IP20 |
| Referenztemperatur für die Einstellung von Thermoelementen | 30℃ |
| Umgebungstemperatur (mit Tagesdurchschnitt ≤35℃) | -5℃~+40℃, Max.95% Luftfeuchtigkeit |
| Terminal-Verbindungstyp | Kabel/Stiftsammelschiene |
| max. Anschlussgröße für Kabel | 25 mm 2 |
| max. Anzugsmoment | 2,5Nm |
| Montage | Montage auf 35 mm DIN-Schiene |
| Verbindung | Von oben und unten |
| EKM1-63 6KA Leistungsschalter | ||||
| Stangen | Nennstrom (A) | B-Kurve | C-Kurve | D-Kurve |
| 1p | 1a | EKM1-63-1B01 | EKM1-63-1C01 | EKM1-63-1D01 |
| 2a | EKM1-63-1B02 | EKM1-63-1C02 | EKM1-63-1D02 | |
| 3A | EKM1-63-1B03 | EKM1-63-1C03 | EKM1-63-1D03 | |
| 4a | EKM1-63-1B04 | EKM1-63-1C04 | EKM1-63-1D04 | |
| 5A | EKM1-63-1B05 | EKM1-63-1C05 | EKM1-63-1D05 | |
| 6A | EKM1-63-1B06 | EKM1-63-1C06 | EKM1-63-1D06 | |
| 10 A | EKM1-63-1B10 | EKM1-63-1C10 | EKM1-63-1D10 | |
| 16A | EKM1-63-1B16 | EKM1-63-1C16 | EKM1-63-1D16 | |
| 20A | EKM1-63-1B20 | EKM1-63-1C20 | EKM1-63-1D20 | |
| 25A | EKM1-63-1B25 | EKM1-63-1C25 | EKM1-63-1D25 | |
| 32A | EKM1-63-1B32 | EKM1-63-1C32 | EKM1-63-1D32 | |
| 40A | EKM1-63-1B40 | EKM1-63-1C40 | EKM1-63-1D40 | |
| 50A | EKM1-63-1B50 | EKM1-63-1C50 | EKM1-63-1D50 | |
| 63A | EKM1-63-1B63 | EKM1-63-1C63 | EKM1-63-1D63 | |
| 2p | 1a | EKM1-63-2B01 | EKM1-63-2C01 | EKM1-63-2D01 |
| 2a | EKM1-63-2B02 | EKM1-63-2C02 | EKM1-63-2D02 | |
| 3A | EKM1-63-2B03 | EKM1-63-2C03 | EKM1-63-2D03 | |
| 4a | EKM1-63-2B04 | EKM1-63-2C04 | EKM1-63-2D04 | |
| 5A | EKM1-63-2B05 | EKM1-63-2C05 | EKM1-63-2D05 | |
| 6A | EKM1-63-2B06 | EKM1-63-2C06 | EKM1-63-2D06 | |
| 10 A | EKM1-63-2B10 | EKM1-63-2C10 | EKM1-63-2D10 | |
| 16A | EKM1-63-2B16 | EKM1-63-2C16 | EKM1-63-2D16 | |
| 20A | EKM1-63-2B20 | EKM1-63-2C20 | EKM1-63-2D20 | |
| 25A | EKM1-63-2B25 | EKM1-63-2C25 | EKM1-63-2D25 | |
| 32A | EKM1-63-2B32 | EKM1-63-2C32 | EKM1-63-2D32 | |
| 40A | EKM1-63-2B40 | EKM1-63-2C40 | EKM1-63-2D40 | |
| 50A | EKM1-63-2B50 | EKM1-63-2C50 | EKM1-63-2D50 | |
| 63A | EKM1-63-2B63 | EKM1-63-2C63 | EKM1-63-2D63 | |
| 3p | 1a | EKM1-63-3B01 | EKM1-63-3C01 | EKM1-63-3D01 |
| 2a | EKM1-63-3B02 | EKM1-63-3C02 | EKM1-63-3D02 | |
| 3A | EKM1-63-3B03 | EKM1-63-3C03 | EKM1-63-3D03 | |
| 4a | EKM1-63-3B04 | EKM1-63-3C04 | EKM1-63-3D04 | |
| 5A | EKM1-63-3B05 | EKM1-63-3C05 | EKM1-63-3D05 | |
| 6A | EKM1-63-3B06 | EKM1-63-3C06 | EKM1-63-3D06 | |
| 10 A | EKM1-63-3B10 | EKM1-63-3C10 | EKM1-63-3D10 | |
| 16A | EKM1-63-3B16 | EKM1-63-3C16 | EKM1-63-3D16 | |
| 20A | EKM1-63-3B20 | EKM1-63-3C20 | EKM1-63-3D20 | |
| 25A | EKM1-63-3B25 | EKM1-63-3C25 | EKM1-63-3D25 | |
| 32A | EKM1-63-3B32 | EKM1-63-3C32 | EKM1-63-3D32 | |
| 40A | EKM1-63-3B40 | EKM1-63-3C40 | EKM1-63-3D40 | |
| 50A | EKM1-63-3B50 | EKM1-63-3C50 | EKM1-63-3D50 | |
| 63A | EKM1-63-3B63 | EKM1-63-3C63 | EKM1-63-3D63 | |
| 4p | 1a | EKM1-63-4B01 | EKM1-63-4C01 | EKM1-63-4D01 |
| 2a | EKM1-63-4B02 | EKM1-63-4C02 | EKM1-63-4D02 | |
| 3A | EKM1-63-4B03 | EKM1-63-4C03 | EKM1-63-4D03 | |
| 4a | EKM1-63-4B04 | EKM1-63-4C04 | EKM1-63-4D04 | |
| 5A | EKM1-63-4B05 | EKM1-63-4C05 | EKM1-63-4D05 | |
| 6A | EKM1-63-4B06 | EKM1-63-4C06 | EKM1-63-4D06 | |
| 10 A | EKM1-63-4B10 | EKM1-63-4C10 | EKM1-63-4D10 | |
| 16A | EKM1-63-4B16 | EKM1-63-4C16 | EKM1-63-4D16 | |
| 20A | EKM1-63-4B20 | EKM1-63-4C20 | EKM1-63-4D20 | |
| 25A | EKM1-63-4B25 | EKM1-63-4C25 | EKM1-63-4D25 | |
| 32A | EKM1-63-4B32 | EKM1-63-4C32 | EKM1-63-4D32 | |
| 40A | EKM1-63-4B40 | EKM1-63-4C40 | EKM1-63-4D40 | |
| 50A | EKM1-63-4B50 | EKM1-63-4C50 | EKM1-63-4D50 | |
| 63A | EKM1-63-4B63 | EKM1-63-4C63 | EKM1-63-4D63 | |
| 1P+N | 1a | EKM1-63-1NB01 | EKM1-63-1NC01 | EKM1-63-1ND01 |
| 2a | EKM1-63-1NB02 | EKM1-63-1NC02 | EKM1-63-1ND02 | |
| 3A | EKM1-63-1NB03 | EKM1-63-1NC03 | EKM1-63-1ND03 | |
| 4a | EKM1-63-1NB04 | EKM1-63-1NC04 | EKM1-63-1ND04 | |
| 5A | EKM1-63-1NB05 | EKM1-63-1NC05 | EKM1-63-1ND05 | |
| 6A | EKM1-63-1NB06 | EKM1-63-1NC06 | EKM1-63-1ND06 | |
| 10 A | EKM1-63-1NB10 | EKM1-63-1NC10 | EKM1-63-1ND10 | |
| 16A | EKM1-63-1NB16 | EKM1-63-1NC16 | EKM1-63-1ND16 | |
| 20A | EKM1-63-1NB20 | EKM1-63-1NC20 | EKM1-63-1ND20 | |
| 25A | EKM1-63-1NB25 | EKM1-63-1NC25 | EKM1-63-1ND25 | |
| 32A | EKM1-63-1NB32 | EKM1-63-1NC32 | EKM1-63-1ND32 | |
| 40A | EKM1-63-1NB40 | EKM1-63-1NC40 | EKM1-63-1ND40 | |
| 50A | EKM1-63-1NB50 | EKM1-63-1NC50 | EKM1-63-1ND50 | |
| 63A | EKM1-63-1NB63 | EKM1-63-1NC63 | EKM1-63-1ND63 | |
| 3P+N | 1a | EKM1-63-3NB01 | EKM1-63-3NC01 | EKM1-63-3ND01 |
| 2a | EKM1-63-3NB02 | EKM1-63-3NC02 | EKM1-63-3ND02 | |
| 3A | EKM1-63-3NB03 | EKM1-63-3NC03 | EKM1-63-3ND03 | |
| 4a | EKM1-63-3NB04 | EKM1-63-3NC04 | EKM1-63-3ND04 | |
| 5A | EKM1-63-3NB05 | EKM1-63-3NC05 | EKM1-63-3ND05 | |
| 6A | EKM1-63-3NB06 | EKM1-63-3NC06 | EKM1-63-3ND06 | |
| 10 A | EKM1-63-3NB10 | EKM1-63-3NC10 | EKM1-63-3ND10 | |
| 16A | EKM1-63-3NB16 | EKM1-63-3NC16 | EKM1-63-3ND16 | |
| 20A | EKM1-63-3NB20 | EKM1-63-3NC20 | EKM1-63-3ND20 | |
| 25A | EKM1-63-3NB25 | EKM1-63-3NC25 | EKM1-63-3ND25 | |
| 32A | EKM1-63-3NB32 | EKM1-63-3NC32 | EKM1-63-3ND32 | |
| 40A | EKM1-63-3NB40 | EKM1-63-3NC40 | EKM1-63-3ND40 | |
| 50A | EKM1-63-3NB50 | EKM1-63-3NC50 | EKM1-63-3ND50 | |
| 63A | EKM1-63-3NB63 | EKM1-63-3NC63 | EKM1-63-3ND63 | |
