EKM1-63S 4,5 kA Leitungsschutzschalter
Anfragen

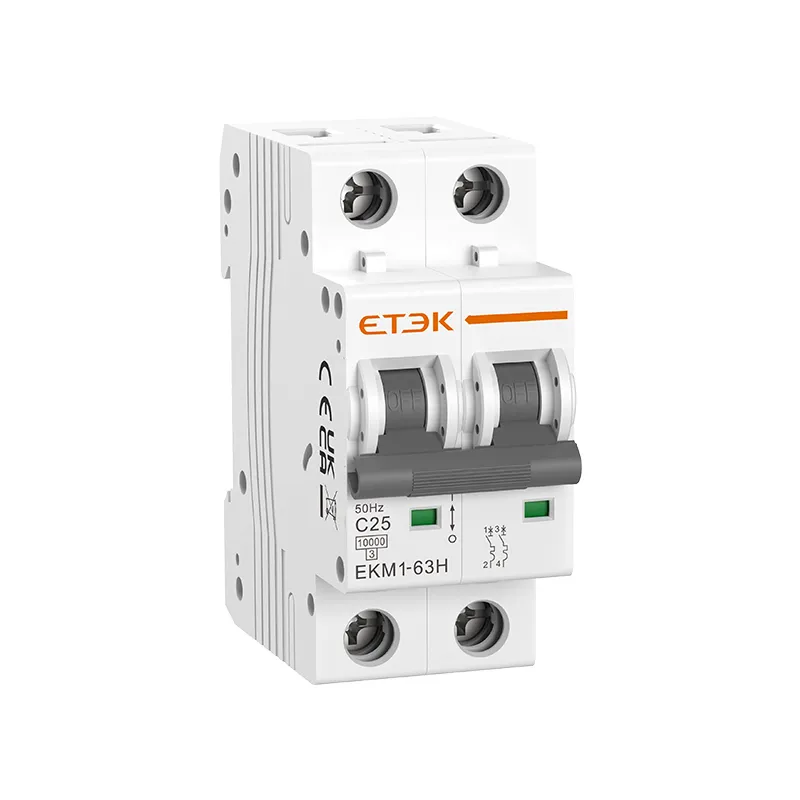

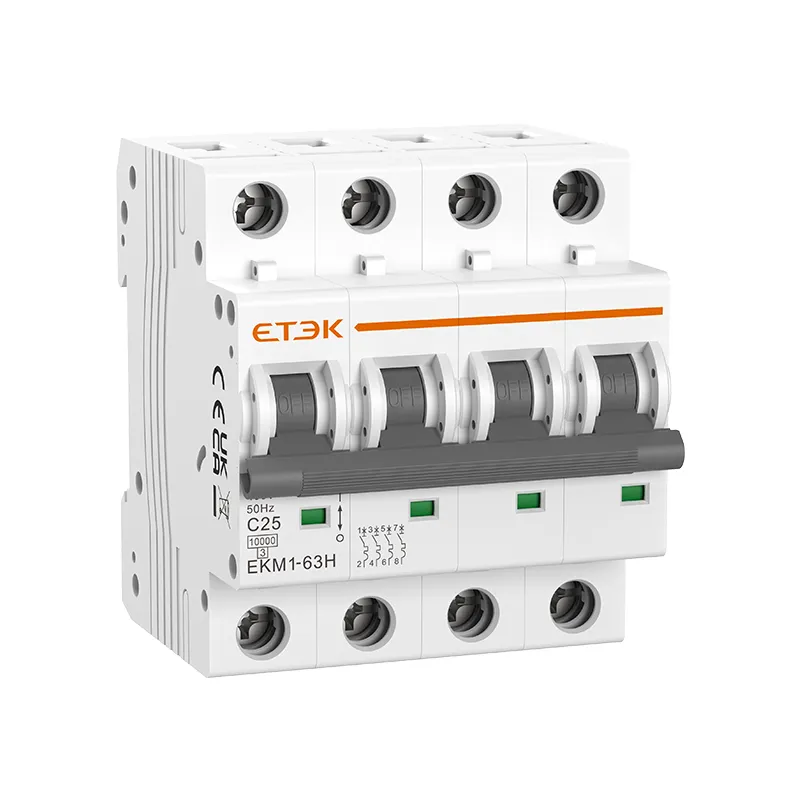

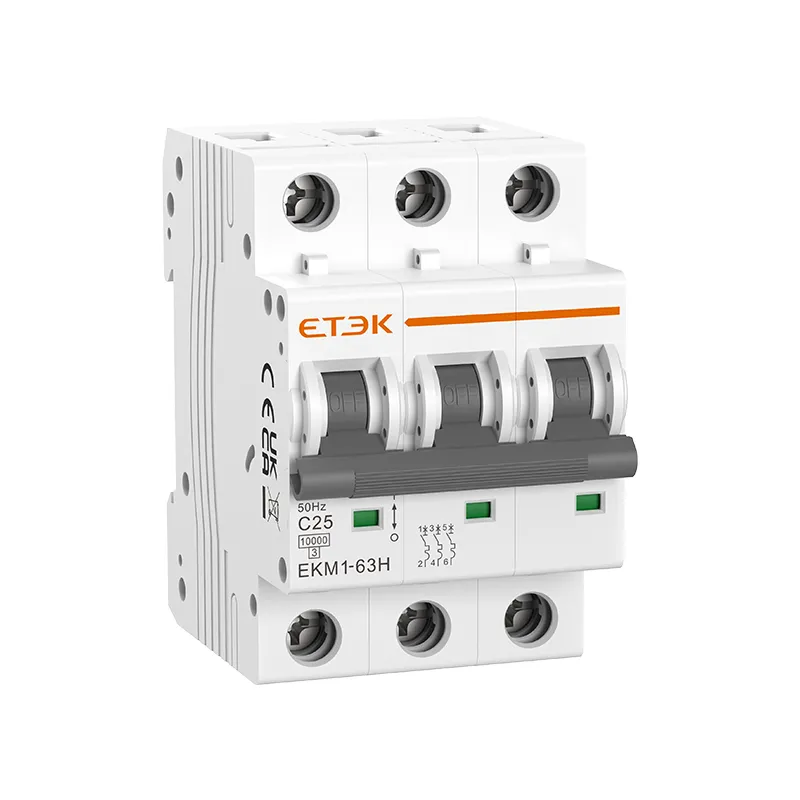

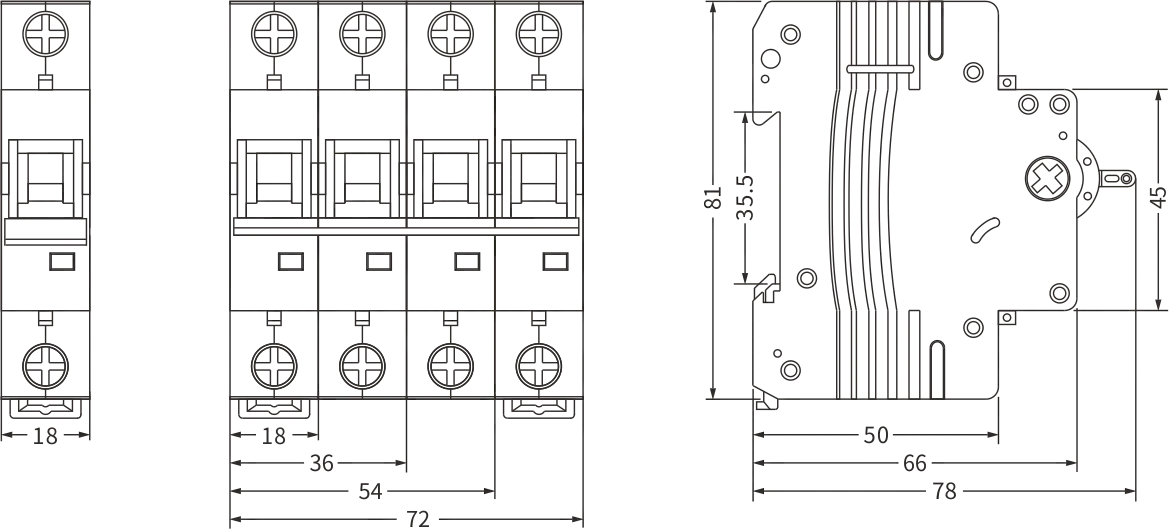

Der Leistungsschalter EKM1-63H zeichnet sich durch fortschrittliche Struktur, zuverlässige Leistung, hohe Schaltleistung (10 kA) und schönes Aussehen aus. Es wird hauptsächlich für AC 50 Hz oder 60 Hz, Nennspannung 400 V oder weniger und Nennbetriebsstrom 63 A oder weniger verwendet. Es wird für den Überlast- und Kurzschlussschutz von Beleuchtung, Verteilerleitungen, Geräten in Bürogebäuden, Wohngebäuden usw. verwendet. Es kann auch für seltene Ein-Aus-Operationen und die Umwandlung von Leitungen verwendet werden.
| Standard | IEC/EN60898-1 |
| Schutz | Überstrom und Kurzschluss |
| Art der Reise | Thermomagnetisch |
| Nennstrom Ein | 1,2,3,4,5,6,10,16,20,25,32,40,50,63A |
| Stangen | 1P, 1P+N, 2P, 3P, 3P+N, 4P |
| Nennspannung Ue | 240/415V |
| Isolationsspannung Ui | 500 V |
| Nennfrequenz | 50/60Hz |
| Nennausschaltvermögen | 10.000A |
| Energiebegrenzungsklasse | 3 |
| Bemessungsstoßspannungsfestigkeit (1,5/50) Uimp | 4.000 V |
| Dielektrische Prüfspannung bei ind. Freq. für 1 min | 2 kV |
| Thermische Auslösecharakteristik | (1,13-1,45) x Zoll |
| Magnetische Auslösecharakteristik | B: (3-5) x Ein, C: (5-10) x Ein, D: (10-20) x Ein |
| Elektrisches Leben | 4.000 Zyklen |
| Mechanische Lebensdauer | 10.000 Zyklen |
| Kontaktstellungsanzeige | Ja |
| Schutzgrad | IP20 |
| Umgebungstemperatur (mit Tagesdurchschnitt ≤35℃) | -5℃~+40℃, Max.95% Luftfeuchtigkeit |
| Terminal-Verbindungstyp | Kabel/Stiftsammelschiene |
| max. Anschlussgröße für Kabel | 25 mm 2 |
| max. Anzugsmoment | 2,5Nm |
| Montage | Montage auf 35 mm DIN-Schiene |
| Verbindung | Von oben und unten |
| EKM1-63H 10KA Leistungsschalter | ||||
| Stangen | Nennstrom (A) | B-Kurve | C-Kurve | D-Kurve |
| 1p | 1a | EKM1-63H-1B01 | EKM1-63H-1C01 | EKM1-63H-1D01 |
| 2a | EKM1-63H-1B02 | EKM1-63H-1C02 | EKM1-63H-1D02 | |
| 3A | EKM1-63H-1B03 | EKM1-63H-1C03 | EKM1-63H-1D03 | |
| 4a | EKM1-63H-1B04 | EKM1-63H-1C04 | EKM1-63H-1D04 | |
| 5A | EKM1-63H-1B05 | EKM1-63H-1C05 | EKM1-63H-1D05 | |
| 6A | EKM1-63H-1B06 | EKM1-63H-1C06 | EKM1-63H-1D06 | |
| 10 A | EKM1-63H-1B10 | EKM1-63H-1C10 | EKM1-63H-1D10 | |
| 16A | EKM1-63H-1B16 | EKM1-63H-1C16 | EKM1-63H-1D16 | |
| 20A | EKM1-63H-1B20 | EKM1-63H-1C20 | EKM1-63H-1D20 | |
| 25A | EKM1-63H-1B25 | EKM1-63H-1C25 | EKM1-63H-1D25 | |
| 32A | EKM1-63H-1B32 | EKM1-63H-1C32 | EKM1-63H-1D32 | |
| 40A | EKM1-63H-1B40 | EKM1-63H-1C40 | EKM1-63H-1D40 | |
| 50A | EKM1-63H-1B50 | EKM1-63H-1C50 | EKM1-63H-1D50 | |
| 63A | EKM1-63H-1B63 | EKM1-63H-1C63 | EKM1-63H-1D63 | |
| 2p | 1a | EKM1-63H-2B01 | EKM1-63H-2C01 | EKM1-63H-2D01 |
| 2a | EKM1-63H-2B02 | EKM1-63H-2C02 | EKM1-63H-2D02 | |
| 3A | EKM1-63H-2B03 | EKM1-63H-2C03 | EKM1-63H-2D03 | |
| 4a | EKM1-63H-2B04 | EKM1-63H-2C04 | EKM1-63H-2D04 | |
| 5A | EKM1-63H-2B05 | EKM1-63H-2C05 | EKM1-63H-2D05 | |
| 6A | EKM1-63H-2B06 | EKM1-63H-2C06 | EKM1-63H-2D06 | |
| 10 A | EKM1-63H-2B10 | EKM1-63H-2C10 | EKM1-63H-2D10 | |
| 16A | EKM1-63H-2B16 | EKM1-63H-2C16 | EKM1-63H-2D16 | |
| 20A | EKM1-63H-2B20 | EKM1-63H-2C20 | EKM1-63H-2D20 | |
| 25A | EKM1-63H-2B25 | EKM1-63H-2C25 | EKM1-63H-2D25 | |
| 32A | EKM1-63H-2B32 | EKM1-63H-2C32 | EKM1-63H-2D32 | |
| 40A | EKM1-63H-2B40 | EKM1-63H-2C40 | EKM1-63H-2D40 | |
| 50A | EKM1-63H-2B50 | EKM1-63H-2C50 | EKM1-63H-2D50 | |
| 63A | EKM1-63H-2B63 | EKM1-63H-2C63 | EKM1-63H-2D63 | |
| 3p | 1a | EKM1-63H-3B01 | EKM1-63H-3C01 | EKM1-63H-3D01 |
| 2a | EKM1-63H-3B02 | EKM1-63H-3C02 | EKM1-63H-3D02 | |
| 3A | EKM1-63H-3B03 | EKM1-63H-3C03 | EKM1-63H-3D03 | |
| 4a | EKM1-63H-3B04 | EKM1-63H-3C04 | EKM1-63H-3D04 | |
| 5A | EKM1-63H-3B05 | EKM1-63H-3C05 | EKM1-63H-3D05 | |
| 6A | EKM1-63H-3B06 | EKM1-63H-3C06 | EKM1-63H-3D06 | |
| 10 A | EKM1-63H-3B10 | EKM1-63H-3C10 | EKM1-63H-3D10 | |
| 16A | EKM1-63H-3B16 | EKM1-63H-3C16 | EKM1-63H-3D16 | |
| 20A | EKM1-63H-3B20 | EKM1-63H-3C20 | EKM1-63H-3D20 | |
| 25A | EKM1-63H-3B25 | EKM1-63H-3C25 | EKM1-63H-3D25 | |
| 32A | EKM1-63H-3B32 | EKM1-63H-3C32 | EKM1-63H-3D32 | |
| 40A | EKM1-63H-3B40 | EKM1-63H-3C40 | EKM1-63H-3D40 | |
| 50A | EKM1-63H-3B50 | EKM1-63H-3C50 | EKM1-63H-3D50 | |
| 63A | EKM1-63H-3B63 | EKM1-63H-3C63 | EKM1-63H-3D63 | |
| 4p | 1a | EKM1-63H-4B01 | EKM1-63H-4C01 | EKM1-63H-4D01 |
| 2a | EKM1-63H-4B02 | EKM1-63H-4C02 | EKM1-63H-4D02 | |
| 3A | EKM1-63H-4B03 | EKM1-63H-4C03 | EKM1-63H-4D03 | |
| 4a | EKM1-63H-4B04 | EKM1-63H-4C04 | EKM1-63H-4D04 | |
| 5A | EKM1-63H-4B05 | EKM1-63H-4C05 | EKM1-63H-4D05 | |
| 6A | EKM1-63H-4B06 | EKM1-63H-4C06 | EKM1-63H-4D06 | |
| 10 A | EKM1-63H-4B10 | EKM1-63H-4C10 | EKM1-63H-4D10 | |
| 16A | EKM1-63H-4B16 | EKM1-63H-4C16 | EKM1-63H-4D16 | |
| 20A | EKM1-63H-4B20 | EKM1-63H-4C20 | EKM1-63H-4D20 | |
| 25A | EKM1-63H-4B25 | EKM1-63H-4C25 | EKM1-63H-4D25 | |
| 32A | EKM1-63H-4B32 | EKM1-63H-4C32 | EKM1-63H-4D32 | |
| 40A | EKM1-63H-4B40 | EKM1-63H-4C40 | EKM1-63H-4D40 | |
| 50A | EKM1-63H-4B50 | EKM1-63H-4C50 | EKM1-63H-4D50 | |
| 63A | EKM1-63H-4B63 | EKM1-63H-4C63 | EKM1-63H-4D63 | |
| 1P+N | 1a | EKM1-63H-1NB01 | EKM1-63H-1NC01 | EKM1-63H-1ND01 |
| 2a | EKM1-63H-1NB02 | EKM1-63H-1NC02 | EKM1-63H-1ND02 | |
| 3A | EKM1-63H-1NB03 | EKM1-63H-1NC03 | EKM1-63H-1ND03 | |
| 4a | EKM1-63H-1NB04 | EKM1-63H-1NC04 | EKM1-63H-1ND04 | |
| 5A | EKM1-63H-1NB05 | EKM1-63H-1NC05 | EKM1-63H-1ND05 | |
| 6A | EKM1-63H-1NB06 | EKM1-63H-1NC06 | EKM1-63H-1ND06 | |
| 10 A | EKM1-63H-1NB10 | EKM1-63H-1NC10 | EKM1-63H-1ND10 | |
| 16A | EKM1-63H-1NB16 | EKM1-63H-1NC16 | EKM1-63H-1ND16 | |
| 20A | EKM1-63H-1NB20 | EKM1-63H-1NC20 | EKM1-63H-1ND20 | |
| 25A | EKM1-63H-1NB25 | EKM1-63H-1NC25 | EKM1-63H-1ND25 | |
| 32A | EKM1-63H-1NB32 | EKM1-63H-1NC32 | EKM1-63H-1ND32 | |
| 40A | EKM1-63H-1NB40 | EKM1-63H-1NC40 | EKM1-63H-1ND40 | |
| 50A | EKM1-63H-1NB50 | EKM1-63H-1NC50 | EKM1-63H-1ND50 | |
| 63A | EKM1-63H-1NB63 | EKM1-63H-1NC63 | EKM1-63H-1ND63 | |
| 3P+N | 1a | EKM1-63H-3NB01 | EKM1-63H-3NC01 | EKM1-63H-3ND01 |
| 2a | EKM1-63H-3NB02 | EKM1-63H-3NC02 | EKM1-63H-3ND02 | |
| 3A | EKM1-63H-3NB03 | EKM1-63H-3NC03 | EKM1-63H-3ND03 | |
| 4a | EKM1-63H-3NB04 | EKM1-63H-3NC04 | EKM1-63H-3ND04 | |
| 5A | EKM1-63H-3NB05 | EKM1-63H-3NC05 | EKM1-63H-3ND05 | |
| 6A | EKM1-63H-3NB06 | EKM1-63H-3NC06 | EKM1-63H-3ND06 | |
| 10 A | EKM1-63H-3NB10 | EKM1-63H-3NC10 | EKM1-63H-3ND10 | |
| 16A | EKM1-63H-3NB16 | EKM1-63H-3NC16 | EKM1-63H-3ND16 | |
| 20A | EKM1-63H-3NB20 | EKM1-63H-3NC20 | EKM1-63H-3ND20 | |
| 25A | EKM1-63H-3NB25 | EKM1-63H-3NC25 | EKM1-63H-3ND25 | |
| 32A | EKM1-63H-3NB32 | EKM1-63H-3NC32 | EKM1-63H-3ND32 | |
| 40A | EKM1-63H-3NB40 | EKM1-63H-3NC40 | EKM1-63H-3ND40 | |
| 50A | EKM1-63H-3NB50 | EKM1-63H-3NC50 | EKM1-63H-3ND50 | |
| 63A | EKM1-63H-3NB63 | EKM1-63H-3NC63 | EKM1-63H-3ND63 | |
