Thermomagnetische Schutzschalter sind automatisch betriebene elektrische Schalter, die vor Überstrom in Stromkreisen schützen. Diese Leistungsschalter haben eine einfache Funktionsweise; Sie beruhen auf zwei Schaltmechanismen (einem Elektromagneten und einem Bimetallstreifen), um einen Schutz vor Überstrom in Schaltkreisen zu bieten.
Der Elektromagnet reagiert empfindlich auf große elektrische Stromstöße und reagiert darauf, indem er den Stromfluss zur Komponente abschaltet. Im Gegensatz dazu dehnt sich der Bimetallstreifen aus, wenn er zu hohen elektrischen Strömen ausgesetzt wird. Dadurch biegt sich der Streifen in Richtung einer Auslösestange, die den Stromkreis ausschaltet. Wenn sich die Strompegel wieder normalisieren, kühlt der Streifen ab und wird zurückgesetzt, sodass der normale Betrieb fortgesetzt werden kann.
Schutzschalter mit Bimetall bieten zeitverzögerten Schutz, während solche mit Elektromagneten unverzögerten Schutz bieten. Da ein thermisch-magnetischer Schutzschalter diese beiden Technologien kombiniert, kann er je nach Anwendung sowohl unverzögerten als auch zeitverzögerten Schutz bieten. Ein unverzögerter Schutz eignet sich beispielsweise zum Unterbrechen extrem hoher Ströme, die tödlich sein können, während ein zeitverzögerter Schutz in elektrischen Geräten benötigt wird, die vorübergehend Ströme ziehen, die ihre Nennwerte überschreiten.
● Höhe bis zu 2000 m;
● Die mittlere Umgebungstemperatur sollte zwischen -5℃ und +40℃ (+45℃ für Meeresprodukte) liegen;
● Es kann der Wirkung von feuchter Luft widerstehen;
● Es kann der Wirkung von Schimmelpilzen widerstehen;
● Es kann der Wirkung nuklearer Strahlung standhalten;
● Die maximale Neigung beträgt 22,5℃.
● Es kann immer noch zuverlässig funktionieren, wenn das Schiff normalen Vibrationen ausgesetzt ist;
● Es kann immer noch zuverlässig funktionieren, wenn das Produkt Erdbeben ausgesetzt ist (4g).
● Orte, an denen das umgebende Medium frei von Explosionsgefahr ist und weit entfernt von Gas oder leitfähigem Staub, die das Metall erodieren oder die Isolierung zerstören würden;
● Von Regen oder Schnee fernhalten.
EKM8 | 125 | C | P | 4 | |||
↓ | ↓ | ↓ | ↓ | ↓ | |||
Produktcode | Rahmengröße | Aktuelle Klasse | Code der Quellenspannung des Steuerkreises | Polzahl | |||
Geformtes Gehäuse Leistungsschalter | 125 160 250 400 630 800 Notiz: 125 ist ein verbesserter Typ des 63-Rahmens 160 ist ein verbesserter Typ von 100 Rahmen 250 ist ein verbesserter Typ des 225-Rahmens 630 ist ein verbesserter Typ des 400-Rahmens | C | S | H | P: elektrischer Betrieb Z: Drehgriff W: Direktbetrieb | 3: 3-polig 4: 4-polig | |
125 | 15/10 | 18/15 | 28/18 | ||||
160 | 20/15 | 25/18 | 35/25 | ||||
250 | 25/15 | 25/18 | 35/25 | ||||
400 | 35/25 | 50/35 | |||||
630 | 35/25 | 50/35 | |||||
800 | 50/35 | 65/50 |
300 | 125A | 2 | A | |
↓ | ↓ | ↓ | ↓ | |
Auslösetyp und internes Zubehör | Nennstrom (A) | Anwendung | Code des vierpoligen Produkts | |
Die erste Ziffer steht für den Freigabetyp 2: Hat nur sofortige Freigabe 3: Komplexe Freigabe Hinweis: Die späteren zwei Ziffern sind der Zubehörcode (siehe Zubehörtabelle) | 125 | 10, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125 | 1: Stromverteilung 2: Motorschutz | A: N-Pol ohne Schutz kann nicht schließen oder öffnen B: N-Pol ohne Schutz kann schließen und öffnen C: N-Pol mit Schutz kann schließen und öffnen D: N-Pol mit Schutz kann nicht schließen oder öffnen |
160 | 63, 80, 100, 125, 140, 160 | |||
250 | 100, 125, 140, 160, 180, 200, 225, 250 | |||
400 | 250, 300, 315, 350, 400 | |||
630 | 400, 500, 630 | |||
800 | 500, 630, 700, 800 |
Q1 | D1 | Q | 2 | |||
↓ | ↓ | ↓ | ↓ | |||
Zubehörspannung | Elektrische Betriebsspannung | Installationsmethoden | Verdrahtungsplatte installieren oder nicht | |||
Unterspannungsauslöser | Arbeitsstromauslöser | Hilfsalarm | DC1 Elektrischer Betrieb | DC3 Elektrischer Betrieb | F: Frontplatte H: Rückwand C: Plug-in-Typ | 1: Nein 2: Ja |
Q1: AC220V | F1: AC220V | J1: AC125V | D1: AC220V | D5: AC230V | ||
Q2: AC240V | F2: AC380V | J2: AC250V | D2: AC230V | D6: AC110V | ||
Q3: AC380V | F3: DC110V | J3: DC125V | D3: AC380V | D7: DC220 | ||
Q4: AC415V | F4: DC24V | J4: DC24V | D4: AC400V | D8: DC110 | ||
D9: AC110-240V | ||||||
D10: DC100-220V | ||||||
Notiz: Anpassbare Spannungen für zwei Elektriken Operationen. Bitte wende dich an die Einführung von externem Zubehör. |
Rahmenstrom (A) | 125 | 160 | |||||

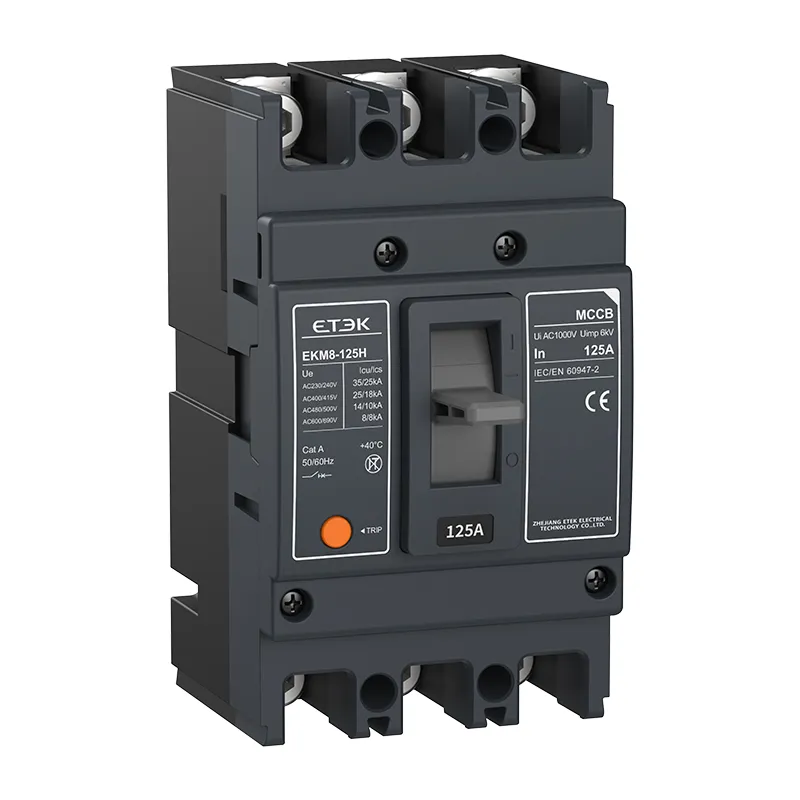

Modell | EKM8-125C | EKM8-125S | EKM8-125H | EKM8-160C | EKM8-160S | EKM8-160H | |
Polzahl | 1, 2, 3, 4 | 2, 3, 4 | |||||
Nennstrom (A) | 10, 16, 20, 32, 25, 40, 50, 63, 80, 100, 125 | 63, 80, 100, 125, 140, 160 | |||||
Nennspannung (V) | AC400V | AC400V | |||||
Nennisolationsspannung (V) | AC1000V | AC1000V | |||||
Kurzschlussausschaltvermögen (KA)Icu/Ics | AC400V | 15/10 | 18/15 | 25/18 | 20/15 | 25/18 | 35/25 |
Betriebszyklusnummer | Elektrisches Leben | 6000 | 3000 | ||||
Mechanische Lebensdauer | 9000 | 7000 | |||||
Umrissmaß (mm) | 1 P | 25-130-68-90 | - | - | - | ||
2P | 50-130-68-90 | 60-155-68-90 | 60-155-88-115 | ||||
3P | 75-130-68-90 | 90-155-68-90 | 90-155-88-115 | ||||
4P | 100-130-68-90 | 120-155-68-90 | 120-155-88-115 | ||||
Gewicht (kg) | 1 P | 0,32 | - | - | - | ||
2P | 0,5 | 0,55 | 1 | 1.1 | |||
3P | 0,55 | 0,65 | 1.1 | 1.2 | |||
4P | 0,65 | 0,8 | 1.4 | 1.5 | |||
Elektrisches Betriebsgerät (MD) | ● | ||||||
Externer Fahrgriff | ● | ||||||
Automatische Freigabe | Thermischer elektromagnetischer Typ |
Rahmenstrom (A) | 250 | 400 | |||||
Modell | EKM8-250C | EKM8-250S | EKM8-250H | EKM8-400S | EKM8-400H | ||
Polzahl | 3, 4 | 3, 4 | |||||
Nennstrom (A) | 100, 125, 140, 160, 180, 200, 225, 250 | 250.315.350.400 | |||||
Nennspannung (V) | AC400V | AC400V | |||||
Nennisolationsspannung (V) | AC1000V | AC1000V | |||||
Kurzschlussausschaltvermögen (KA)Icu/Ics | AC400V | 25/15 | 25/18 | 35/25 | 35/25 | 50/35 | |
Betriebszyklusnummer | Elektrisches Leben | 3000 | 2000 | ||||
Mechanische Lebensdauer | 7000 | 4000 | |||||
Umrissmaß (mm) | |||||||
3P | 105-165-68-92 | 105-165-88-115 | 140-257-103-155 | ||||
4P | 140-165-68-92 | 140-165-88-115 | 184-257-103-155 | ||||
Gewicht (kg) | |||||||
2P | 1.5 | 1.7 | 5.5 | ||||
3P | 1.9 | 2.1 | 7 | ||||
Elektrisches Betriebsgerät (MD) | ● | ||||||
Externer Fahrgriff | ● | ||||||
Automatische Freigabe | Thermischer elektromagnetischer Typ |
Rahmenstrom (A) | 630 | 800 | |||||||||

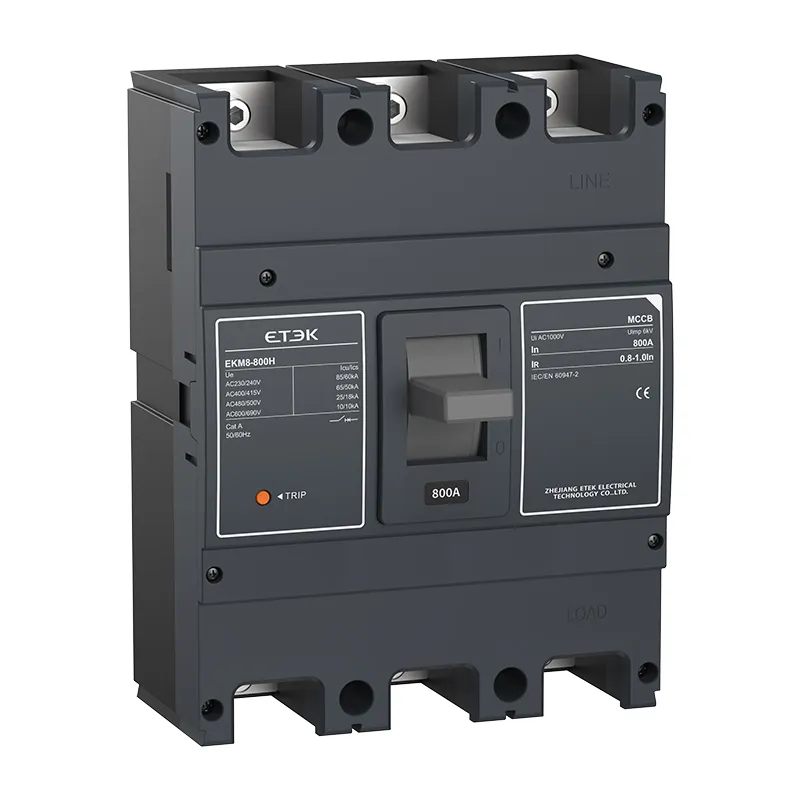

Modell | EKM8-630S | EKM8-630H | EKM8-800S | EKM8-800H | |||||||
Polzahl | 3, 4 | 3, 4 | |||||||||
Nennstrom (A) | 250, 315, 350, 400, 500, 630 | 500, 630, 700, 800, 1000, 1250 | |||||||||
Nennspannung (V) | AC400V | AC400V | |||||||||
Nennisolationsspannung (V) | AC1000V | AC1000V | |||||||||
Kurzschlussausschaltvermögen (KA)Icu/Ics | AC400V | 35/25 | 50/35 | 50/35 | 65/65 | ||||||
Betriebszyklusnummer |
| 2000 | 1500 | ||||||||
Mechanische Lebensdauer | 4000 | 4000 | |||||||||
Umrissmaß (mm) abc-ca | |||||||||||
3P | 140-257-103-155 | 210-275-103-155 | |||||||||
4P | 184-257-103-155 | 280-275-103-155 | |||||||||
Gewicht (kg) | |||||||||||
2P | 5.7 | 9.5 | |||||||||
3P | 7.5 | 12.5 | |||||||||
Elektrisches Betriebsgerät (MD) | ● | ||||||||||
Externer Fahrgriff | ● | ||||||||||
Automatische Freigabe | Thermischer elektromagnetischer Typ |
Referenznummer. | Spezifikation |
EKM8-125S-1-0010 | Thermisch-magnetischer Typ MCCB 1P 10A ICU/ICS:18/15KA |
EKM8-125S-1-0016 | Thermisch-magnetischer Typ MCCB 1P 16A ICU/ICS:18/15KA |
EKM8-125S-1-0020 | Thermisch-magnetischer Typ MCCB 1P 20A ICU/ICS:18/15KA |
EKM8-125S-1-0025 | Thermisch-magnetischer Typ MCCB 1P 25A ICU/ICS:18/15KA |
EKM8-125S-1-0032 | Thermisch-magnetischer Typ MCCB 1P 32A ICU/ICS:18/15KA |
EKM8-125S-1-0040 | Thermisch-magnetischer Typ MCCB 1P 40A ICU/ICS:18/15KA |
EKM8-125S-1-0050 | Thermisch-magnetischer Typ MCCB 1P 50A ICU/ICS:18/15KA |
EKM8-125S-1-0063 | Thermisch-magnetischer Typ MCCB 1P 63A ICU/ICS:18/15KA |
EKM8-125S-1-0080 | Thermisch-magnetischer Typ MCCB 1P 80A ICU/ICS:18/15KA |
EKM8-125S-1-0100 | Thermisch-magnetischer Typ MCCB 1P 100A ICU/ICS:18/15KA |
EKM8-125S-1-0125 | Thermisch-magnetischer Typ MCCB 1P 125A ICU/ICS:18/15KA |
EKM8-125S-2-0010 | Thermomagnetischer Typ MCCB 2P 10A ICU/ICS:18/15KA |
EKM8-125S-2-0016 | Thermisch-magnetischer Typ MCCB 2P 16A ICU/ICS:18/15KA |
EKM8-125S-2-0020 | Thermisch-magnetischer Typ MCCB 2P 20A ICU/ICS:18/15KA |
EKM8-125S-2-0025 | Thermisch-magnetischer Typ MCCB 2P 25A ICU/ICS:18/15KA |
EKM8-125S-2-0032 | Thermisch-magnetischer Typ MCCB 2P 32A ICU/ICS:18/15KA |
EKM8-125S-2-0040 | Thermisch-magnetischer Typ MCCB 2P 40A ICU/ICS:18/15KA |
EKM8-125S-2-0050 | Thermisch-magnetischer Typ MCCB 2P 50A ICU/ICS:18/15KA |
EKM8-125S-2-0063 | Thermomagnetischer Typ MCCB 2P 63A ICU/ICS:18/15KA |
EKM8-125S-2-0080 | Thermisch-magnetischer Typ MCCB 2P 80A ICU/ICS:18/15KA |
EKM8-125S-2-0100 | Thermisch-magnetischer Typ MCCB 2P 100A ICU/ICS:18/15KA |
EKM8-125S-2-0125 | Thermisch-magnetischer Typ MCCB 2P 125A ICU/ICS:18/15KA |
EKM8-125S-3-0010 | Thermisch-magnetischer Typ MCCB 3P 10A ICU/ICS:18/15KA |
EKM8-125S-3-0016 | Thermisch-magnetischer Typ MCCB 3P 16A ICU/ICS:18/15KA |
EKM8-125S-3-0020 | Thermisch-magnetischer Typ MCCB 3P 20A ICU/ICS:18/15KA |
EKM8-125S-3-0025 | Thermisch-magnetischer Typ MCCB 3P 25A ICU/ICS:18/15KA |
EKM8-125S-3-0032 | Thermisch-magnetischer Typ MCCB 3P 32A ICU/ICS:18/15KA |
EKM8-125S-3-0040 | Thermisch-magnetischer Typ MCCB 3P 40A ICU/ICS:18/15KA |
EKM8-125S-3-0050 | Thermisch-magnetischer Typ MCCB 3P 50A ICU/ICS:18/15KA |
EKM8-125S-3-0063 | Thermisch-magnetischer Typ MCCB 3P 63A ICU/ICS:18/15KA |
EKM8-125S-3-0080 | Thermomagnetischer Typ MCCB 3P 80A ICU/ICS:18/15KA |
EKM8-125S-3-0100 | Thermisch-magnetischer Typ MCCB 3P 100A ICU/ICS:18/15KA |
EKM8-125S-3-0125 | Thermisch-magnetischer Typ MCCB 3P 125A ICU/ICS:18/15KA |
EKM8-125S-4-0010 | Thermisch-magnetischer Typ MCCB 4P 10A ICU/ICS:18/15KA |
EKM8-125S-4-0016 | Thermisch-magnetischer Typ MCCB 4P 16A ICU/ICS:18/15KA |
EKM8-125S-4-0020 | Thermomagnetischer Typ MCCB 4P 20A ICU/ICS:18/15KA |
EKM8-125S-4-0025 | Thermisch-magnetischer Typ MCCB 4P 25A ICU/ICS:18/15KA |
EKM8-125S-4-0032 | Thermisch-magnetischer Typ MCCB 4P 32A ICU/ICS:18/15KA |
EKM8-125S-4-0040 | Thermisch-magnetischer Typ MCCB 4P 40A ICU/ICS:18/15KA |
EKM8-125S-4-0050 | Thermisch-magnetischer Typ MCCB 4P 50A ICU/ICS:18/15KA |
EKM8-125S-4-0063 | Thermisch-magnetischer Typ MCCB 4P 63A ICU/ICS:18/15KA |
EKM8-125S-4-0080 | Thermisch-magnetischer Typ MCCB 4P 80A ICU/ICS:18/15KA |
EKM8-125S-4-0100 | Thermisch-magnetischer Typ MCCB 4P 100A ICU/ICS:18/15KA |
EKM8-125S-4-0125 | Thermomagnetischer Typ MCCB 4P 125A ICU/ICS:18/15KA |
EKM8-125H-3-0010 | Thermisch-magnetischer Typ MCCB 3P 10A ICU/ICS:25/18KA |
EKM8-125H-3-0016 | Thermisch-magnetischer Typ MCCB 3P 16A ICU/ICS:25/18KA |
EKM8-125H-3-0020 | Thermisch-magnetischer Typ MCCB 3P 20A ICU/ICS:25/18KA |
EKM8-125H-3-0025 | Thermisch-magnetischer Typ MCCB 3P 25A ICU/ICS:25/18KA |
EKM8-125H-3-0032 | Thermisch-magnetischer Typ MCCB 3P 32A ICU/ICS:25/18KA |
EKM8-125H-3-0040 | Thermisch-magnetischer Typ MCCB 3P 40A ICU/ICS:25/18KA |
EKM8-125H-3-0050 | Thermisch-magnetischer Typ MCCB 3P 50A ICU/ICS:25/18KA |
EKM8-125H-3-0063 | Thermomagnetischer Typ MCCB 3P 63A ICU/ICS:25/18KA |
EKM8-125H-3-0080 | Thermisch-magnetischer Typ MCCB 3P 80A ICU/ICS:25/18KA |
EKM8-125H-3-0100 | Thermisch-magnetischer Typ MCCB 3P 100A ICU/ICS:25/18KA |
EKM8-125H-3-0125 | Thermomagnetischer Typ MCCB 3P 125A ICU/ICS:25/18KA |
EKM8-125H-4-0010 | Thermisch-magnetischer Typ MCCB 4P 10A ICU/ICS:25/18KA |
EKM8-125H-4-0016 | Thermisch-magnetischer Typ MCCB 4P 16A ICU/ICS:25/18KA |
EKM8-125H-4-0020 | Thermisch-magnetischer Typ MCCB 4P 20A ICU/ICS:25/18KA |
EKM8-125H-4-0025 | Thermisch-magnetischer Typ MCCB 4P 25A ICU/ICS:25/18KA |
EKM8-125H-4-0032 | Thermisch-magnetischer Typ MCCB 4P 32A ICU/ICS:25/18KA |
EKM8-125H-4-0040 | Thermisch-magnetischer Typ MCCB 4P 40A ICU/ICS:25/18KA |
EKM8-125H-4-0050 | Thermisch-magnetischer Typ MCCB 4P 50A ICU/ICS:25/18KA |
EKM8-125H-4-0063 | Thermisch-magnetischer Typ MCCB 4P 63A ICU/ICS:25/18KA |
EKM8-125H-4-0080 | Thermisch-magnetischer Typ MCCB 4P 80A ICU/ICS:25/18KA |
EKM8-125H-4-0100 | Thermisch-magnetischer Typ MCCB 4P 100A ICU/ICS:25/18KA |
EKM8-125H-4-0125 | Thermisch-magnetischer Typ MCCB 4P 125A ICU/ICS:25/18KA |
EKM8-160S-2-0063 | Thermisch-magnetischer Typ MCCB 2P 63A ICU/ICS:25/18KA |
EKM8-160S-2-0080 | Thermisch-magnetischer Typ MCCB 2P 80A ICU/ICS:25/18KA |
EKM8-160S-2-0100 | Thermisch-magnetischer Typ MCCB 2P 100A ICU/ICS:25/18KA |
EKM8-160S-2-0125 | Thermisch-magnetischer Typ MCCB 2P 125A ICU/ICS:25/18KA |
EKM8-160S-2-0140 | Thermisch-magnetischer Typ MCCB 2P 140A ICU/ICS:25/18KA |
EKM8-160S-2-0160 | Thermisch-magnetischer Typ MCCB 2P 160A ICU/ICS:25/18KA |
EKM8-160S-3-0063 | Thermomagnetischer Typ MCCB 3P 63A ICU/ICS:25/18KA |
EKM8-160S-3-0080 | Thermisch-magnetischer Typ MCCB 3P 80A ICU/ICS:25/18KA |
EKM8-160S-3-0100 | Thermisch-magnetischer Typ MCCB 3P 100A ICU/ICS:25/18KA |
EKM8-160S-3-0125 | Thermomagnetischer Typ MCCB 3P 125A ICU/ICS:25/18KA |
EKM8-160S-3-0140 | Thermisch-magnetischer Typ MCCB 3P 140A ICU/ICS:25/18KA |
EKM8-160S-3-0160 | Thermisch-magnetischer Typ MCCB 3P 160A ICU/ICS:25/18KA |
EKM8-160S-4-0063 | Thermisch-magnetischer Typ MCCB 4P 63A ICU/ICS:25/18KA |
EKM8-160S-4-0080 | Thermisch-magnetischer Typ MCCB 4P 80A ICU/ICS:25/18KA |
EKM8-160S-4-0100 | Thermisch-magnetischer Typ MCCB 4P 100A ICU/ICS:25/18KA |
EKM8-160S-4-0125 | Thermisch-magnetischer Typ MCCB 4P 125A ICU/ICS:25/18KA |
EKM8-160S-4-0140 | Thermisch-magnetischer Typ MCCB 4P 140A ICU/ICS:25/18KA |
EKM8-160S-4-0160 | Thermisch-magnetischer Typ MCCB 4P 160A ICU/ICS:25/18KA |
EKM8-160H-3-0063 | Thermisch-magnetischer Typ MCCB 3P 63A ICU/ICS:35/25KA |
EKM8-160H-3-0080 | Thermisch-magnetischer Typ MCCB 3P 80A ICU/ICS:35/25KA |
EKM8-160H-3-0100 | Thermisch-magnetischer Typ MCCB 3P 100A ICU/ICS:35/25KA |
EKM8-160H-3-0125 | Thermisch-magnetischer Typ MCCB 3P 125A ICU/ICS:35/25KA |
EKM8-160H-3-0140 | Thermisch-magnetischer Typ MCCB 3P 140A ICU/ICS:35/25KA |
EKM8-160H-3-0160 | Thermisch-magnetischer Typ MCCB 3P 160A ICU/ICS:35/25KA |
EKM8-160H-4-0063 | Thermisch-magnetischer Typ MCCB 4P 63A ICU/ICS:35/25KA |
EKM8-160H-4-0080 | Thermisch-magnetischer Typ MCCB 4P 80A ICU/ICS:35/25KA |
EKM8-160H-4-0100 | Thermisch-magnetischer Typ MCCB 4P 100A ICU/ICS:35/25KA |
EKM8-160H-4-0125 | Thermisch-magnetischer Typ MCCB 4P 125A ICU/ICS:35/25KA |
EKM8-160H-4-0140 | Thermisch-magnetischer Typ MCCB 4P 140A ICU/ICS:35/25KA |
EKM8-160H-4-0160 | Thermisch-magnetischer Typ MCCB 4P 160A ICU/ICS:35/25KA |
EKM8-250S-3-0100 | Thermisch-magnetischer Typ MCCB 3P 100A ICU/ICS:25/18KA |
EKM8-250S-3-0125 | Thermomagnetischer Typ MCCB 3P 125A ICU/ICS:25/18KA |
EKM8-250S-3-0140 | Thermisch-magnetischer Typ MCCB 3P 140A ICU/ICS:25/18KA |
EKM8-250S-3-0160 | Thermisch-magnetischer Typ MCCB 3P 160A ICU/ICS:25/18KA |
EKM8-250S-3-0180 | Thermisch-magnetischer Typ MCCB 3P 180A ICU/ICS:25/18KA |
EKM8-250S-3-0200 | Thermisch-magnetischer Typ MCCB 3P 200A ICU/ICS:25/18KA |
EKM8-250S-3-0225 | Thermisch-magnetischer Typ MCCB 3P 225A ICU/ICS:25/18KA |
EKM8-250S-3-0250 | Thermisch-magnetischer Typ MCCB 3P 250A ICU/ICS:25/18KA |
EKM8-250S-4-0100 | Thermisch-magnetischer Typ MCCB 4P 100A ICU/ICS:25/18KA |
EKM8-250S-4-0125 | Thermisch-magnetischer Typ MCCB 4P 125A ICU/ICS:25/18KA |
EKM8-250S-4-0140 | Thermisch-magnetischer Typ MCCB 4P 140A ICU/ICS:25/18KA |
EKM8-250S-4-0160 | Thermisch-magnetischer Typ MCCB 4P 160A ICU/ICS:25/18KA |
EKM8-250S-4-0180 | Thermisch-magnetischer Typ MCCB 4P 180A ICU/ICS:25/18KA |
EKM8-250S-4-0200 | Thermisch-magnetischer Typ MCCB 4P 200A ICU/ICS:25/18KA |
EKM8-250S-4-0225 | Thermisch-magnetischer Typ MCCB 4P 225A ICU/ICS:25/18KA |
EKM8-250S-4-0250 | Thermisch-magnetischer Typ MCCB 4P 250A ICU/ICS:25/18KA |
EKM8-250H-3-0100 | Thermisch-magnetischer Typ MCCB 3P 100A ICU/ICS:35/25KA |
EKM8-250H-3-0125 | Thermisch-magnetischer Typ MCCB 3P 125A ICU/ICS:35/25KA |
EKM8-250H-3-0140 | Thermisch-magnetischer Typ MCCB 3P 140A ICU/ICS:35/25KA |
EKM8-250H-3-0160 | Thermisch-magnetischer Typ MCCB 3P 160A ICU/ICS:35/25KA |
EKM8-250H-3-0180 | Thermisch-magnetischer Typ MCCB 3P 180A ICU/ICS:35/25KA |
EKM8-250H-3-0200 | Thermisch-magnetischer Typ MCCB 3P 200A ICU/ICS:35/25KA |
EKM8-250H-3-0225 | Thermisch-magnetischer Typ MCCB 3P 225A ICU/ICS:35/25KA |
EKM8-250H-3-0250 | Thermisch-magnetischer Typ MCCB 3P 250A ICU/ICS:35/25KA |
EKM8-250H-4-0100 | Thermisch-magnetischer Typ MCCB 4P 100A ICU/ICS:35/25KA |
EKM8-250H-4-0125 | Thermisch-magnetischer Typ MCCB 4P 125A ICU/ICS:35/25KA |
EKM8-250H-4-0140 | Thermisch-magnetischer Typ MCCB 4P 140A ICU/ICS:35/25KA |
EKM8-250H-4-0160 | Thermisch-magnetischer Typ MCCB 4P 160A ICU/ICS:35/25KA |
EKM8-250H-4-0180 | Thermisch-magnetischer Typ MCCB 4P 180A ICU/ICS:35/25KA |
EKM8-250H-4-0200 | Thermisch-magnetischer Typ MCCB 4P 200A ICU/ICS:35/25KA |
EKM8-250H-4-0225 | Thermisch-magnetischer Typ MCCB 4P 225A ICU/ICS:35/25KA |
EKM8-250H-4-0250 | Thermisch-magnetischer Typ MCCB 4P 250A ICU/ICS:35/25KA |
EKM8-400H-3-0250 | Thermisch-magnetischer Typ MCCB 3P 250A ICU/ICS:50/35KA |
EKM8-400H-3-0315 | Thermomagnetischer Typ MCCB 3P 315A ICU/ICS:50/35KA |
EKM8-400H-3-0350 | Thermisch-magnetischer Typ MCCB 3P 350A ICU/ICS:50/35KA |
EKM8-400H-3-0400 | Thermisch-magnetischer Typ MCCB 3P 400A ICU/ICS:50/35KA |
EKM8-400H-4-0250 | Thermisch-magnetischer Typ MCCB 4P 250A ICU/ICS:50/35KA |
EKM8-400H-4-0315 | Thermomagnetischer Typ MCCB 4P 315A ICU/ICS:50/35KA |
EKM8-400H-4-0350 | Thermisch-magnetischer Typ MCCB 4P 350A ICU/ICS:50/35KA |
EKM8-400H-4-0400 | Thermisch-magnetischer Typ MCCB 4P 400A ICU/ICS:50/35KA |
EKM8-630H-3-0250 | Thermisch-magnetischer Typ MCCB 3P 250A ICU/ICS:50/35KA |
EKM8-630H-3-0315 | Thermomagnetischer Typ MCCB 3P 315A ICU/ICS:50/35KA |
EKM8-630H-3-0350 | Thermisch-magnetischer Typ MCCB 3P 350A ICU/ICS:50/35KA |
EKM8-630H-3-0400 | Thermisch-magnetischer Typ MCCB 3P 400A ICU/ICS:50/35KA |
EKM8-630H-3-0500 | Thermisch-magnetischer Typ MCCB 3P 500A ICU/ICS:50/35KA |
EKM8-630H-3-0630 | Thermisch-magnetischer Typ MCCB 3P 630A ICU/ICS:50/35KA |
EKM8-630H-4-0250 | Thermisch-magnetischer Typ MCCB 4P 250A ICU/ICS:50/35KA |
EKM8-630H-4-0315 | Thermomagnetischer Typ MCCB 4P 315A ICU/ICS:50/35KA |
EKM8-630H-4-0350 | Thermisch-magnetischer Typ MCCB 4P 350A ICU/ICS:50/35KA |
EKM8-630H-4-0400 | Thermisch-magnetischer Typ MCCB 4P 400A ICU/ICS:50/35KA |
EKM8-630H-4-0500 | Thermisch-magnetischer Typ MCCB 4P 500A ICU/ICS:50/35KA |
EKM8-630H-4-0630 | Thermisch-magnetischer Typ MCCB 4P 630A ICU/ICS:50/35KA |
EKM8-800H-3-0500 | Thermisch-magnetischer Typ MCCB 3P 500A ICU/ICS:65/50KA |
EKM8-800H-3-0630 | Thermisch-magnetischer Typ MCCB 3P 630A ICU/ICS:65/50KA |
EKM8-800H-3-0700 | Thermisch-magnetischer Typ MCCB 3P 700A ICU/ICS:65/50KA |
EKM8-800H-3-0800 | Thermisch-magnetischer Typ MCCB 3P 800A ICU/ICS:65/50KA |
EKM8-800H-4-0500 | Thermisch-magnetischer Typ MCCB 4P 500A ICU/ICS:65/50KA |
EKM8-800H-4-0630 | Thermisch-magnetischer Typ MCCB 4P 630A ICU/ICS:65/50KA |
EKM8-800H-4-0700 | Thermisch-magnetischer Typ MCCB 4P 700A ICU/ICS:65/50KA |
EKM8-800H-4-0800 | Thermisch-magnetischer Typ MCCB 4P 800A ICU/ICS:65/50KA |
EKM8-1250H-3-0800 | Thermisch-magnetischer Typ MCCB 3P 800A ICU/ICS:65/50KA |
EKM8-1250H-3-1000 | Thermisch-magnetischer Typ MCCB 3P 1000A ICU/ICS:65/50KA |
EKM8-1250H-3-1250 | Thermisch-magnetischer Typ MCCB 3P 1250A ICU/ICS:65/50KA |
EKM8-1250H-4-0800 | Thermisch-magnetischer Typ MCCB 4P 800A ICU/ICS:65/50KA |
EKM8-1250H-4-1000 | Thermisch-magnetischer Typ MCCB 4P 1000A ICU/ICS:65/50KA |
EKM8-1250H-4-1250 | Thermomagnetischer Typ MCCB 4P 1250A ICU/ICS:65/50KA |
