Die einstellbaren Kompaktleistungsschalter der Serie EKM8T werden nach Weltklasse-Standards entwickelt und hergestellt. Bieten Überlast- und Kurzschlussschutz für alle Anwendungen. Die breitbandig einstellbaren Thermoelemente machen diese MCCBs ideal für jede Verteilungsanwendung.
20A bis 1250A in 6 Baugrößen in dreipoliger und vierpoliger Ausführung mit Schalter.
Kompakte Abmessungen
Einstellbare thermische Einstellung (70-100 %) In.
Push-to-Trip-Knopf-Bereitstellung.
Haupt- und Lichtbogenkontakte getrennt
Umfangreiches Zubehör.
EKM8 | T | 160 | H | |||
↓ | ↓ | ↓ | ↓ | |||
Produktcode | Einstellbarer Typ | Code der aktuellen Rahmengröße | Ausschaltvermögen ICU/ICS (kA) | |||
Kompaktleistungsschalter (MCCB) | T: thermomagnetisch einstellbar T/A: einzeln einstellbar (dh thermisch einstellbar \Magnetisch fixiert) | 160, 250, 400, 630, 800 Notiz: 160 ist ein verbesserter Typ von 100 Rahmen 225 ist ein verbesserter Typ des 250-Rahmens 630 ist ein verbesserter Typ des 400-Rahmens | S | H | ||
160 | 25/18 | 35/25 | ||||
250 | 25/18 | 35/25 | ||||
400 | 35/25 | 50/35 | ||||
630 | 35/25 | 50/35 | ||||
1250 | 50/35 | 65/50 | ||||
H-Hochleistung 70KA |
Z | 3 | 300 | 160 |
↓ | ↓ | ↓ | ↓ |
Code der Betriebsart | Polzahl | Code des Freigabetyps und des internen Zubehörs | Nennstrom (A) |
P: elektrischer Betrieb Z: Drehgriff W: Direktbetrieb ①Elektrischer Betrieb DC1, DC2, DC3 | 3: 3-polig 4: 4-polig | Die erste Ziffer steht für den Freigabetyp 2: Hat nur sofortige Freigabe 3: Komplexe Freisetzung Notiz: Später zwei Ziffern sind der Code von Zubehör (siehe Zubehörtabelle 1) | 160 20-25,25-32,32-40,40-50,50-63, 63-80,80-100,100-125,125-160 250 100-125, 125-160, 160-200, 200-250 400 200-250, 250-320, 320-400 630 400-500, 500-630 1250 630-800, 800-1000, 1000-1250 |
2 | A |
↓ | ↓ |
Anwendung | Code des vierpoligen Produkts |
1: Stromverteilung 2: Motorschutz | A: N-Pol ohne Schutz, kann nicht schließen oder öffnen B: N-Pol ohne Schutz, kann schließen und öffnen C: N-Pol mit Schutz, kann schließen und öffnen D: N-Pol mit Schutz, kann nicht schließen oder öffnen |
Q1 | D1 | Q | 2 | |||
↓ | ↓ | ↓ | ↓ | |||
Zubehörspannung | Elektrische Betriebsspannung | Installationsmethoden | Verkabelung installieren Bord oder nicht | |||
Q1: AC220V | F1: AC220V | J1: AC125V | D1: AC220V | D5: AC230V | F: Frontplatte H: Rückwand C: Plug-in-Typ | 1: Nein 2: Ja |
Q2: AC240V | F2: AC380V | J2: AC250V | D2: AC230V | D6: AC110V | ||
Q3: AC380V | F3: DC110V | J3: DC125V | D3: AC380V | D7: DC220 | ||
Q4: AC415V | F4: DC24V | J4: DC24V | D4: AC400V | D8: DC110 | ||
D9: AC110-240V | ||||||
D10: DC100-220V | ||||||
Notiz: Anpassbare Spannungen für zwei Elektriken Operationen. Bitte wende dich an die Einführung von externem Zubehör |
Rahmenstrom (A) | 160 | 250 | |||||
Modell | EKM8T-160S | EKM8T-160H | EKM8T-250S | EKM8T-250H | |||
Polzahl | 3, 4 | 3, 4 | |||||
Nennstrom (A) | 20-25, 25-32, 32-40, 40-50, 50-63, 63-80,80-100, 100-125A, 125-160A | 100-125, 125-160, 160-200, 200-250A | |||||
Nennspannung (V) | AC400V | AC400V | |||||
Nennisolationsspannung (V) | AC1000V | AC1000V | |||||
Kurzschlussausschaltvermögen (KA)Icu/Ics | AC400V | 25/18 | 35/25 | 25/18 | 35/25 | ||
Betriebszyklusnummer | Elektrisches Leben | 3000 | 3000 | ||||
Mechanische Lebensdauer | 7000 | 7000 | |||||
Außenmaß (mm) abc-ca | |||||||
3P | 90-155-68-90 | 90-155-88-115 | 105-165-68-92 | 105-165-88-115 | |||
4P | 120-155-68-90 | 120-155-88-115 | 140-165-68-92 | 140-165-88-115 | |||
Gewicht (kg) | 3P | 1 | 1.1 | 1.5 | 1.7 | ||
4P | 1.1 | 1.7 | 1.9 | 2.1 | |||
Elektrisches Betriebsgerät (MD) | ● | ||||||
Externer Fahrgriff | ● | ||||||
Automatische Freigabe | Thermischer elektromagnetischer Typ |
Rahmenstrom (A) | 400 | 630 | 1250 | ||||
Modell | EKM8T-400S | EKM8T-400H | EKM8T-630S | EKM8T-630H | EKM8T-1250S | EKM8T-1250H | |
Polzahl | 3, 4 | 3, 4 | 3, 4 | ||||
Nennstrom (A) | 200-250, 250-320, 320-400 | 400-500, 500-630 | 630-800, 800-1250 | ||||
Nennspannung (V) | AC400V | AC400V | AC400V | ||||
Nennisolationsspannung (V) | AC1000V | AC1000V | AC1000V | ||||
Kurzschlussausschaltvermögen (KA)Icu/Ics | AC400V | 35/25 | 50/35 | 35/25 | 50/35 | 50/35 | 65/50 |
Betriebszyklusnummer | Elektrisches Leben | 2000 | 2000 | 1500 | |||
Mechanische Lebensdauer | 4000 | 4000 | 4000 | ||||
Umrissmaß (mm) abc-ca | |||||||
3P | 140-257-103-155 | 140-257-103-155 | 210-275-103-155 | ||||
4P | 185-257-103-155 | 185-257-103-155 | 280-275-103-155 | ||||
Gewicht (kg) | 3P | 5.5 | 5.7 | 9.5 | |||
4P | 7 | 7.5 | 12.5 | ||||
Elektrischer Betrieb Gerät (MD) | ● | ||||||
Externes Fahren Bediengriff | ● | ||||||
Automatische Freigabe | Thermischer elektromagnetischer Typ |
Referenznummer. | Spezifikation |
EKM8T-125S-3-025 | Thermisch-magnetischer TA Typ MCCB 3P 20-25A ICU/ICS:18/15KA |
EKM8T-125S-3-032 | Thermisch-magnetischer TA Typ MCCB 3P 25,6-32A ICU/ICS:18/15KA |
EKM8T-125S-3-040 | Thermisch-magnetischer TA Typ MCCB 3P 32-40A ICU/ICS:18/15KA |
EKM8T-125S-3-050 | Thermisch-magnetischer TA Typ MCCB 3P 40-50A ICU/ICS:18/15KA |
EKM8T-125S-3-063 | Thermisch-magnetischer TA Typ MCCB 3P 50,4-63A ICU/ICS:18/15KA |
EKM8T-125S-3-080 | Thermisch-magnetischer TA Typ MCCB 3P 64-80A ICU/ICS:18/15KA |
EKM8T-125S-3-100 | Thermisch-magnetischer TA Typ MCCB 3P 80-100A ICU/ICS:18/15KA |
EKM8T-125S-3-125 | Thermisch-magnetischer TA Typ MCCB 3P 100-125A ICU/ICS:18/15KA |
EKM8T-125S-4-025 | Thermisch-magnetischer TA Typ MCCB 4P 20-25A ICU/ICS:18/15KA |
EKM8T-125S-4-032 | Thermisch-magnetischer TA Typ MCCB 4P 25,6-32A ICU/ICS:18/15KA |
EKM8T-125S-4-040 | Thermisch-magnetischer TA Typ MCCB 4P 32-40A ICU/ICS:18/15KA |
EKM8T-125S-4-050 | Thermisch-magnetischer TA Typ MCCB 4P 40-50A ICU/ICS:18/15KA |
EKM8T-125S-4-063 | Thermisch-magnetischer TA Typ MCCB 4P 50,4-63A ICU/ICS:18/15KA |
EKM8T-125S-4-080 | Thermisch-magnetischer TA Typ MCCB 4P 64-80A ICU/ICS:18/15KA |
EKM8T-125S-4-100 | Thermisch-magnetischer TA Typ MCCB 4P 80-100A ICU/ICS:18/15KA |
EKM8T-125S-4-125 | Thermisch-magnetischer TA Typ MCCB 4P 100-125A ICU/ICS:18/15KA |
EKM8T-160S-3-025 | Thermisch-magnetischer TMA Typ MCCB 3P 20-25A ICU/ICS:25/18KA |
EKM8T-160S-3-032 | Thermisch-magnetischer TMA Typ MCCB 3P 25.6-32A ICU/ICS:25/18KA |
EKM8T-160S-3-040 | Thermisch-magnetischer TMA Typ MCCB 3P 32-40A ICU/ICS:25/18KA |
EKM8T-160S-3-050 | Thermisch-magnetischer TMA Typ MCCB 3P 40-50A ICU/ICS:25/18KA |
EKM8T-160S-3-063 | Thermisch-magnetischer TMA Typ MCCB 3P 50,4-63A ICU/ICS:25/18KA |
EKM8T-160S-3-080 | Thermisch-magnetischer TMA Typ MCCB 3P 64-80A ICU/ICS:25/18KA |
EKM8T-160S-3-100 | Thermisch-magnetischer TMA Typ MCCB 3P 80-100A ICU/ICS:25/18KA |
EKM8T-160S-3-125 | Thermisch-magnetischer TMA Typ MCCB 3P 100-125A ICU/ICS:25/18KA |
EKM8T-160S-3-160 | Thermisch-magnetischer TMA Typ MCCB 3P 128-160A ICU/ICS:25/18KA |
EKM8T-160S-4-025 | Thermomagnetischer TMA Typ MCCB 4P 20-25A ICU/ICS:25/18KA |
EKM8T-160S-4-032 | Thermisch-magnetischer TMA Typ MCCB 4P 25,6-32A ICU/ICS:25/18KA |
EKM8T-160S-4-040 | Thermomagnetischer TMA Typ MCCB 4P 32-40A ICU/ICS:25/18KA |
EKM8T-160S-4-050 | Thermisch-magnetischer TMA Typ MCCB 4P 40-50A ICU/ICS:25/18KA |
EKM8T-160S-4-063 | Thermisch-magnetischer TMA Typ MCCB 4P 50,4-63A ICU/ICS:25/18KA |
EKM8T-160S-4-080 | Thermisch-magnetischer TMA Typ MCCB 4P 64-80A ICU/ICS:25/18KA |
EKM8T-160S-4-100 | Thermisch-magnetischer TMA Typ MCCB 4P 80-100A ICU/ICS:25/18KA |
EKM8T-160S-4-125 | Thermisch-magnetischer TMA Typ MCCB 4P 100-125A ICU/ICS:25/18KA |
EKM8T-160S-4-160 | Thermisch-magnetischer TMA Typ MCCB 4P 128-160A ICU/ICS:25/18KA |
EKM8T-160H-3-025 | Thermisch-magnetischer TMA Typ MCCB 3P 20-25A ICU/ICS:35/25KA |
EKM8T-160H-3-032 | Thermisch-magnetischer TMA Typ MCCB 3P 25,6-32A ICU/ICS:35/25KA |
EKM8T-160H-3-040 | Thermisch-magnetischer TMA Typ MCCB 3P 32-40A ICU/ICS:35/25KA |
EKM8T-160H-3-050 | Thermisch-magnetischer TMA Typ MCCB 3P 40-50A ICU/ICS:35/25KA |
EKM8T-160H-3-063 | Thermisch-magnetischer TMA Typ MCCB 3P 50,4-63A ICU/ICS:35/25KA |
EKM8T-160H-3-080 | Thermisch-magnetischer TMA Typ MCCB 3P 64-80A ICU/ICS:35/25KA |
EKM8T-160H-3-100 | Thermisch-magnetischer TMA Typ MCCB 3P 80-100A ICU/ICS:35/25KA |
EKM8T-160H-3-125 | Thermisch-magnetischer TMA Typ MCCB 3P 100-125A ICU/ICS:35/25KA |
EKM8T-160H-3-160 | Thermisch-magnetischer TMA Typ MCCB 3P 128-160A ICU/ICS:35/25KA |
EKM8T-160H-4-025 | Thermisch-magnetischer TMA Typ MCCB 4P 20-25A ICU/ICS:35/25KA |
EKM8T-160H-4-032 | Thermisch-magnetischer TMA Typ MCCB 4P 25,6-32A ICU/ICS:35/25KA |
EKM8T-160H-4-040 | Thermisch-magnetischer TMA Typ MCCB 4P 32-40A ICU/ICS:35/25KA |
EKM8T-160H-4-050 | Thermisch-magnetischer TMA Typ MCCB 4P 40-50A ICU/ICS:35/25KA |
EKM8T-160H-4-063 | Thermisch-magnetischer TMA Typ MCCB 4P 50,4-63A ICU/ICS:35/25KA |
EKM8T-160H-4-080 | Thermisch-magnetischer TMA Typ MCCB 4P 64-80A ICU/ICS:35/25KA |
EKM8T-160H-4-100 | Thermisch-magnetischer TMA Typ MCCB 4P 80-100A ICU/ICS:35/25KA |
EKM8T-160H-4-125 | Thermisch-magnetischer TMA Typ MCCB 4P 100-125A ICU/ICS:35/25KA |
EKM8T-160H-4-160 | Thermisch-magnetischer TMA Typ MCCB 4P 128-160A ICU/ICS:35/25KA |
EKM8T-250S-3-125 | Thermisch-magnetischer TMA Typ MCCB 3P 100-125A ICU/ICS:25/18KA |
EKM8T-250S-3-160 | Thermisch-magnetischer TMA Typ MCCB 3P 128-160A ICU/ICS:25/18KA |
EKM8T-250S-3-200 | Thermisch-magnetischer TMA Typ MCCB 3P 160-200A ICU/ICS:25/18KA |
EKM8T-250S-3-250 | Thermisch-magnetischer TMA Typ MCCB 3P 200-250A ICU/ICS:25/18KA |
EKM8T-250S-4-125 | Thermisch-magnetischer TMA Typ MCCB 4P 100-125A ICU/ICS:25/18KA |
EKM8T-250S-4-160 | Thermisch-magnetischer TMA Typ MCCB 4P 128-160A ICU/ICS:25/18KA |
EKM8T-250S-4-200 | Thermisch-magnetischer TMA Typ MCCB 4P 160-200A ICU/ICS:25/18KA |
EKM8T-250S-4-250 | Thermisch-magnetischer TMA Typ MCCB 4P 200-250A ICU/ICS:25/18KA |
EKM8T-250H-3-125 | Thermisch-magnetischer TMA Typ MCCB 3P 100-125A ICU/ICS:35/25KA |
EKM8T-250H-3-160 | Thermisch-magnetischer TMA Typ MCCB 3P 128-160A ICU/ICS:35/25KA |
EKM8T-250H-3-200 | Thermisch-magnetischer TMA Typ MCCB 3P 160-200A ICU/ICS:35/25KA |
EKM8T-250H-3-250 | Thermisch-magnetischer TMA Typ MCCB 3P 200-250A ICU/ICS:35/25KA |
EKM8T-250H-4-125 | Thermisch-magnetischer TMA Typ MCCB 4P 100-125A ICU/ICS:35/25KA |
EKM8T-250H-4-160 | Thermisch-magnetischer TMA Typ MCCB 4P 128-160A ICU/ICS:35/25KA |
EKM8T-250H-4-200 | Thermisch-magnetischer TMA Typ MCCB 4P 160-200A ICU/ICS:35/25KA |
EKM8T-250H-4-250 | Thermisch-magnetischer TMA Typ MCCB 4P 200-250A ICU/ICS:35/25KA |
EKM8T-400H-3-250 | Thermisch-magnetischer TMA Typ MCCB 3P 200-250A ICU/ICS:50/35KA |
EKM8T-400H-3-320 | Thermisch-magnetischer TMA Typ MCCB 3P 256-320A ICU/ICS:50/35KA |

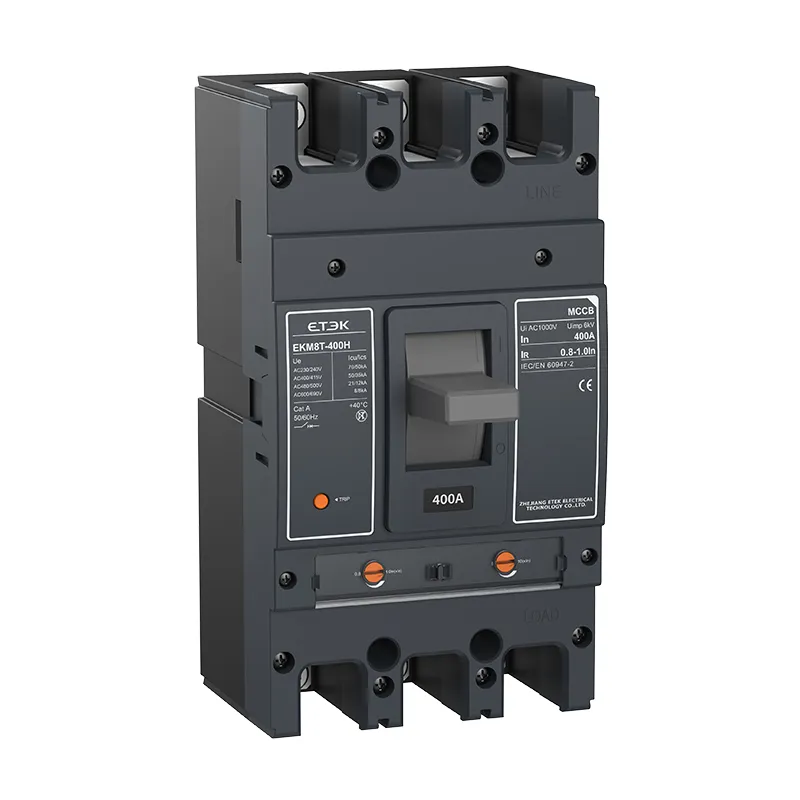

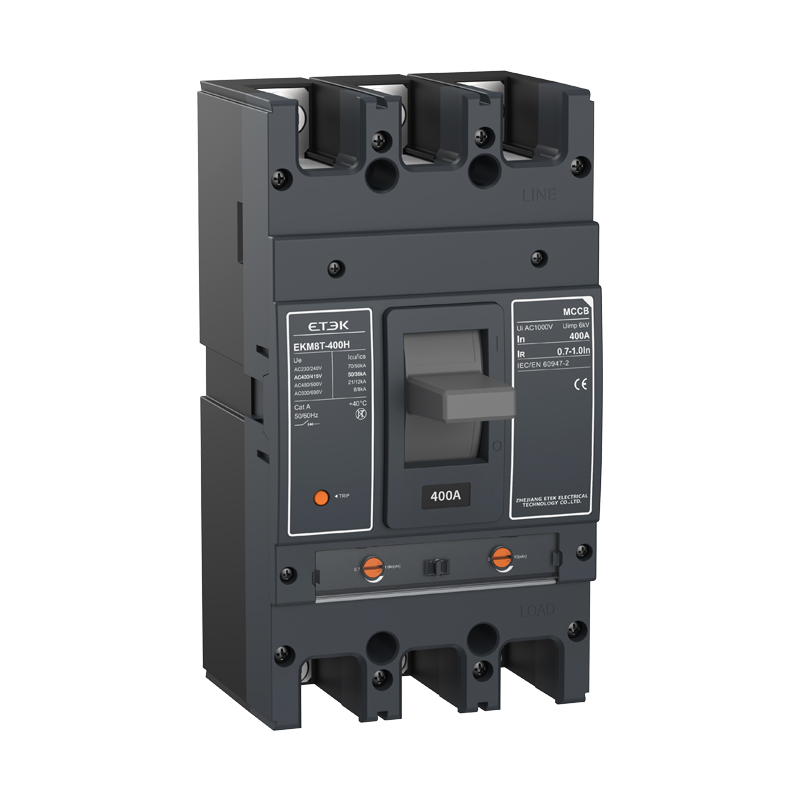

EKM8T-400H-3-400 | Thermisch-magnetischer TMA Typ MCCB 3P 320-400A ICU/ICS:50/35KA |
EKM8T-400H-4-250 | Thermisch-magnetischer TMA Typ MCCB 4P 200-250A ICU/ICS:50/35KA |
EKM8T-400H-4-320 | Thermisch-magnetischer TMA Typ MCCB 4P 256-320A ICU/ICS:50/35KA |
EKM8T-400H-4-400 | Thermisch-magnetischer TMA Typ MCCB 4P 320-400A ICU/ICS:50/35KA |
EKM8T-630H-3-500 | Thermisch-magnetischer TMA Typ MCCB 3P 400-500A ICU/ICS:50/35KA |

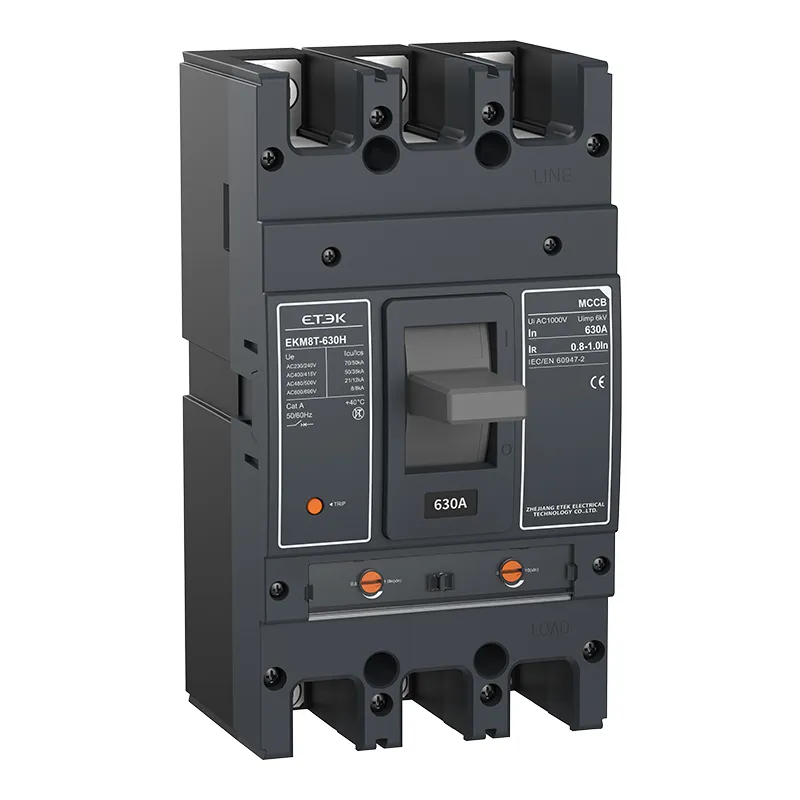

EKM8T-630H-3-630 | Thermisch-magnetischer TMA Typ MCCB 3P 504-630A ICU/ICS:50/35KA |
EKM8T-630H-4-500 | Thermisch-magnetischer TMA Typ MCCB 4P 400-500A ICU/ICS:50/35KA |
EKM8T-630H-4-630 | Thermisch-magnetischer TMA Typ MCCB 4P 504-630A ICU/ICS:50/35KA |
EKM8T-800H-3-630 | Thermisch-magnetischer TMA Typ MCCB 3P 504-630A ICU/ICS:65/50KA |

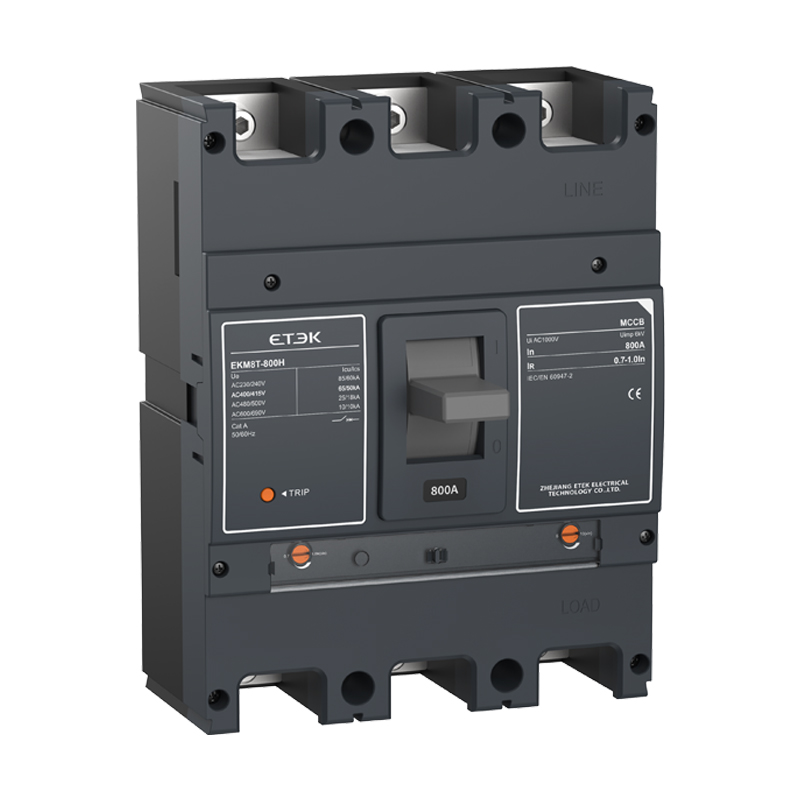

EKM8T-800H-3-800 | Thermisch-magnetischer TMA Typ MCCB 3P 640-800A ICU/ICS:65/50KA |
EKM8T-800H-4-630 | Thermisch-magnetischer TMA Typ MCCB 4P 504-630A ICU/ICS:65/50KA |
EKM8T-800H-4-800 | Thermomagnetischer TMA Typ MCCB 4P 640-800A ICU/ICS:65/50KA |
